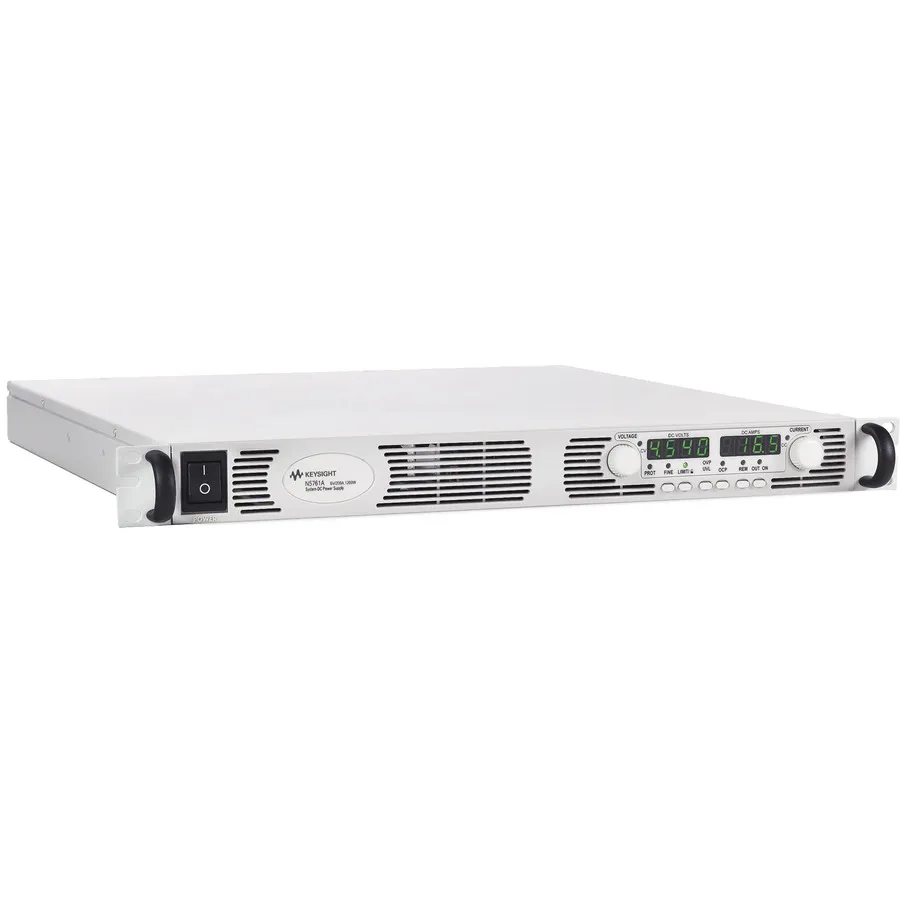

Keysight N5761A/861 DC System Power Supply
Request a quote
Keysight N5761A/861 is a 6V, 180A single-output DC power supply in a compact 1U package with GPIB, LAN, USB connectivity, and LXI compliance.
Product details
| Model | N5761A/861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5761A/861 is a single-output DC power supply designed for automated test equipment and laboratory applications. It delivers 0-6V at 0-180A (1080W) in a compact 1U package, offering universal AC input, GPIB, LAN, and USB connectivity with LXI compliance.
Key Features
- Output: 0-6V at 0-180A (1080W)
- Universal AC input: 100-200 VAC with power factor correction (0.99 typ.)
- Compact 1U package with high power density
- Constant voltage/constant current operation
- Over-voltage, overcurrent, and temperature protection
- Independent remote on/off and enable/disable control
- 15 store/recall states for custom settings
- Rotary encoders for voltage and current adjustment
- GPIB, LAN, USB interfaces included
- Built-in web server for remote monitoring and control
- Fully compliant to LXI Class C
- Front-to-back airflow design for simplified rack mounting
- Supports parallel connection of up to 4 units for higher power
Applications
- Automated test equipment (ATE) systems
- Laboratory testing and development
- Device characterization and validation
- Production line testing
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 6 V |
| Current Range Selector | 100-199 |
| Output Current | 180 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.08 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | N5700 Series |
| Display | Digital |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Unterminated Power Cord |
