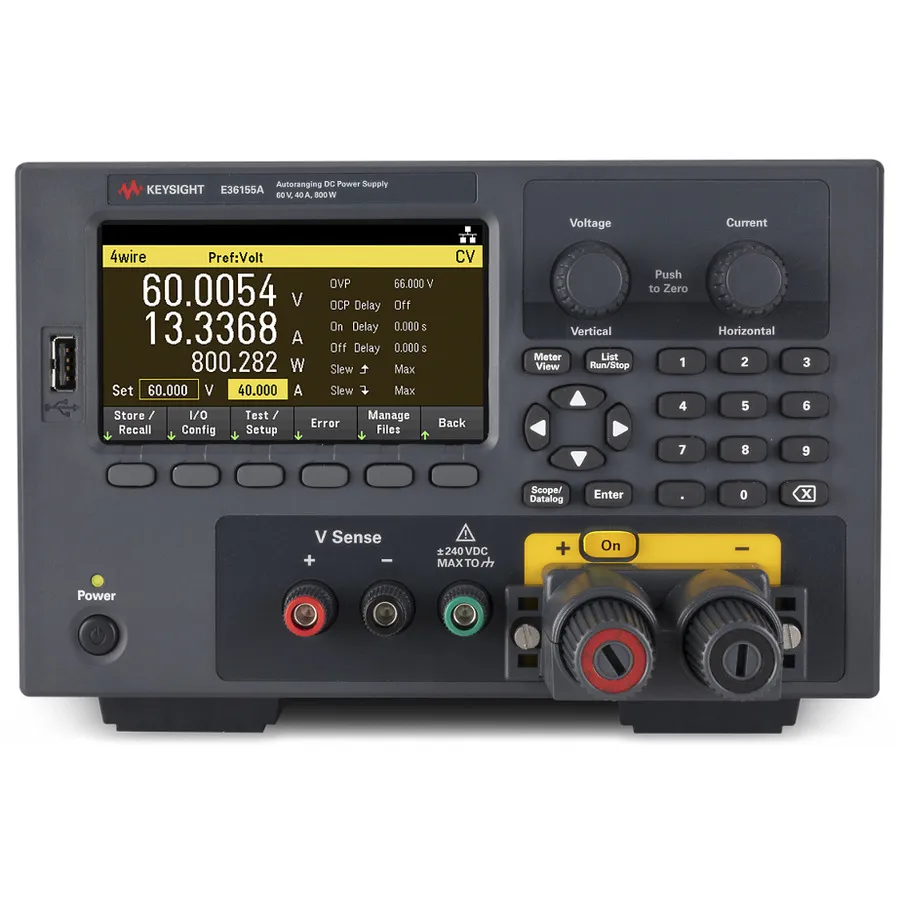

Keysight E36155AGVX 60V/40A Power Supply Bundle

Overview

The Keysight E36155AGVX is a 60V/40A/800W autoranging DC power supply bundle combining Scope View, arbitrary waveform generation, and automotive ISO standards testing capabilities. Designed for comprehensive test applications, this power supply features integrated oscilloscope functions, advanced waveform generation for transient simulation, and automotive-specific preset libraries for ISO16750 and ISO7637 compliance testing with enhanced programming speed.

Key Features

• 60V/40A/800W autoranging output with peak power handling up to 2400W for transient simulation
• Scope View with 10 µs/100 kHz sampling rate and 256K sample buffer for real-time analysis
• Arbitrary Waveform Generation supporting multiple waveform types with up to 512 setpoints
• Automotive ISO16750 and ISO7637 preset libraries for standardized component testing
• Enhanced programming speed up to 7.5x faster for rapid automotive transient generation
• E-logging with concurrent voltage and current measurement recording at 1 ms intervals
• 4-wire remote sensing with accurate voltage compensation and lead drop correction
• Detachable high-current front binding posts with IEC61010 compliance
• Low ripple and noise with excellent regulation across load and line variations
• Over-voltage, over-current, and over-temperature protection with automatic shutdown
• Connectivity: USB, LAN, GPIB (upgrade)
• 3U half-rack form factor for bench or rack installation

Applications

• Automotive component testing with ISO standards compliance
• Aerospace and defense equipment testing and validation
• IC and semiconductor characterization
• General-purpose electronics development and testing
• Consumer electronics design validation
• Dynamic transient and peak power event simulation

Included Accessories

• AC power cord (country-specific)
• Detachable front binding posts
