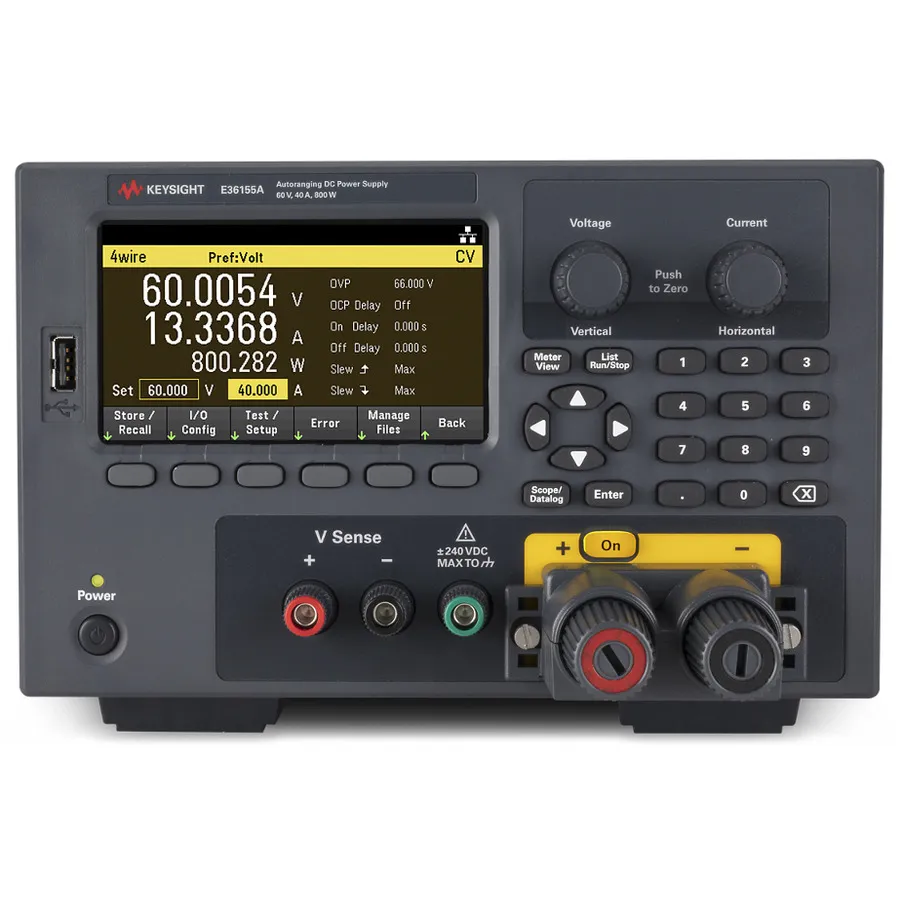

Keysight E36155AGV 60V/40A DC Power Supply Bundle
Request a quote
Keysight E36155AGV is a 60V/40A/800W autoranging DC power supply bundle featuring Scope View and arbitrary waveform generation for advanced testing applications.
Product details
| Model | E36155AGV |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36155AGV is a 60V/40A/800W autoranging DC power supply bundle designed for general-purpose test and characterization applications. This single-output power supply features integrated Scope View oscilloscope capabilities, arbitrary waveform generation (AWG), and PathWave BenchVue software. The autoranging architecture maximizes voltage-current combinations at maximum power, with peak power handling supporting up to 2400W for transient load events and electromechanical devices.
Key Features
- 60V/40A/800W autoranging output with peak power handling up to 2400W
- Scope View with 10 µs/100 kHz sampling rate and 256K sample buffer for transient analysis
- Arbitrary Waveform Generation with up to 512 setpoints supporting multiple waveform types
- 4-wire remote sensing for accurate voltage measurement and lead compensation
- Detachable high-current front binding posts with IEC61010 safety compliance
- Low output ripple and noise with excellent line and load regulation
- Over-voltage, over-current, and over-temperature protection
- Data logging with built-in memory and front USB host connectivity
- Connectivity: USB, LAN, GPIB (upgrade option)
- 3U half-rack form factor for bench or rack mounting
- Adjustable voltage slew rate to control inrush current
- Output sequencing and synchronization with triggers
Applications
- IC and semiconductor component characterization
- General-purpose electronics development and testing
- Consumer electronics design validation
- Research and development testing
- Dynamic transient analysis for device under test
Included Accessories
- AC power cord (country-specific)
- Detachable front binding posts
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 30-49.9 |
| Output Current | 40 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
