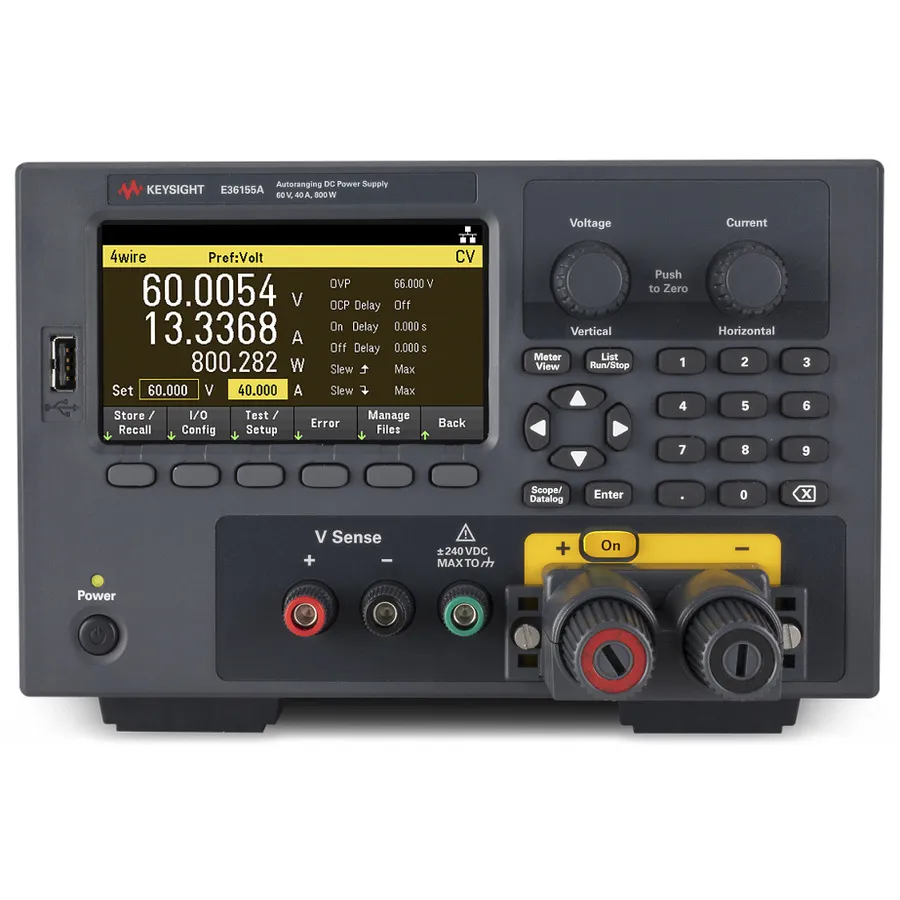

Keysight E36155ABVX 60V/40A Power Supply Bundle
Keysight E36155ABVX is a 60V/40A/800W autoranging DC power supply bundle with Scope View, arbitrary waveform generation, and automotive ISO testing capabilities.
Product details
| Model | E36155ABVX |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36155ABVX is a 60V/40A/800W autoranging DC power supply bundle designed for advanced test and characterization applications. This single-output power supply features integrated Scope View oscilloscope capabilities, arbitrary waveform generation (AWG), automotive ISO standards testing, and PathWave BenchVue software for comprehensive bench-top and automated testing. The autoranging architecture maximizes voltage-current combinations at maximum power, with peak power handling supporting up to 2400W for transient load events and electromechanical components.
Key Features
- 60V/40A/800W autoranging output with peak power handling up to 2400W for transient loads
- Scope View with 10 µs/100 kHz sampling rate and 256K sample buffer for transient analysis
- Arbitrary Waveform Generation with up to 512 setpoints supporting sine, step, ramp, staircase, pulse, trapezoid, and exponential waveforms
- Enhanced programming speed up to 7.5x faster for automotive ISO testing compliance
- Built-in automotive ISO16750 and ISO7637 preset libraries with playback simulation
- E-logging with fast sampling up to 1 ms for concurrent voltage and current measurement
- 4-wire remote sensing for accurate voltage delivery and measurement with lead compensation
- Detachable high-current front binding posts with IEC61010 safety compliance
- Low output ripple and noise with excellent line and load regulation
- Over-voltage, over-current, and over-temperature protection with front panel lockout
- Connectivity: USB, LAN, GPIB (upgrade available)
- 3U half-rack form factor suitable for bench or rack-mount installation
Applications
- Automotive component testing with ISO standards compliance and validation
- Aerospace and defense testing and equipment validation
- IC and semiconductor component characterization
- General-purpose electronics development and testing
- Consumer electronics validation and characterization
- Dynamic transient analysis and peak power event simulation
Included Accessories
- AC power cord (country-specific)
- Detachable front binding posts
- PathWave BenchVue software suite
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 30-49.9 |
| Output Current | 40 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
