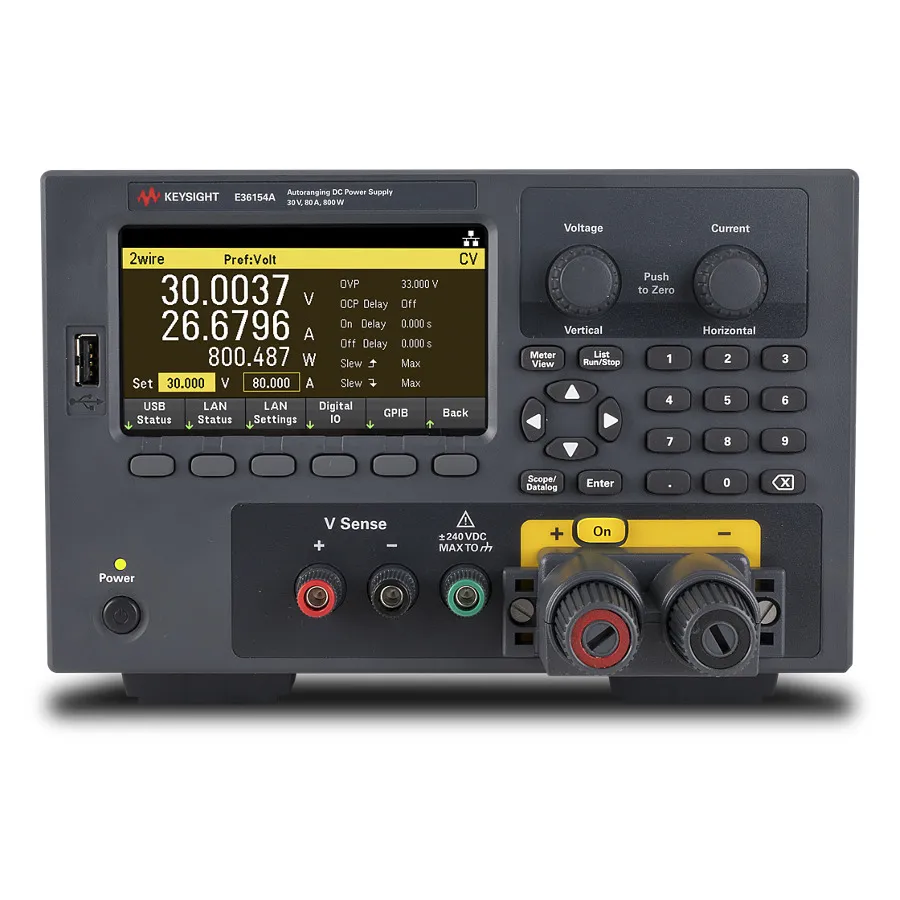

Keysight E36154AGVX DC Power Supply Bundle

Overview

The Keysight E36154AGVX is an advanced 800W autoranging DC power supply bundle designed specifically for automotive testing and characterization. Based on the E36154A (30V, 80A), it adds the E36150ADVU ScopeView module, arbitrary waveform generation, and the E36150ATMU automotive standards testing option which includes ISO preset libraries, enhanced programming speed (7.5x faster), and E-logging capabilities for compliance with ISO16750 and ISO7637 automotive power transient standards.

Key Features

• Autoranging architecture maximizes voltage-current combinations across 800W power envelope
• Peak power handling up to 2400W for managing vehicle electrical transients and load spikes
• ScopeView real-time oscilloscope with 100 kHz sampling rate and 256K sample memory
• Arbitrary waveform generation with up to 512 setpoints for complex power transient simulation
• Enhanced programming speed up to 7.5x faster for rapid voltage transitions required in automotive testing
• Built-in ISO16750 and ISO7637 preset waveforms (starting profile, reset behavior, motor regeneration, load dump)
• E-logging with 1 ms sampling rate for detailed voltage and current measurements during ISO tests
• 4-wire remote sensing for accurate power delivery and measurement
• Detachable high-current front binding posts with IEC61010 safety compliance
• Over-voltage, over-current, and over-temperature protection with automatic shutdown
• USB and LAN connectivity for data logging and remote control
• 3U half-rack form factor

Applications

• Automotive component validation against ISO16750 and ISO7637 standards
• Vehicle power system transient simulation and testing
• Motor and control module startup current characterization
• Load dump and voltage spike immunity validation
• Automotive supplier qualification testing

Included Accessories

• AC power cord (country-specific)
• Detachable front binding post
