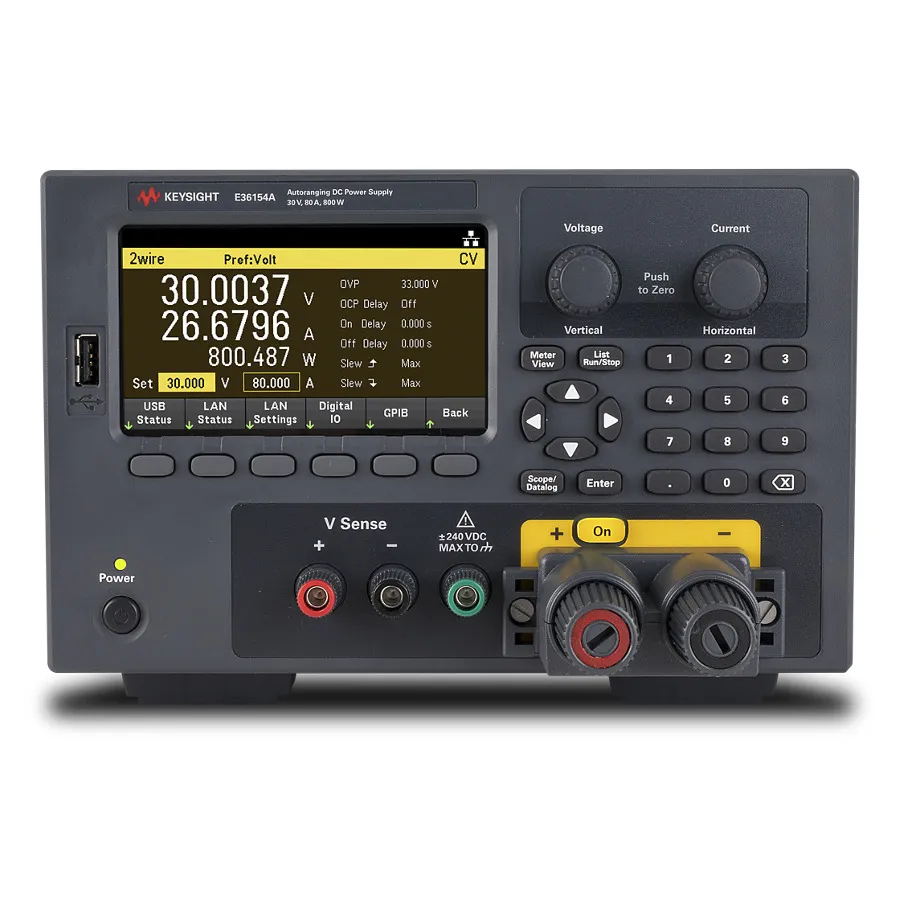

Keysight E36154AGV DC Power Supply Bundle

Overview

The Keysight E36154AGV is a comprehensive 800W autoranging DC power supply bundle designed for advanced power testing and characterization. Built on the high-performance E36154A (30V, 80A output), it includes integrated ScopeView oscilloscope capability and arbitrary waveform generation through the E36150ADVU module. This all-in-one solution combines precision power delivery with real-time analysis, eliminating the need for multiple instruments and reducing complexity in power testing applications.

Key Features

• Autoranging architecture enables flexible voltage-current combinations up to 800W maximum power
• Peak power handling capability up to 2400W for managing inrush currents and load transients
• Low output ripple and noise with excellent line and load regulation
• 4-wire remote sensing ensures accurate voltage delivery to the device under test
• ScopeView real-time oscilloscope with 100 kHz sampling rate and 256K sample capacity
• Arbitrary waveform generation with up to 512 setpoints and configurable dwell times
• Detachable high-current front binding posts (80A rated) with IEC61010 compliance and auto-protection
• Over-voltage, over-current, and over-temperature protection with automatic shutdown
• Built-in data logging with USB and LAN connectivity for remote monitoring
• Adjustable voltage slew rate to control inrush currents and protect sensitive devices
• 4.3-inch color LCD display with intuitive controls
• 3U half-rack form factor for benchtop or rack deployment

Applications

• Automotive component power transient testing and validation
• IC and semiconductor characterization
• Aerospace and defense equipment testing
• Consumer electronics power supply development
• General-purpose benchtop power testing and device verification

Included Accessories

• AC power cord (country-specific)
• Detachable front binding post
