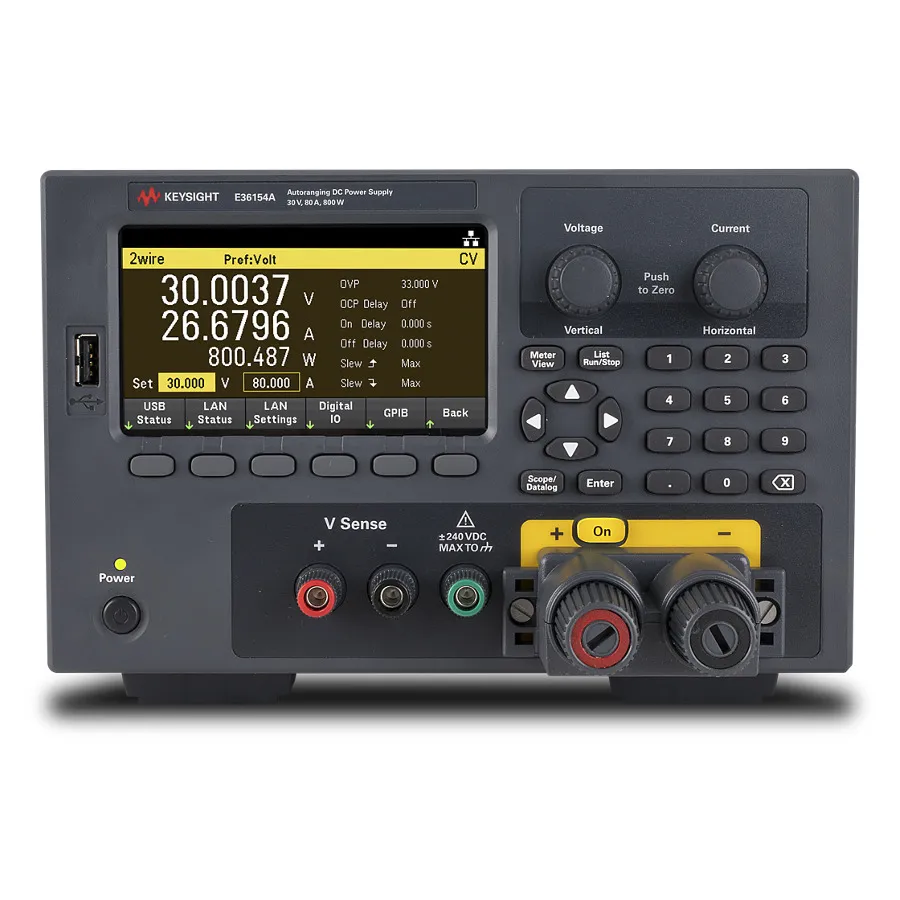

Keysight E36154ABVX Power Supply Bundle
Request a quote
Keysight E36154ABVX bundle combines 800W autoranging DC power supply with automotive standards testing, AWG, scope view, and BenchVue software.
Product details
| Model | E36154ABVX |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36154ABVX is an advanced power testing bundle designed for automotive and demanding applications. It combines the 800W E36154A autoranging DC power supply with scope view, arbitrary waveform generation, and automotive standards testing capabilities supporting ISO16750 and ISO7637 requirements.
Key Features
- E36154A autoranging DC power supply: 30V/80A, 800W
- Scope View with up to 100 kHz sampling rate
- Arbitrary Waveform Generation (AWG) supporting multiple waveform types
- Automotive standards testing (ISO16750 and ISO7637)
- Enhanced programming speed up to 7.5x faster for rapid transients
- Built-in automotive ISO preset library with standard waveforms
- E-logging with fast sampling rate up to 1 ms for voltage and current
- Support for complex waveforms up to 10,000 setpoints
- BenchVue advanced power control and analysis software
- Peak power handling up to 3X rating (2400W)
- Data logging with concurrent measurements
Applications
- Automotive power system validation and testing
- ISO16750 and ISO7637 compliance testing
- Motor regeneration and load dump simulation
- Component and subsystem characterization
- Vehicle electrical system development
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 50-99.9 |
| Output Current | 80 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
