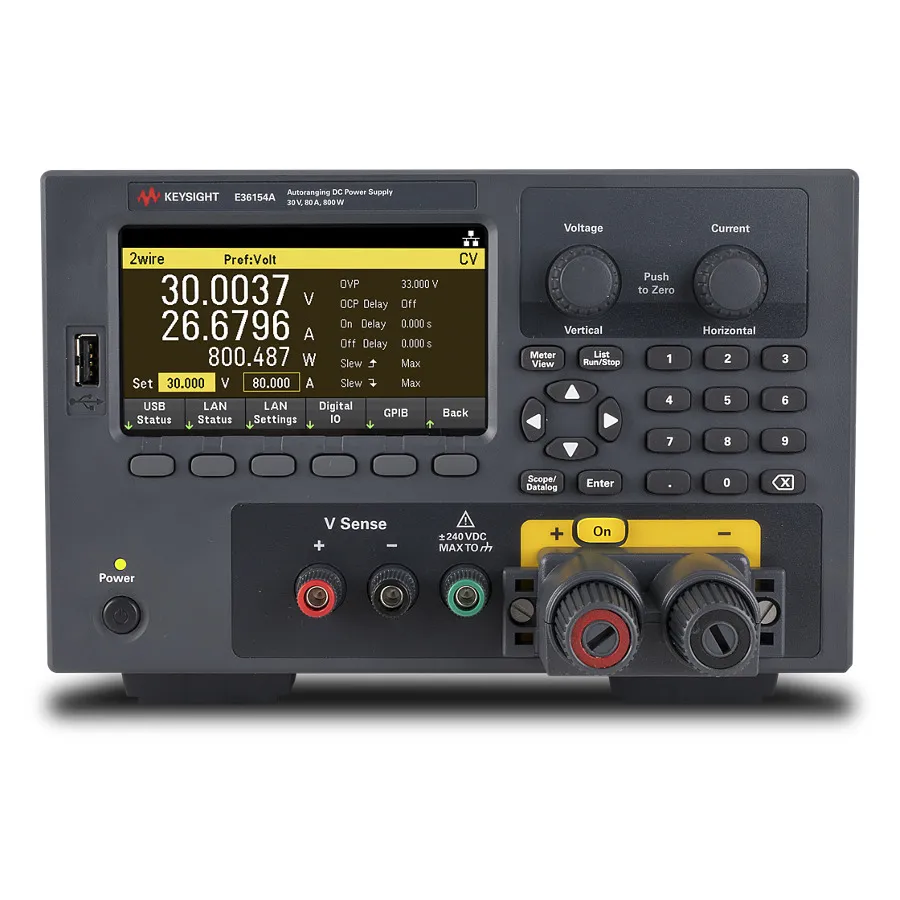

Keysight E36154ABV DC Power Supply Bundle
Request a quote
Keysight E36154ABV bundle combines 800W autoranging DC power supply with scope view, arbitrary waveform generation, and BenchVue software for advanced power testing.
Product details
| Model | E36154ABV |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36154ABV is a comprehensive power testing bundle that combines the 800W E36154A autoranging DC power supply with advanced characterization software and capabilities. It includes scope view functionality, arbitrary waveform generation, and BenchVue advanced control and analysis software for in-depth power analysis and device simulation.
Key Features
- E36154A autoranging DC power supply: 30V/80A, 800W
- Scope View with up to 100 kHz sampling rate and 256K sample memory
- Arbitrary Waveform Generation (AWG) with multiple waveform types
- BenchVue advanced power control and analysis software
- Data logging with automatic measurements
- Peak power handling up to 3X rating (2400W)
- Low output ripple and noise
- 2-wire and 4-wire remote sensing
- Over-voltage, over-current, and overtemperature protection
- 4.3-inch color LCD display with individual control knobs
Included Accessories
- AC power cord (based on destination country)
- Detachable front binding post
Applications
- Dynamic transient behavior analysis
- Device under test characterization and validation
- Power supply development and testing
- IC and component testing
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 50-99.9 |
| Output Current | 80 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 100-230 VAC |
| Series | E36150 Series |
| Display | 4.3 LCD Color |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Detachable High-Current Front Binding Post |
