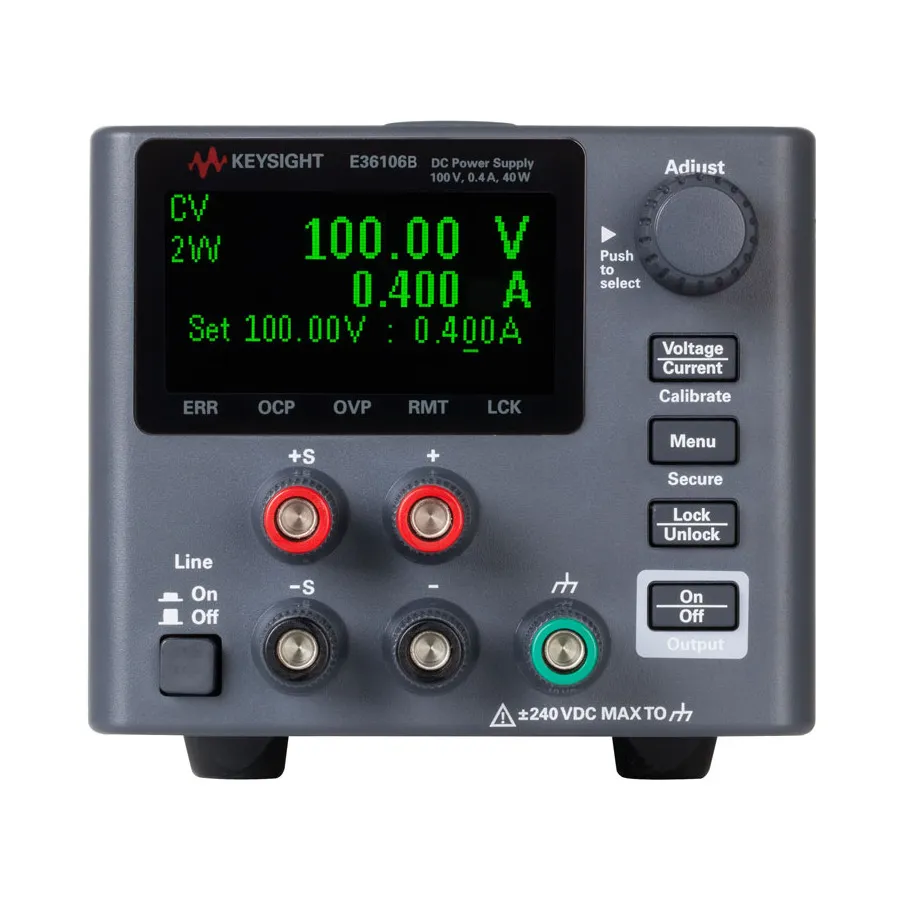

Keysight E36106B Single Output DC Power Supply

Overview

The Keysight E36106B is a compact, single-output DC power supply from the E36100B series, delivering 100V and 0.4A (40W) of stable power. The 2U 1/4-rack form factor and intuitive front-panel interface make it ideal for benchtop applications, lab work, and automated testing. With excellent voltage and current programming accuracy, built-in protections, and modern connectivity, the E36106B reliably powers devices under test (DUT) with confidence.

Key Features

• Single output: 100V, 0.4A, 40W
• Compact 2U 1/4-rack form factor
• High-contrast OLED display viewable from any angle
• LAN (LXI Core) and USB (TMC488) connectivity
• Overvoltage, overcurrent, and overtemperature protection
• Excellent programming and readback accuracy
• Front-panel rotary knob with digit-by-digit control
• Store and recall up to 10 complete power supply setups
• Built-in web interface for remote control via browser
• BenchVue software integration for multi-instrument control
• Low noise, stable output
• Input voltage: 100, 115, or 230 VAC (selectable via bottom panel switches)
• 3-year warranty

Applications

• Device under test (DUT) power for development and validation
• Bench testing and lab work
• Automated testing systems controlled via USB or LAN
• Low-power device characterization
