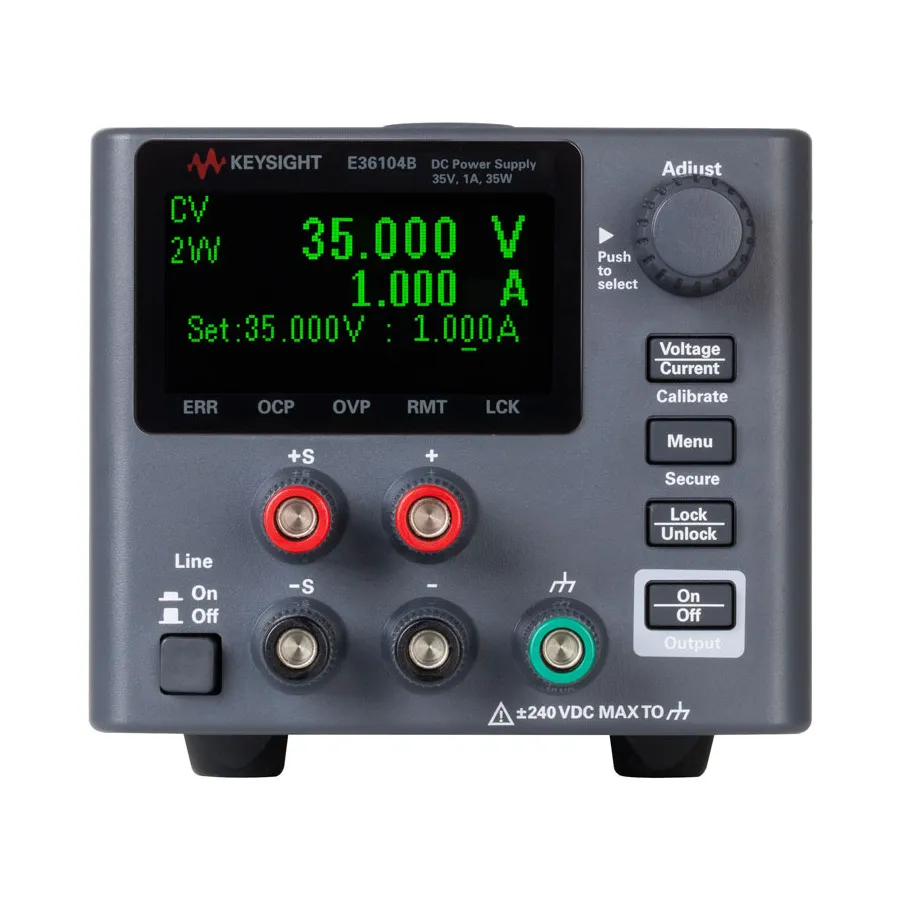

Keysight E36104B DC Power Supply
Request a quote
Keysight E36104B single-output 35V/1A/35W bench supply with OLED display, overvoltage/overcurrent protection, USB/LAN control, and 3-year warranty.
Product details
| Model | E36104B/0EM/903 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36104B is a single-output DC power supply delivering 35V/1A at 35W, housed in a compact 2U 1/4-rack form factor. It provides highly accurate voltage and current programming with built-in overvoltage, overcurrent, and overtemperature protection. The unit features a high-contrast OLED display for excellent visibility from any bench angle and includes both LAN (LXI Core) and USB (TMC488) connectivity for remote control and programmable operation.
Key Features
- Single-output: 0-35V, 0-1A, 35W
- Compact 2U 1/4-rack form factor
- Standard LAN (LXI Core) and USB connectivity
- Intuitive on-screen menu system for quick manual operation
- High-contrast OLED display viewable from any bench angle
- Built-in overvoltage and overcurrent detection
- Excellent programming accuracy and readback precision
- Quiet operation with low noise output
- Bottom panel switches for 100/115/230 volt operation configuration
- Store and recall up to 10 complete power supply setups
- Drop-in replacement for E36104A
- 3-year warranty
Applications
- Device under test (DUT) power delivery with precision protection
- Automated test systems via SCPI programming
- BenchVue software integration for multi-instrument control
- Mobile monitoring and control via BenchVue Mobile app
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 35 V |
| Current Range Selector | 0-2.49 |
| Output Current | 1 A |
| Power Range Selector | 1-199 |
| Power Rating | 35 W |
| Mounting Type | Bench Top |
| Input Voltage | 115 VAC |
| Series | E36100B Series |
| Display | OLED |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Low Current |
