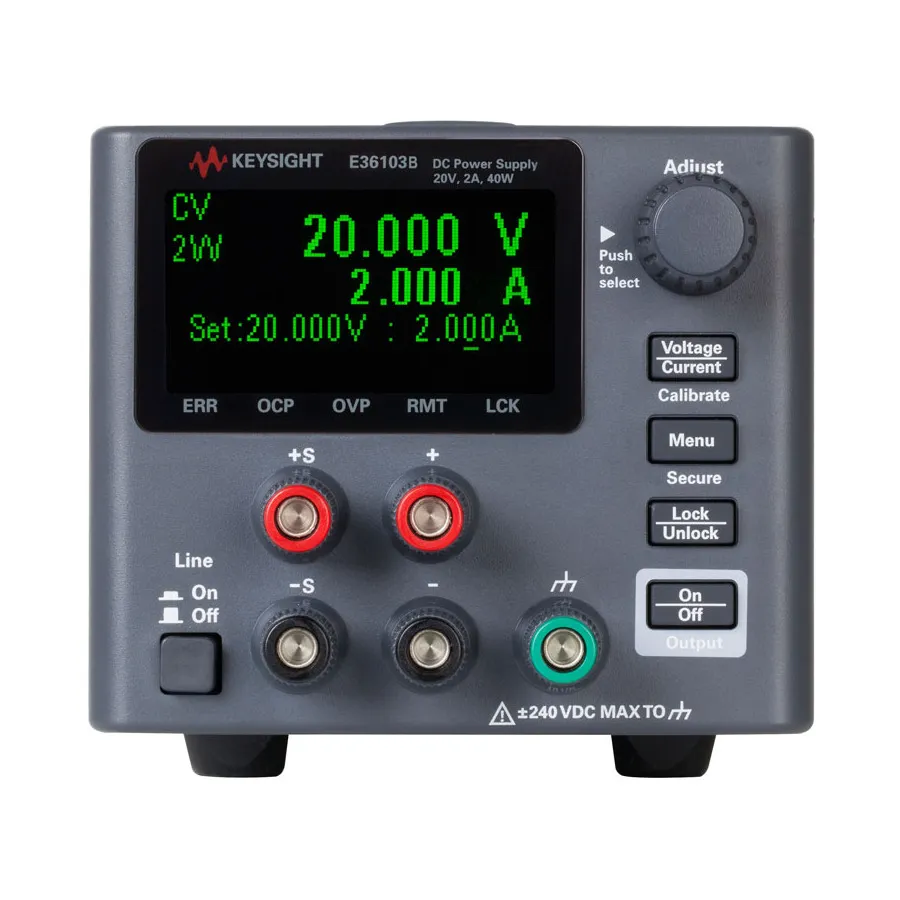

Keysight E36103B/0EM/903 DC Power Supply
Request a quote
Keysight E36103B/0EM/903 is a 20V/2A single-output DC power supply with high accuracy, OLED display, and configurable input voltage (100–230V).
Product details
| Model | E36103B/0EM/903 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight E36103B/0EM/903 is a compact single-output DC power supply with 20 V and 2 A output (40 W maximum). Designed for laboratory and production testing, this benchtop instrument delivers precise, low-noise power with multi-voltage input configuration (100, 115, or 230 V) for worldwide use and comes with a three-year factory warranty.
Key Features
- Output: 0–20 V, 0–2 A, 40 W
- Compact 2U, ¼-rack form factor
- High-contrast OLED display with wide viewing angle
- Programming and readback accuracy with low noise output
- Overvoltage, overcurrent, and overtemperature protection
- Rotary knob with digit-by-digit control for fast setup
- Store and recall up to 10 complete power supply setups
- USB and LAN (LXI Core) connectivity for remote control
- Web browser interface for convenient control
- SCPI and IVI programming support for automation
- Configurable input voltage: 100, 115, or 230 V AC
- Drop-in replacement for the E36103A model
Applications
- Device testing and validation in development and production labs
- Automated test systems with SCPI/IVI programming
- Powering sensitive circuits during characterization tests
- Long-duration testing with BenchVue data acquisition and remote monitoring
Specifications
| Voltage Range Selector | 20-29.9 |
| Output Voltage | 20 V |
| Current Range Selector | 0-2.49 |
| Output Current | 2 A |
| Power Range Selector | 1-199 |
| Power Rating | 40 W |
| Mounting Type | Bench Top |
| Input Voltage | 115 VAC |
| Series | E36100B Series |
| Display | OLED |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Low Current |
