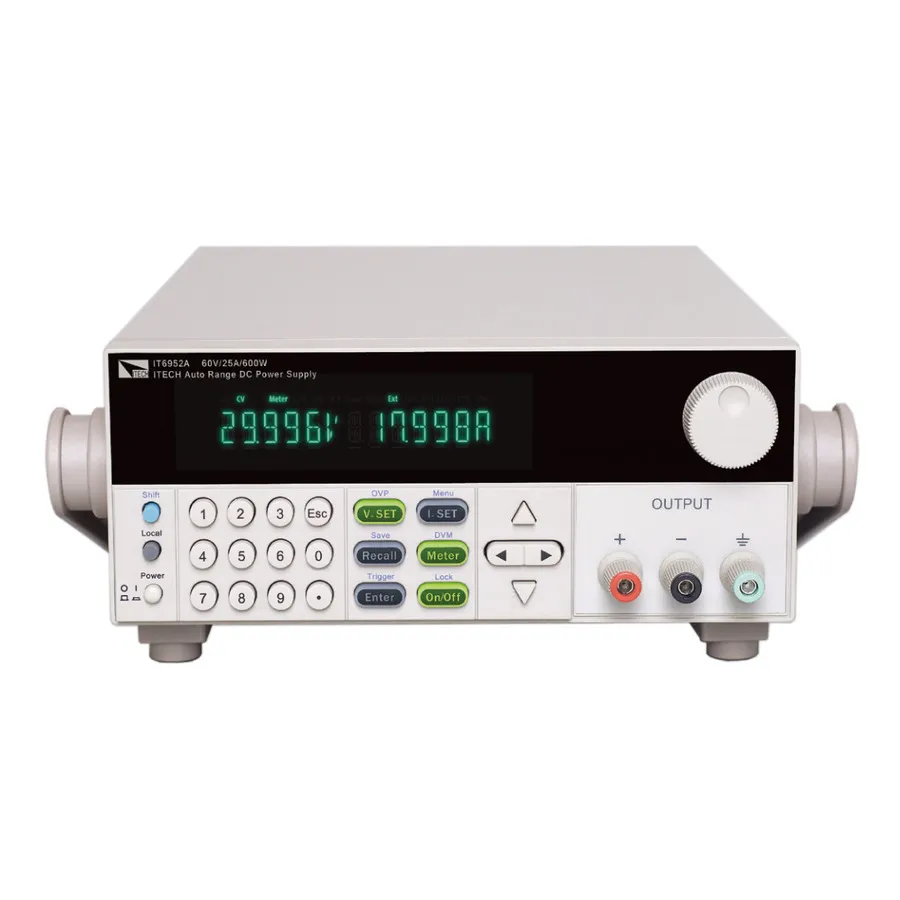

ITECH IT6952A DC Power Supply
Request a quote
ITECH IT6952A is a 600W programmable DC power supply with 60V/25A output, featuring RS232/USB interfaces and Timer function for battery and DC-DC module testing.
Product details
| Model | IT6952A |
| Manufacturer | ITECH |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The ITECH IT6952A is a 600W programmable DC power supply from the IT6900A series, offering 60V/25A output capacity. Ideal for applications requiring moderate to high current delivery, including battery charging, DC-DC module testing, and automated production testing environments.
Key Features
- High accuracy with digital step adjustment via cursor control
- Voltage and current adjustment via knob or numerical keypad
- Output Timer function (0.1 - 99999.9S) for timed power delivery
- Low ripple and low noise output for sensitive equipment
- Remote Sense function to compensate for wire resistance
- Standard RS232 and USB communication interfaces
- VFD display with clear readout
- Support for front and rear panel output configuration
- Intelligent fan control for efficient operation
Applications
- Battery charging system development and validation
- DC-DC power supply module testing
- Automated sensor and component testing
- Laboratory and production test environments
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 20-29.9 |
| Output Current | 25 A |
| Power Range Selector | 500-999 |
| Power Rating | 600 W |
| Mounting Type | Bench Top |
| Input Voltage | 110/220 VAC |
| Series | IT6900A Series |
| Display | VFD |
| Includes | Power cord, USB cord, Factory calibration certificate |
| Interface | GPIB,USB,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Autoranging, Remote Sense |
