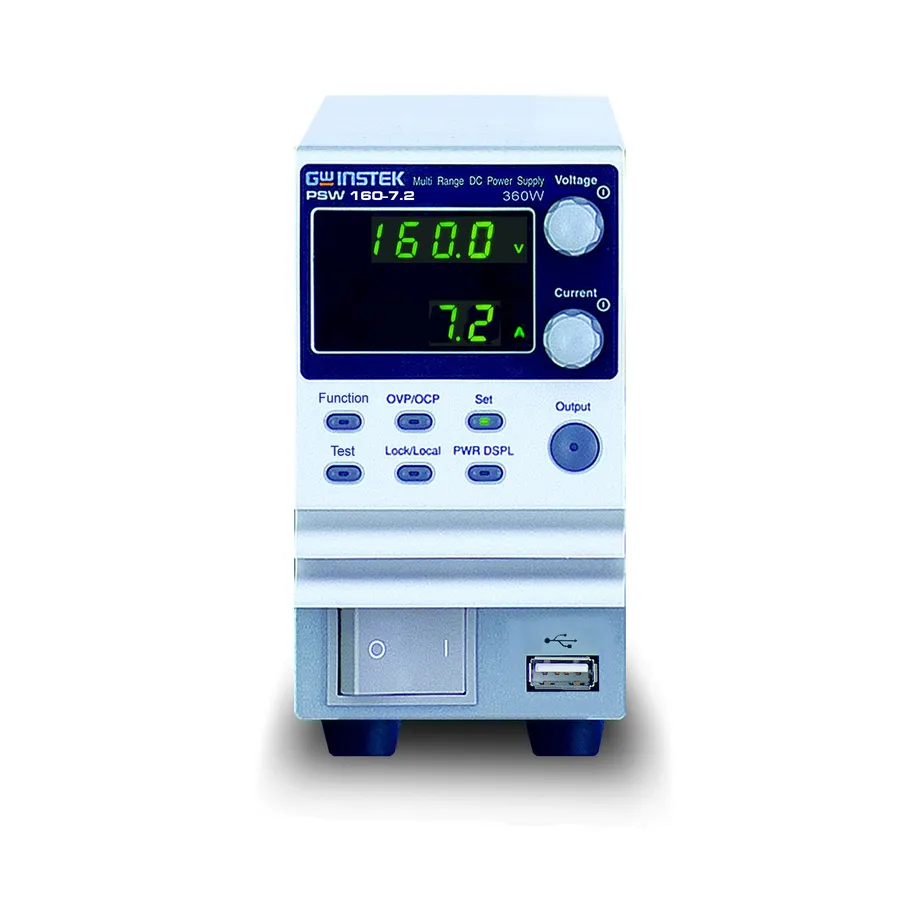

GW Instek PSW 160-7.2 DC Power Supply

Overview

The GW Instek PSW 160-7.2 is a single-output programmable switching DC power supply delivering 0–160V and 0–7.2A with a maximum output power of 360W. Part of the PSW-Series family, it offers multi-range flexibility for voltage and current configuration within its rated power envelope. The CV/CC priority selection protects sensitive devices by preventing high inrush currents during power-on transitions. Its adjustable slew rate allows precise control over voltage and current rise and fall times, making it ideal for characterizing devices sensitive to power transients.

Key Features

• Voltage range: 0–160V
• Current range: 0–7.2A
• Maximum output power: 360W
• Multi-range operation allows flexible V/I combinations within power limit
• CV/CC priority selection protects DUTs from inrush current damage
• Adjustable slew rate for controlled voltage and current transitions
• Over-voltage (OVP) and over-current (OCP) protection (default 110%)
• Series operation: up to 2 units
• Parallel operation: up to 3 units
• Standard interfaces: USB, LAN, analog control/monitoring
• Optional GPIB-USB adapter
• LabVIEW driver and data logging software support

Applications

• Battery testing and characterization
• LED and lighting device testing
• Power supply testing and verification
• Electronic component characterization

Included Accessories

• User Manual (printed and CD)
• Programmable User Manual (CD)
• Power Cord (region dependent)
• GTL-240 USB Cable, L-type
• PSW-004 Basic Accessories Kit: M4 and M8 terminal hardware, air filter, analog control lever and dummy
