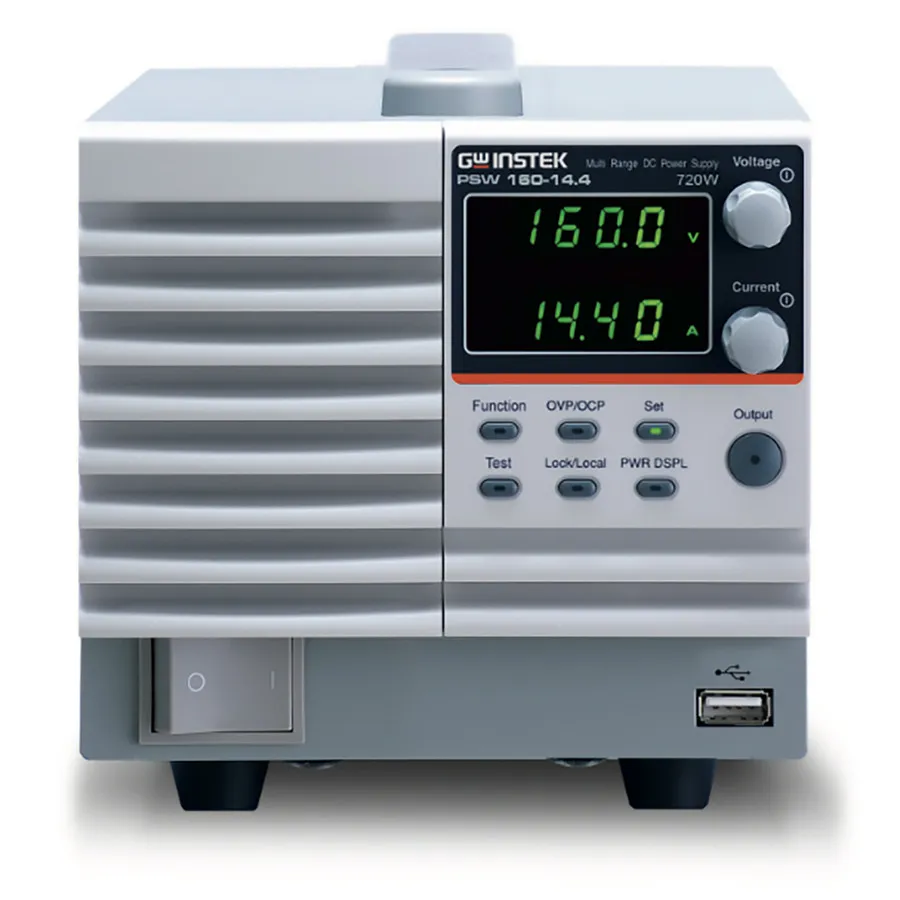

GW Instek PSW 160-14.4 DC Power Supply

Overview

The GW Instek PSW 160-14.4 is a single-output programmable switching DC power supply delivering 0–160V and 0–14.4A with a maximum output power of 720W. The multi-range feature allows flexible configuration of voltage and current within the rated power envelope, making it suitable for diverse applications including battery testing, LED I-V curve verification, and electronic device characterization. Series and parallel operation support extends its capability to systems requiring higher voltage or current output.

Key Features

• Voltage range: 0–160V
• Current range: 0–14.4A
• Maximum output power: 720W
• Multi-range operation allows flexible V/I combinations within power limit
• CV/CC priority selection protects devices from inrush current
• Adjustable slew rate for controlled voltage/current transitions
• Over-voltage (OVP) and over-current (OCP) protection (default 110%)
• Series operation: up to 2 units
• Parallel operation: up to 3 units
• Standard interfaces: USB, LAN, analog control
• Optional GPIB-USB adapter
• LabVIEW driver and data logging software support

Applications

• Battery and LED testing and characterization
• Electronic device power supply and parameter verification
• Programmable test and measurement systems

Included Accessories

• User Manual (printed and CD)
• Power Cord
• GTL-123 Test Lead
• PSW-004 Basic Accessories Kit: M4 and M8 terminal hardware, air filter, analog control lever and dummy
