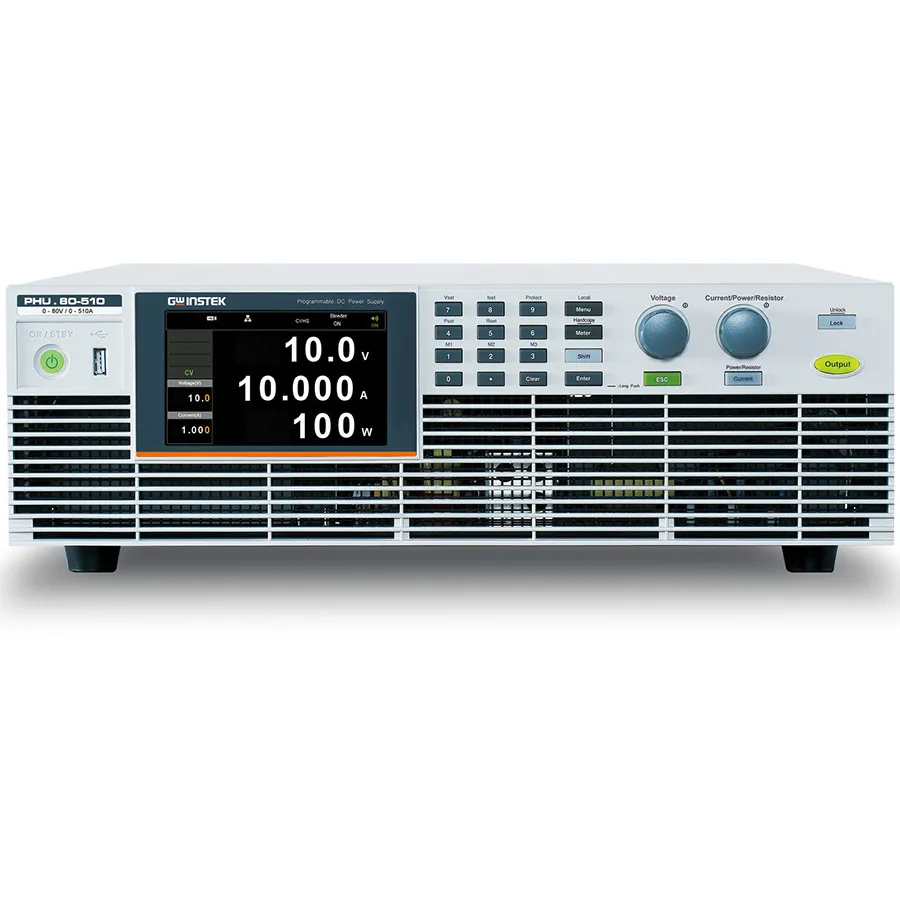

GW Instek PHU 80-510-D DC Power Supply

Overview

The GW Instek PHU 80-510-D is a single-channel programmable DC power supply with multi-range output capabilities. Delivering 80V/510A and 15 kW, it leverages SiC (silicon carbide) technology for exceptional power density in a 3U rack-mount form factor. This model suits diverse testing environments including photovoltaic systems, electric vehicle development, and automotive electronics verification.

Key Features

• 80V output voltage with 510A maximum current
• 15 kW power output with high efficiency
• Constant Current / Constant Voltage priority mode selection
• Adjustable voltage and current rise and fall times
• Advanced Web Server (AWS) for browser-based remote operation
• Adaptive Parallel Connection (APC) — scalable to 10 units for 150 kW total power
• Multi-level protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
• Standard interfaces: USB, LAN, isolated analog control
• Optional interfaces: RS-232/485, GPIB, CAN Bus, Device Net
• Three preset function sets
• Bleeder control and internal resistance functions
• Panel lock capability
• Programmable sequence functionality

Applications

• Photovoltaic system testing and validation
• Electric vehicle (EV) component and battery testing
• Automotive electronics development and verification
• General high-power DC testing requirements

Included Accessories

• AC Input Terminal Cover
• DC Output Terminal Cover
• Handle x2
• Sensing Connector with Cover
• Digital I/O Control Connector
• Parallel Control Dummy Connector
• DC Output Terminal Screws x2
• Safety Guide
