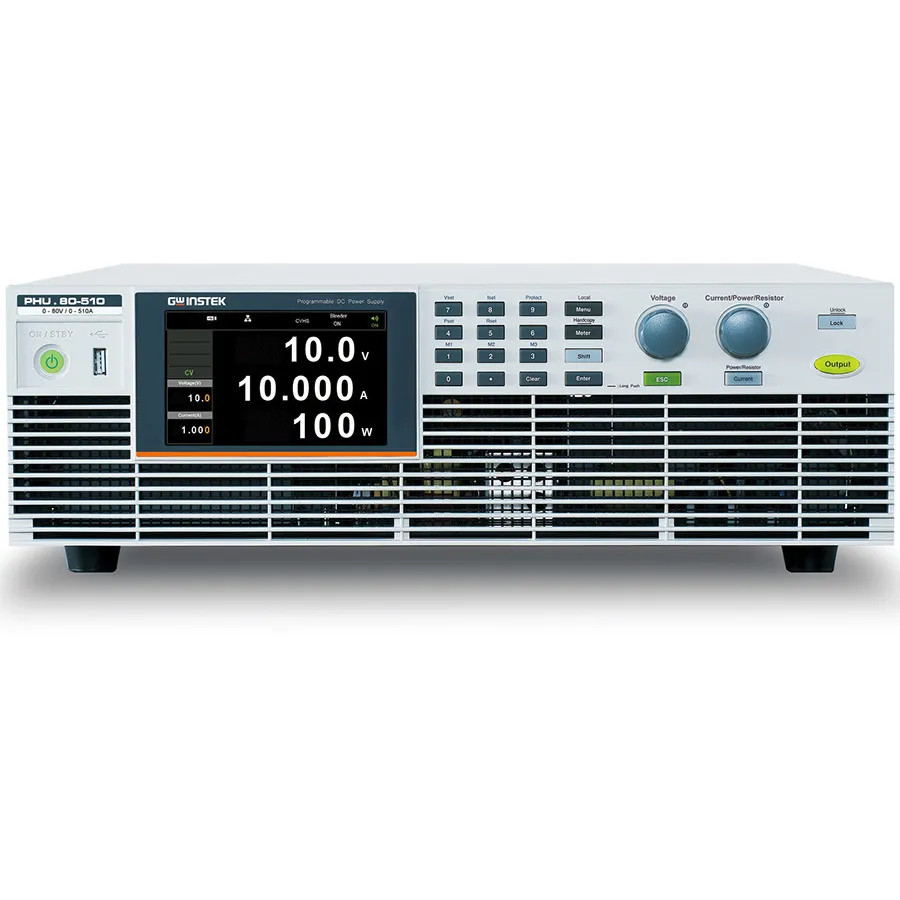

GW Instek PHU 80-510-C DC Power Supply
Request a quote
GW Instek PHU 80-510-C is a programmable DC power supply with 80V/510A output, 15 kW capacity, AWS remote control, and adaptive parallel connection capability.
Product details
| Model | PHU 80-510-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PHU 80-510-C is a single-channel programmable DC power supply with multi-range output delivering 80V/510A and 15 kW. Utilizing SiC (silicon carbide) components for superior power density, it fits in a compact 3U rack-mount chassis. Ideal for testing applications spanning photovoltaic systems, electric vehicle components, and automotive electronics.
Key Features
- 80V output voltage with 510A maximum current
- 15 kW power output with high efficiency
- Constant Current / Constant Voltage priority mode
- Adjustable voltage and current rise and fall times
- Advanced Web Server (AWS) for intuitive remote web-browser control
- Adaptive Parallel Connection (APC) — supports up to 10 units for maximum 150 kW capacity
- Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Standard interfaces: USB, LAN, isolated analog control
- Optional interfaces: RS-232/485, GPIB, CAN Bus, Device Net
- Three sets of preset functions
- Bleeder control and internal resistance functions
- Panel lock for secure operation
- Programmable sequence capability
Applications
- Photovoltaic (PV) system testing
- Electric vehicle (EV) testing
- Automotive electronics and battery testing
- High-power DC testing applications
Included Accessories
- AC Input Terminal Cover
- DC Output Terminal Cover
- Handle x2
- Sensing Connector with Cover
- Digital I/O Control Connector
- Parallel Control Dummy Connector
- DC Output Terminal Screws x2
- Safety Guide
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 80 V |
| Current Range Selector | 500-1,499 |
| Output Current | 510 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU805D00GT |
| Input Power | 3 W |
| Phase | 3P |
