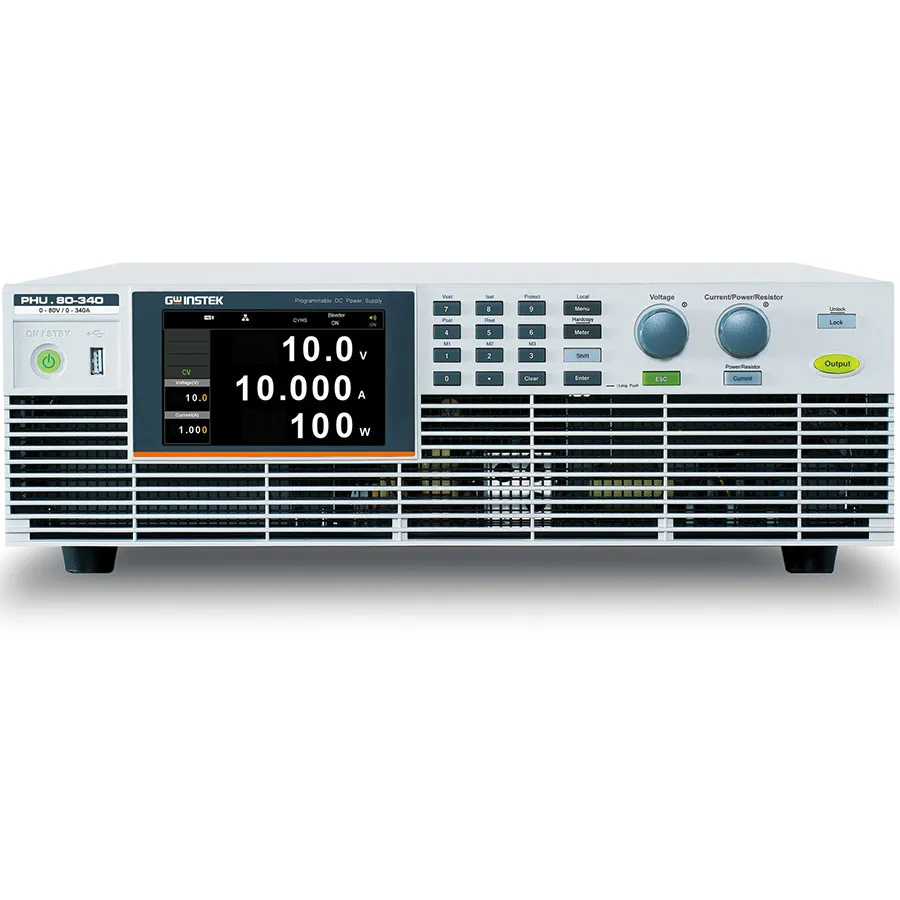

GW Instek PHU 80-340-C DC Power Supply
Request a quote
GW Instek PHU 80-340-C is a programmable DC power supply delivering 80V at 340A (10kW) with SiC high-efficiency design, web control, and parallel connection capability.
Product details
| Model | PHU 80-340-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PHU 80-340-C is a single-channel programmable DC power supply with multi-range output capability. Rated for 80V at 340A (10kW), it features SiC (silicon carbide) components for high power density and efficiency, maintained within a compact 3U rack-mount form factor. The PHU series is engineered for diverse testing applications including photovoltaic systems, electric vehicles, automotive electronics, and other demanding industrial environments.
Key Features
- Voltage output 80V, current output 340A, power output 10kW
- C.C/C.V priority mode with adjustable voltage/current rise and fall time
- AWS (Advanced Web Server) for web browser operation without software installation
- APC (Adaptive Parallel Connection) — up to 10 units can be connected for 150kW total capacity
- High efficiency and high-power density with SiC components
- Bleeder Control and Internal Resistance functions
- Panel lock function for secure operation
- Three sets of Preset Function for flexible programming
- Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Standard interfaces: USB, LAN, Isolated Analog control
- Optional interfaces: RS-232/485, GPIB, CAN Bus, DeviceNet
- 3U height, 19" Rack Mount Size
Applications
- Photovoltaic system testing and simulation
- Electric vehicle (EV) development and testing
- Automotive electronics testing
- Industrial equipment testing and power supply
Included Accessories
- AC Input Terminal Cover
- DC Output Terminal Cover
- Handles x2
- Sensing Connector
- Sensing Connector Cover
- Digital I/O Control Connector
- Parallel Control Dummy Connector
- DC Output Terminal Screws x2
- Safety Guide
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 80 V |
| Current Range Selector | 200-499 |
| Output Current | 340 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 10 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU803D00GT |
| Input Power | 3 W |
| Phase | 3P |
