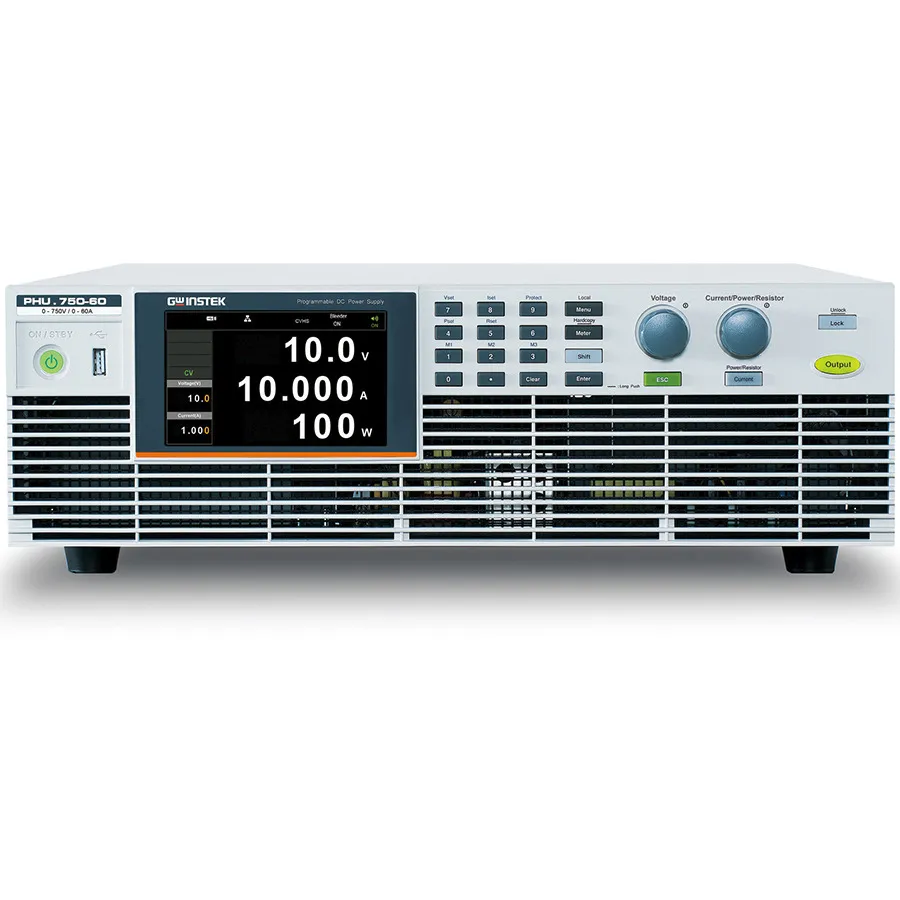

GW Instek PHU 750-60-C Programmable DC Power Supply

Overview

The GW Instek PHU 750-60-C is a single-channel programmable DC power supply with multi-range output capability. Designed for demanding testing applications, it delivers 15 kW of power at 750V/60A using advanced SiC (silicon carbide) components for superior efficiency and compact 3U rack-mount form factor.

Key Features

• 15 kW power output with 750V/60A capability
• SiC (silicon carbide) power components for high efficiency
• AWS (Advanced Web Server) remote control via web browser
• APC (Adaptive Parallel Connection) — up to 10 units for 150 kW maximum
• Dual C.V/C.C (Constant Voltage/Constant Current) priority mode
• Adjustable voltage and current rise/fall time
• Industrial interfaces: EtherCAT, CANopen, Modbus, Profinet, DeviceNet
• Standard ports: USB, LAN, isolated analog control
• Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
• Built-in programmable sequence function
• Optional functions: Datalogger, MPPT, Solar Array Simulator, AH/WH Meter, Battery Simulation
• Panel lock function for secure operation

Applications

• Photovoltaic systems testing and development
• Electric vehicle (EV) battery and component testing
• Automotive electronics validation
• High-power industrial equipment testing
• Research laboratory applications

Included Accessories

• AC input terminal cover
• DC output terminal cover
• Handles (x2)
• Sensing connector with cover
• Digital I/O control connector
• Parallel control dummy connector
• DC output terminal screws (x2)
• Safety guide
