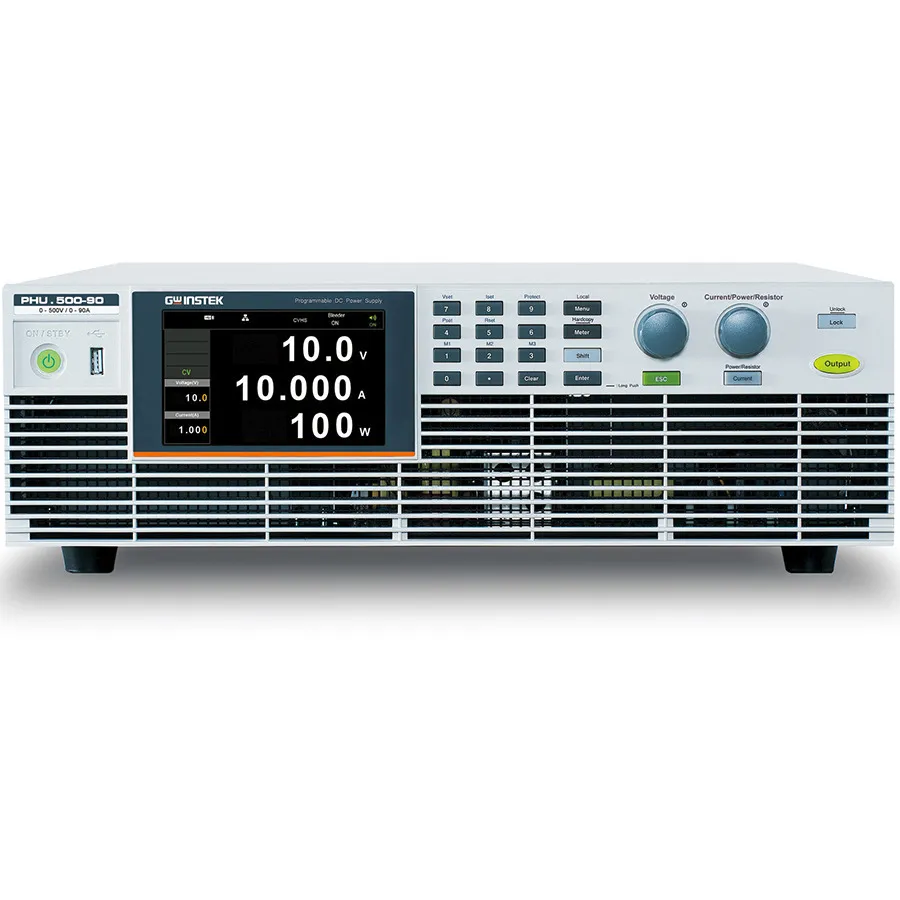

GW Instek PHU 500-90-C Programmable DC Power Supply
Request a quote
GW Instek PHU 500-90-C is a 15kW programmable DC power supply with 500V/90A output, SiC efficiency, and web control for EV and solar testing.
Product details
| Model | PHU 500-90-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PHU 500-90-C is a single-channel programmable DC power supply with multi-range output capability. Using SiC (silicon carbide) components, this 15kW unit delivers high power density in a compact 3U rack-mount form factor. The PHU series is engineered for demanding applications including photovoltaic systems, electric vehicle (EV) testing, and automotive electronics.
Key Features
- 500V output voltage with 90A maximum current (15kW power)
- Constant Current/Constant Voltage (C.C/C.V) priority mode
- Adjustable voltage and current rise and fall time
- AWS (Advanced Web Server) for browser-based operation
- APC (Adaptive Parallel Connection) supporting up to 10 units (150kW total)
- High efficiency and power density design
- Multiple interface options: USB, LAN, RS-232/485, GPIB, CAN Bus, DeviceNet
- Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Bleeder Control and Internal Resistance functions
- Panel lock and three preset configurations
- 19-inch rack mount, 3U height
Applications
- Photovoltaic system testing and simulation
- Electric vehicle component validation
- Automotive electronics testing
- High-power device characterization
- Multi-unit parallel power systems
Included Accessories
- AC Input Terminal Cover
- DC Output Terminal Cover
- Handles (×2)
- Sensing Connector with cover
- Digital I/O Control Connector
- Parallel Control Dummy Connector
- DC Output Terminal Screws (×2)
- Safety Guide
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 500 V |
| Current Range Selector | 50-99.9 |
| Output Current | 90 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU5H9D00GT |
| Input Power | 3 W |
| Phase | 3P |
