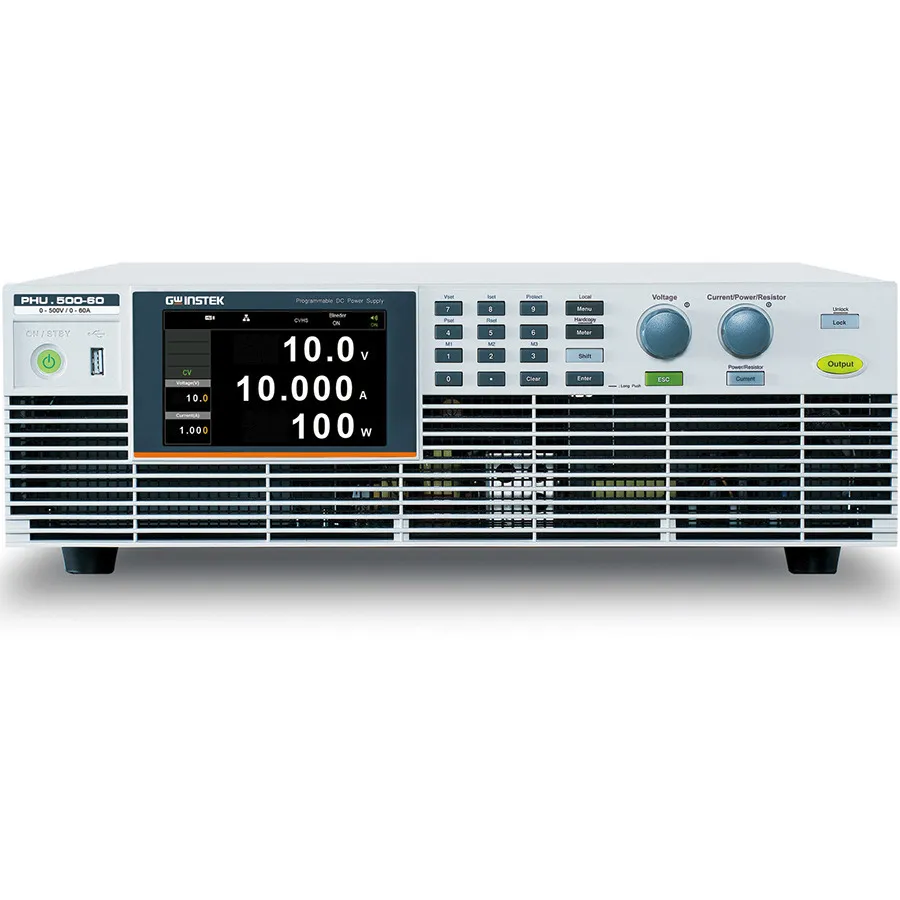

GW Instek PHU 500-60-C Programmable DC Power Supply

Overview

The GW Instek PHU 500-60-C is a single-channel programmable DC power supply with multi-range output capability delivering 10 kW at 500V/60A. Built with silicon carbide (SiC) components, it achieves high power density in a compact 3U rack-mount design. This variant supports comprehensive testing applications in photovoltaic systems, electric vehicle development, and automotive electronics.

Key Features

• Output: 500V / 60A (10 kW)
• Multi-range voltage and current combinations
• Constant voltage / constant current priority mode
• Adjustable voltage/current rise and fall time
• AWS (Advanced Web Server) control via web browser
• APC (Adaptive Parallel Connection) up to 10 units for 150 kW total
• Bleeder and internal resistance control
• Panel lock function
• Three preset memory storage
• Protections: OVP, OCP, OHP, UVL, AC Fail, FAN Fail

Connectivity & Interfaces

• Standard: USB, LAN, isolated analog control
• Optional: RS-232, RS-485, GPIB, CANopen, EtherCAT, Modbus, Profinet, DeviceNet
• Optional functions: Datalogger, MPPT, Solar Array Simulator, AH/WH Meter, Battery Simulation

Included Accessories

• AC input terminal cover
• DC output terminal cover
• Carrying handles (2)
• Remote sensing connector with cover
• Digital I/O control connector
• Parallel control dummy connector
• DC output terminal screws (2)
• Safety guide
