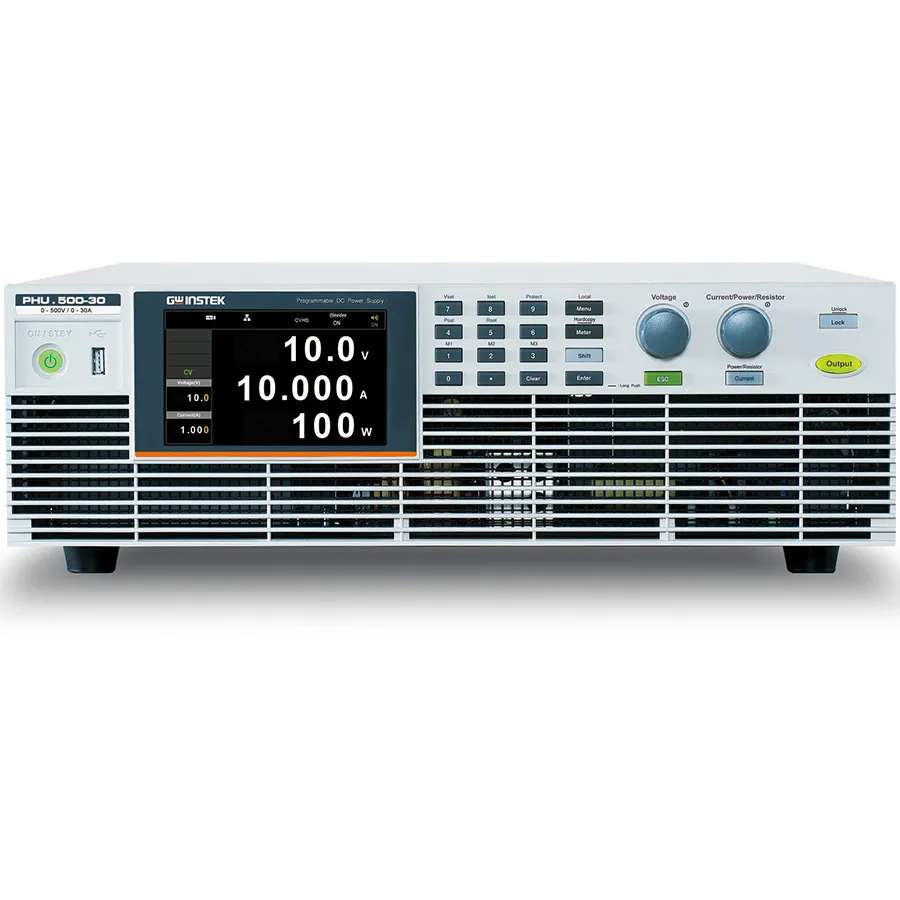

GW Instek PHU 500-30-C DC Power Supply
Request a quote
GW Instek PHU 500-30-C programmable DC power supply delivers 5kW at 500V/30A with SiC technology, ideal for photovoltaic and EV testing applications.
Product details
| Model | PHU 500-30-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PHU 500-30-C is a single-channel programmable DC power supply designed for high-power testing applications. With 500V/30A output and 5kW maximum power, it combines SiC (silicon carbide) circuit design for high power density in a compact 3U rack-mount form factor. This supply is ideal for testing photovoltaic systems, electric vehicles (EVs), and automotive electronics.
Key Features
- Multi-range output flexibility for various voltage and current combinations
- 500V output, 30A maximum current, 5kW power rating
- SiC (silicon carbide) components for high efficiency and compact power density
- Constant Current/Constant Voltage (C.C/C.V) priority mode selectable
- Adjustable voltage and current rise/fall time for custom testing protocols
- AWS (Advanced Web Server) for browser-based remote control without software installation
- APC (Adaptive Parallel Connection) allows up to 10 units in parallel for up to 150kW total capacity
- Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Multiple interface options: USB, LAN, Isolated Analog control, with optional RS-232, RS-485, GPIB, CAN Bus, DeviceNet
- 3U height, 19-inch rack-mount design for easy integration into test benches
- Panel Lock, Bleeder Control, Internal Resistance, and three preset functions
Applications
- Photovoltaic and solar system testing and simulation
- Electric vehicle (EV) power system development and validation
- Automotive electronics and battery system testing
- Industrial power supply testing and characterization
Included Accessories
- AC Input and DC Output Terminal Covers
- Handles (x2)
- Sensing Connectors with cover
- Digital I/O Control Connector
- Parallel Control Dummy Connector
- DC Output Terminal Screws (x2)
- Safety Guide
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 500 V |
| Current Range Selector | 30-49.9 |
| Output Current | 30 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU5H3D00GT |
| Input Power | 3 W |
| Phase | 3P/1P |
