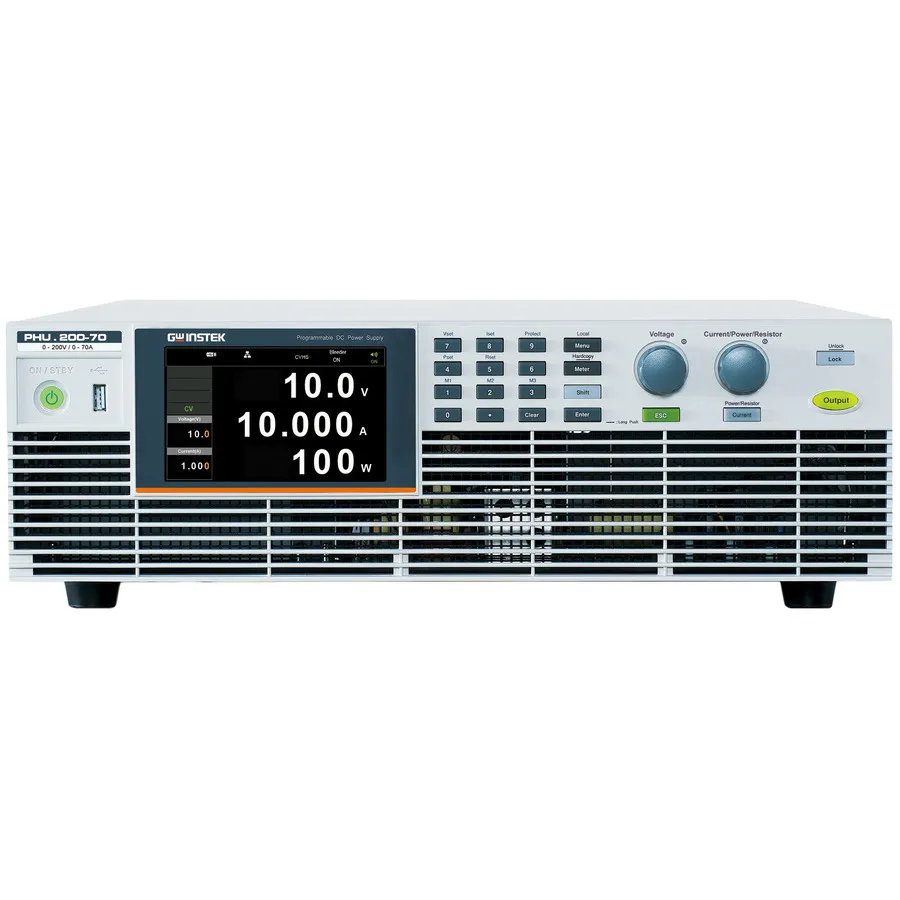

GW Instek PHU 200-70-C DC Power Supply

Overview

The GW Instek PHU 200-70-C is a single-channel programmable DC power supply designed for versatile test and application scenarios. With a 200V/70A output (5kW), it incorporates SiC (silicon carbide) technology for high efficiency and compact 3U rack-mount design. The PHU Series multi-range output architecture supports flexible voltage and current combinations, making it suitable for photovoltaic system testing, electric vehicle development, automotive electronics validation, and industrial power applications.

Key Features

• Voltage output: 200V
• Current output: 70A
• Power output: 5kW
• C.C/C.V priority mode for operational flexibility
• Adjustable voltage/current rise and fall time
• AWS (Advanced Web Server) for remote browser-based control
• APC (Adaptive Parallel Connection) for cascading multiple units
• Parallel connection capable (maximum 10 units)
• Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
• Standard interfaces: USB, LAN, Isolated Analog control
• Optional interfaces: RS-232/485, GPIB, CAN Bus, DeviceNet, EtherCAT, CANopen, Modbus, Profinet
• 3U height, 19-inch rack-mount design
• Programmable sequence function with three preset memories

Applications

• Photovoltaic system testing and development
• Electric vehicle (EV) battery and charger testing
• Automotive electronics testing
• Industrial power system simulation
• Parallel power delivery for modular test systems

Included Accessories

• AC Input Terminal Cover
• DC Output Terminal Cover
• Handles (qty 2)
• Sensing Connector
• Sensing Connector Cover
• Digital I/O Control Connector
• Parallel Control Dummy Connector
• DC Output Terminal Screws (qty 2)
• Safety Guide
