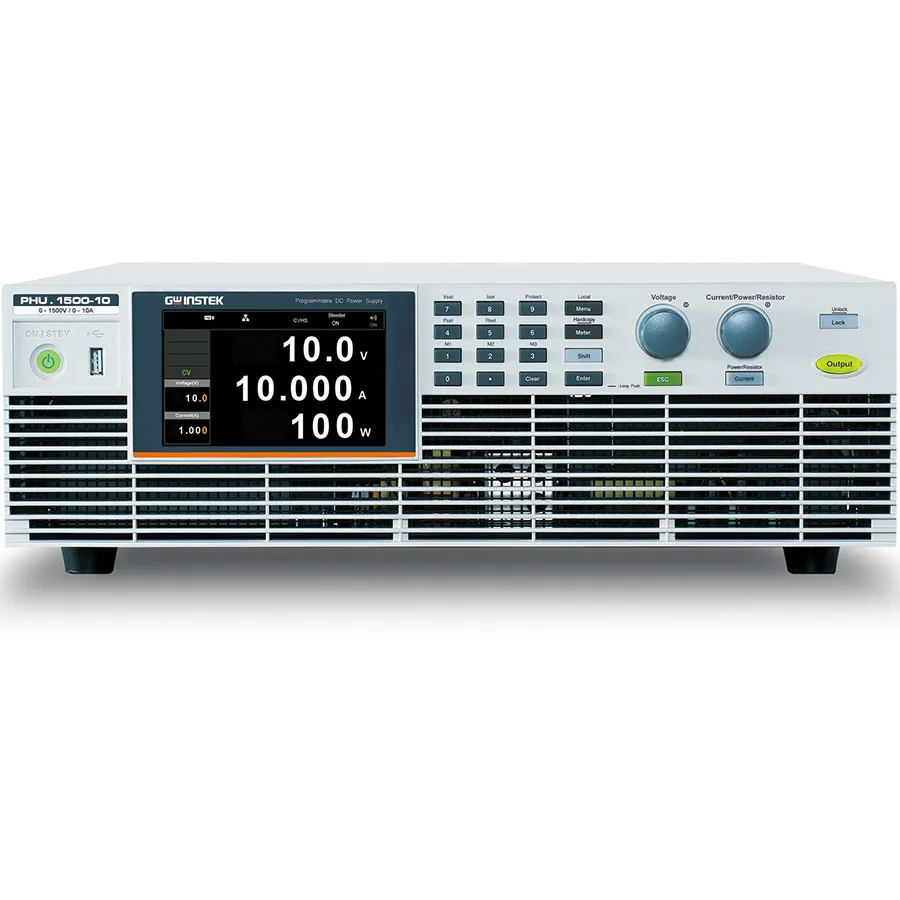

GW Instek PHU 1500-10-C Programmable DC Power Supply
Request a quote
Programmable 1500V/10A DC power supply with 5kW output, SiC technology, parallel connection capability, and web-based control for testing applications.
Product details
| Model | PHU 1500-10-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The PHU Series is a single-channel programmable DC power supply with multi-range output capabilities. Using SiC (silicon carbide) components, the PHU 1500-10-C delivers 5kW of output in a compact 3U rack-mount form factor. Its wide voltage and current ranges make it suitable for testing photovoltaic systems, electric vehicles, automotive electronics, and other high-power applications.
Key Features
- Output: 1500V / 10A / 5kW
- SiC component technology for high efficiency and power density
- C.C/C.V priority mode with adjustable rise/fall times
- AWS (Advanced Web Control) for browser-based operation
- APC (Adaptive Parallel Connection) for flexible scaling up to 10 units (150kW total)
- Multiple protection modes: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Standard interfaces: USB, LAN, isolated analog control
- Optional: RS-232/485, GPIB, CAN Bus, DeviceNet
- Panel lock function and three preset configurations
- 19" rack mount, 3U height
Applications
- Photovoltaic (PV) system testing and simulation
- Electric vehicle (EV) battery and power system testing
- Automotive electronics and HV component validation
- Industrial equipment testing requiring high-power DC supply
Included Accessories
- AC input terminal cover
- DC output terminal cover
- Handles (x2)
- Sensing connector with cover
- Digital I/O control connector
- Parallel control dummy connector
- DC output terminal screws (x2)
- Safety guide
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1.5 kV |
| Current Range Selector | 10-19.9 |
| Output Current | 10 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU151D00GT |
| Input Power | 3 W |
| Phase | 3P/1P |
