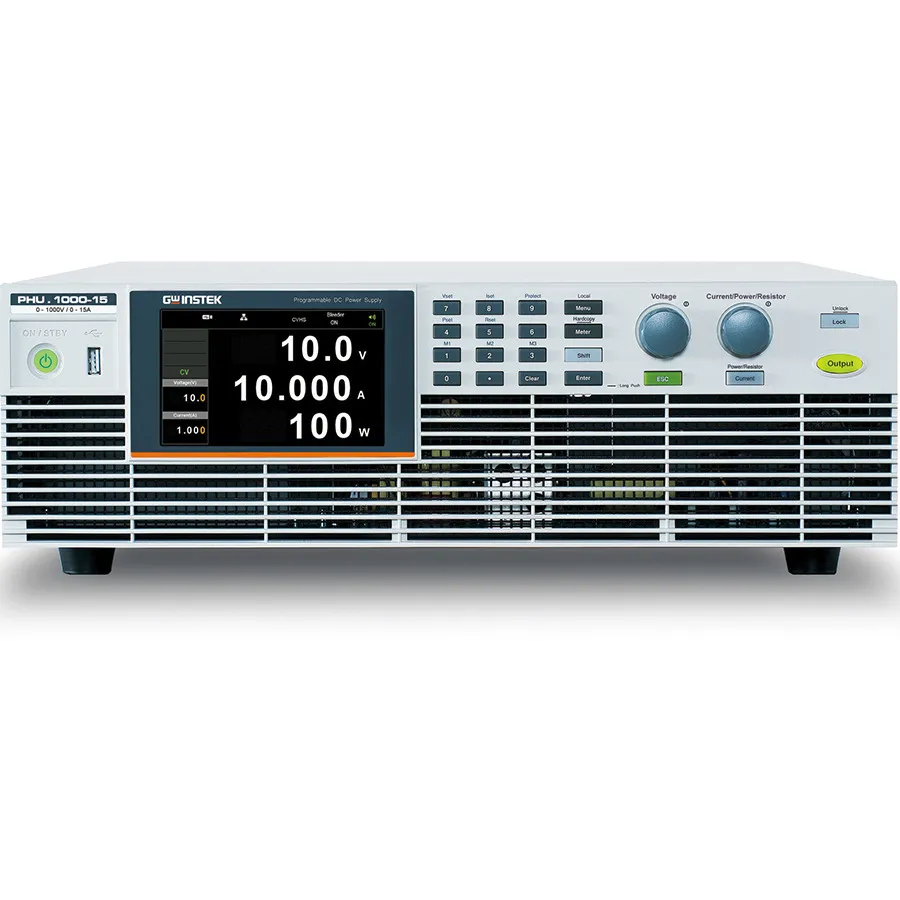

GW Instek PHU 1000-15-C Programmable DC Power Supply
Request a quote
GW Instek PHU 1000-15-C is a programmable single-channel DC supply with 5 kW output at 1000V/15A, featuring SiC technology and multi-range capabilities for versatile testing.
Product details
| Model | PHU 1000-15-C |
| Manufacturer | GW Instek |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The GW Instek PHU 1000-15-C is a single-channel programmable DC power supply with multi-range output capabilities, delivering 5 kW of power at 1000V and 15A. Using SiC (silicon carbide) components, it achieves high power density while maintaining a compact 3U height. This supply is designed for demanding applications including photovoltaic systems, electric vehicle testing, and automotive electronics.
Key Features
- 5 kW single-channel programmable output (1000V/15A)
- Multi-range output for flexible voltage and current combinations
- SiC components for high efficiency and compact design
- AWS (Advanced Web Server) for remote browser-based control
- APC (Adaptive Parallel Connection) — supports parallel connection of up to 10 units for up to 150 kW
- C.V/C.C priority mode for constant voltage or constant current operation
- Adjustable voltage and current rise and fall times
- Bleeder control and internal resistance functions
- Panel lock feature for operation security
- Three preset function sets for quick configuration
- Comprehensive protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Multiple industrial interfaces: EtherCAT, CANopen, Modbus, Profinet, DeviceNet (optional)
- Standard connectivity: USB, LAN, Isolated Analog Control
- 3U height, 19-inch rack mount format
- Optional functions: Datalogger, MPPT, Solar Array Simulator, AH/WH Meter, Battery Simulation
Applications
- Photovoltaic system design and testing
- Electric vehicle (EV) power system validation
- Automotive electronics development and testing
- High-power DC system research and prototyping
Included Accessories
- AC input terminal cover
- DC output terminal cover
- Handles (2)
- Sensing connector
- Sensing connector cover
- Digital I/O control connector
- Parallel control dummy connector
- DC output terminal screws (2)
- Safety guide
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1 kV |
| Current Range Selector | 10-19.9 |
| Output Current | 15 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 200 VAC |
| Series | PHU Series |
| Alternate Product Number | 01HU1K1D00GT |
| Input Power | 3 W |
| Phase | 3P/1P |
