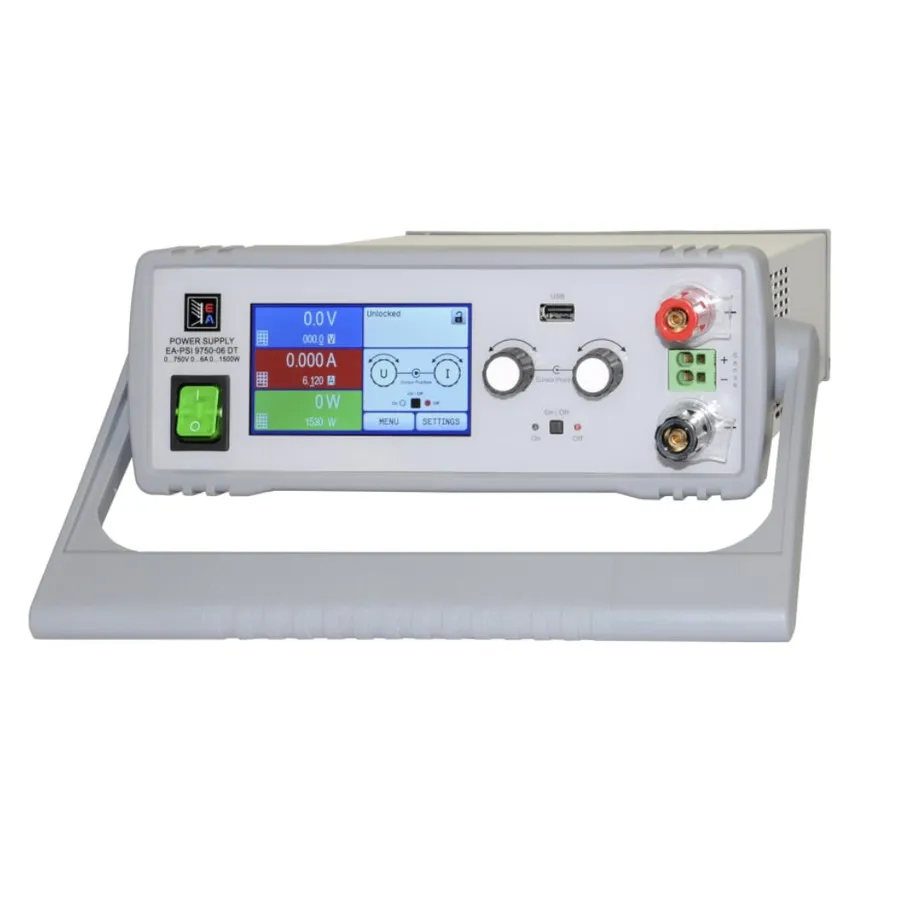

EA Elektro-Automatik EA-PSI 9750-06 DT DC Power Supply
Request a quote
Benchtop DC power supply with 750V/6A output, 1500W power, autoranging output stage, and integrated touch panel with OVP/OCP/OPP/OT protections.
Product details
| Model | EA-PSI 9750-06 DT |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA-PSI 9750-06 DT is a microprocessor-controlled benchtop DC power supply from the EA-PSI 9000 DT series. This autoranging power supply combines user-friendly operation with comprehensive protective features for laboratory, production, and automated test applications. The unit features a flexible output stage that adjusts voltage and current within its 1500W power envelope, along with integrated touch panel control, multiple communication interfaces, and a built-in function generator.
Key Features
- Autoranging output: 0-750V / 0-6A with flexible power stage up to 1500W
- Wide AC input: 90-264V with active Power Factor Correction (PFC)
- High efficiency: up to 92%
- Four-layer protection: OVP, OCP, OPP, and overtemperature monitoring
- Discharge circuit for safe output voltage reduction below 60V DC
- Color TFT touch panel display with intuitive multi-language interface (English, Russian, Chinese, German)
- Galvanically isolated interfaces: analog inputs/outputs, USB, and Ethernet for remote control
- Integrated function generator supporting 99 custom sequences
- SCPI command set and ModBus RTU protocol support
- Built-in output filter for low ripple and noise
- Desktop enclosure with carrying handle and adjustable tilt stand
Applications
- Laboratory testing and bench measurements
- Electronic device development and validation
- Production test and burn-in operations
- Semi-automated and remote control test systems
- Educational and training environments
- High-voltage component testing
Included Accessories
- Power supply device
- 2-meter mains cord with Schuko and/or UK plug
- 1.8m USB cable
- USB stick with control software and documentation
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 750 V |
| Current Range Selector | 5-9.9 |
| Output Current | 6 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Bench Top |
| Input Voltage | 100-240 VAC |
| Series | EA-PSI 9000 DT Series |
| Dimensions | 12.12 x 7.67 x 17.75" |
| Interface | 1x USB-B for communication, 1x USB-A for functions, 1x LAN for communication, 15 pole D-Sub (female) |
| Number of Outputs | Single Output |
| Operating Temperature Range | 32-122°F |
| Relative Humidity Range | ≤80% |
| Resistance Range | 4-3750 Ω |
| Safety | EN 60950, EN 61326, EN 61010, EN 55022 Class B |
| Special Features | Autoranging |
