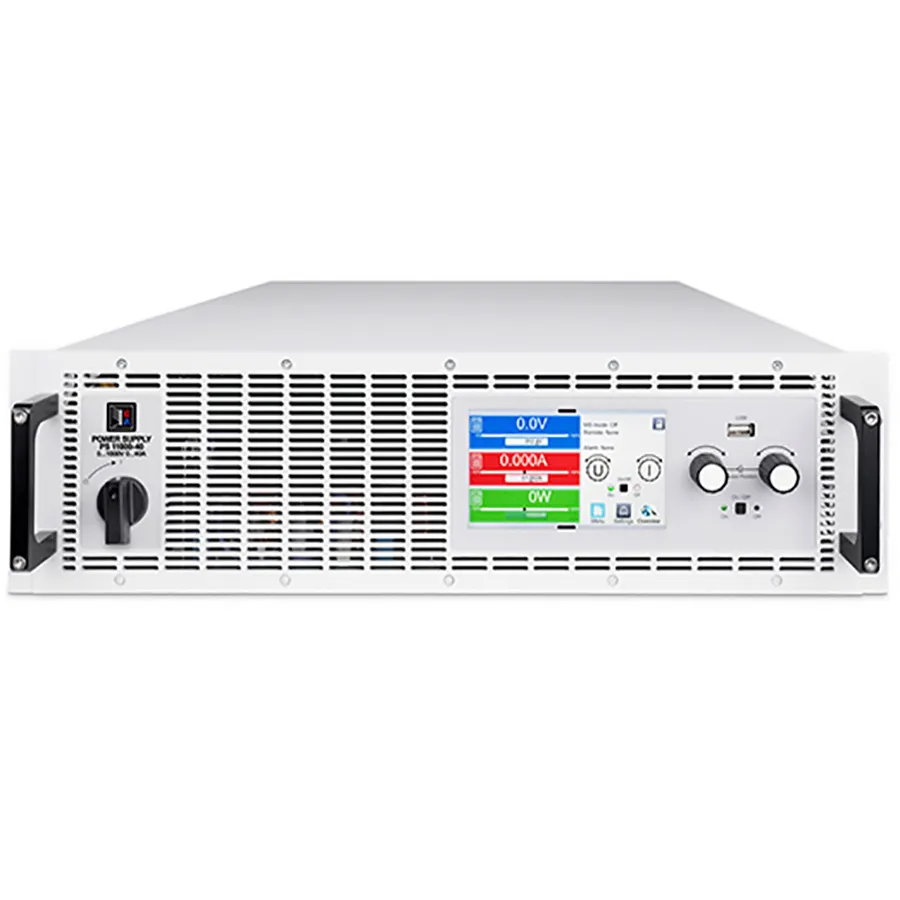

EA Elektro-Automatik EA-PSI 10360-40 3U DC Power Supply

Overview

The EA-PSI 10360-40 3U is a programmable DC power supply from the PSI 10000 series, designed for laboratory and industrial applications requiring high-power regulated output. It features a 3U rackmount form factor and accepts three-phase AC input (208-480V) to deliver up to 360V DC at 40A with a maximum power rating of 5000W. The unit incorporates advanced features including active power factor correction and flexible auto-ranging output capability.

Key Features

• Three-phase AC input: 208V - 480V, +10%, with active power factor correction (typical 0.99)
• High efficiency up to 96%
• Flexible auto-ranging output stage with constant power characteristic
• Color 5" TFT touchscreen display with intuitive user interface
• Multiple regulation modes: CV (Constant Voltage), CC (Constant Current), CP (Constant Power), CR (Constant Resistance)
• 16-bit ADCs and DACs with selectable controller speed (Normal, Fast, Slow)
• Galvanically isolated Share-Bus for parallel operation
• Master-Slave bus allowing up to 64 units in parallel for combined system power up to 1920 kW
• Integrated function generator with predefined curves
• Command languages: SCPI and ModBus with LabVIEW and IVI drivers
• Automotive test procedures (LV123, LV124, LV148) and photovoltaics test mode (EN 50530)

Applications

• Laboratory DC power testing and system validation
• Industrial equipment testing and commissioning
• Automotive and battery testing applications
• Renewable energy system testing and development
• High-power parallel multi-unit power systems
