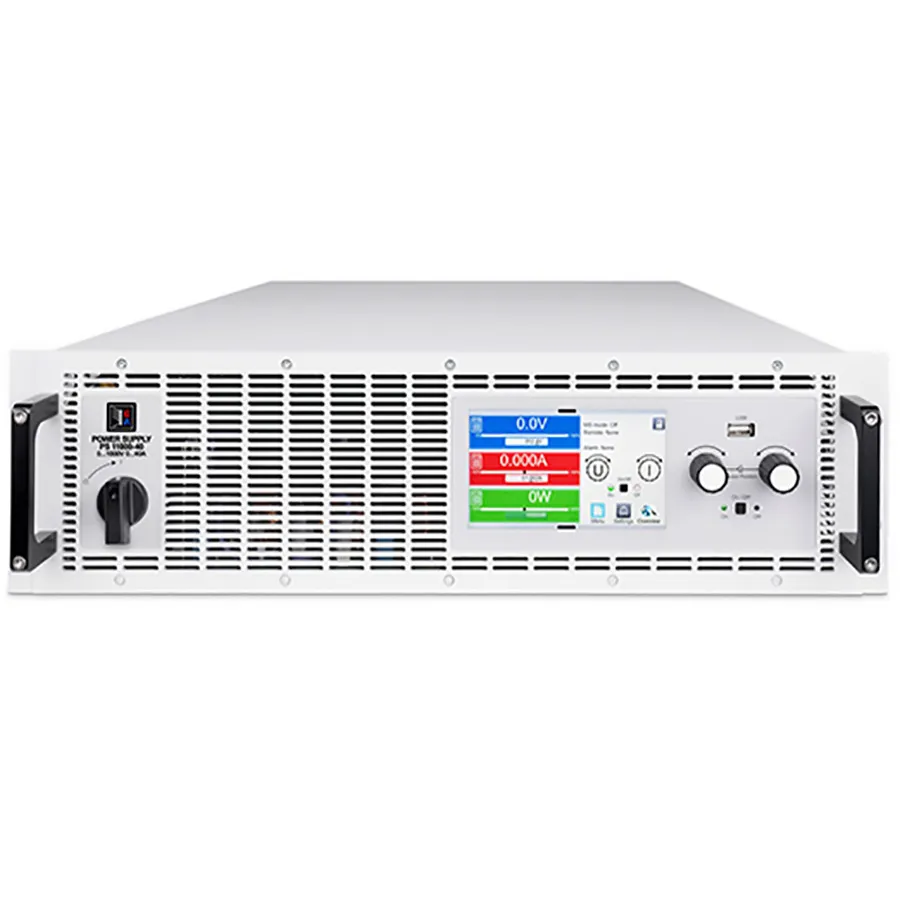

Elektro-Automatik EA-PSI 10200-210 Programmable DC Power Supply
Request a quote
Elektro-Automatik EA-PSI 10200-210 — 15 kW programmable DC power supply with 0-200V/210A output, 96% efficiency, and active power factor correction.
Product details
| Model | EA-PSI 10200-210 3U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Elektro-Automatik EA-PSI 10200-210 is a 15 kW programmable DC power supply for laboratory and test applications. This 3U rackmount unit delivers 0-200V at up to 210A with flexible autoranging output stage and comprehensive interface options for automated testing systems.
Key Features
- Output: 0-200V, 0-210A at 15 kW with autoranging
- Efficiency up to 96%
- Active Power Factor Correction (PFC), typical 0.99
- Wide AC input range: 208V to 480V, three-phase
- Regulation modes: CV (constant voltage), CC (constant current), CP (constant power), CR (constant resistance)
- 5-inch TFT touch panel with intuitive user interface
- Digital regulation with 16-bit ADCs and DACs
- Integrated function generator with predefined waveforms
- Multiple interfaces: USB, Ethernet, analog, and optional industrial protocols (SCPI, ModBus, LabVIEW, IVI)
- Master-Slave bus for parallel operation (up to 64 units, expandable to 1920 kW)
Applications
- Battery testing and simulation
- Automotive component testing (LV123, LV124, LV148)
- Photovoltaic inverter testing with MPPT
- Power electronic device characterization
- Renewable energy system testing
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 200 V |
| Current Range Selector | 200-499 |
| Output Current | 210 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208-480 VAC |
| Series | EA-PSI 10000 3U Series |
