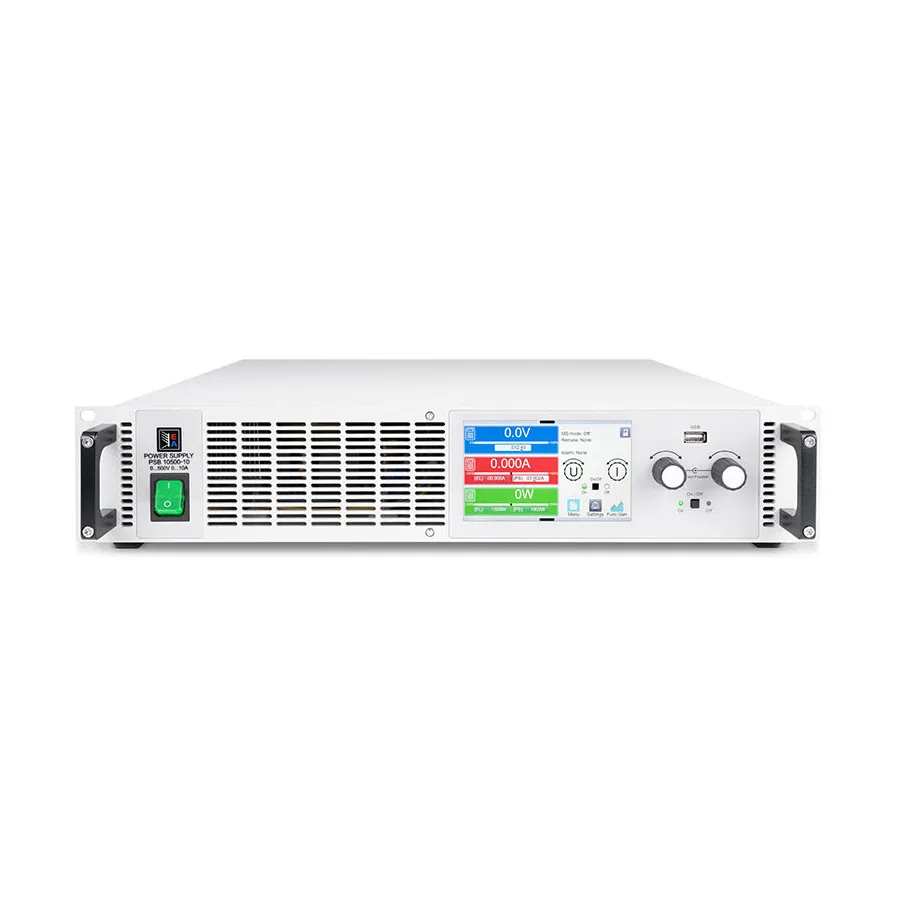

EA Elektro-Automatik EA-PSB 10060-60 2U Bidirectional DC Power Supply
Request a quote
EA Elektro-Automatik EA-PSB 10060-60 2U compact bidirectional power supply with 60V/60A output, 1.5kW capacity, energy recovery, and integrated test functions for bench and rack-mount applications.
Product details
| Model | EA-PSB 10060-60 2U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA-PSB 10060-60 2U is a compact programmable bidirectional DC power supply from the PSB 10000 series. Operating as both power supply and electronic load, it delivers regulated DC output with regenerative energy recovery back to the mains at over 95% efficiency. The 2-unit rack-mount design makes it suitable for bench and cabinet installations.
Key Features
- Output: 60V, 60A, 1.5kW with autoranging output stages
- Wide input: 110-240V ±10% single-phase AC with active power-factor correction (typical 0.99)
- Bidirectional capability: source and sink modes with mains energy recovery
- Regulation modes: CV, CC, CP, CR with fast crossover
- 5" color TFT touch display with intuitive menu control
- 16-bit ADCs and DACs with adjustable control speed
- Integrated function generator with programmable waveforms
- Automotive test modes: LV123, LV124, LV148
- Battery test, fuel cell simulation, and solar cell characterization
- Master-Slave and Share-Bus support for parallel configurations
- Multiple communication interfaces: SCPI, ModBus, LabVIEW, IVI
Applications
- Battery testing and characterization for automotive applications
- Laboratory power supply and electronic load
- Fuel cell and battery simulation
- Solar panel and inverter testing
- Bench and rack-mount testing environments
- Multi-unit high-power system expansion
Included Accessories
- 1x bidirectional power supply device
- 2x remote sensing plugs
- 1x 1.8m USB cable
- 1x DC terminal covers set
- 1x sense terminal cover
- 1x USB stick with documentation and software
- 1x cable tie for strain relief
Specifications
| Maximum Power | 1.5 kW |
| Output Voltage | 60 V |
| Output Current | 60 A |
| Input Voltage | 110-240 VAC |
| Interface | USB, Ethernet (100 MBit) for communication, 1 x USB Host for Data Acquisition |
| Display | 5 TFT Color Touch |
| Series | EA-PSB 10000 2U Series |
| Current Accuracy | ≤0.1% FS |
| Current Range Selector | 50-99.9 |
| Dimensions | 19 x 3.5 x 22" |
| Frequency Range | 45-65 Hz |
| IP Rating | IP20 |
| Mounting Type | Rack Mount |
| Number of Outputs | Single Output |
| Operating Temperature Range | 32-122°F |
| Power Range Selector | 1,000-2,499 |
| Relative Humidity Range | ≤80% |
| Resistance Range | 0.04-80 Ω |
| Safety | EN 61010-1 IEC 61010-1 UL 61010-1 CSA C22.2 No 61010-1 BS EN 61010-1 |
| Storage Temperature | -4-158°F |
| Type | Programmable Bi-Directional DC Power Supply |
| Voltage Accuracy | ≤0.05% FS |
| Voltage Range Selector | 50-99.9 |
