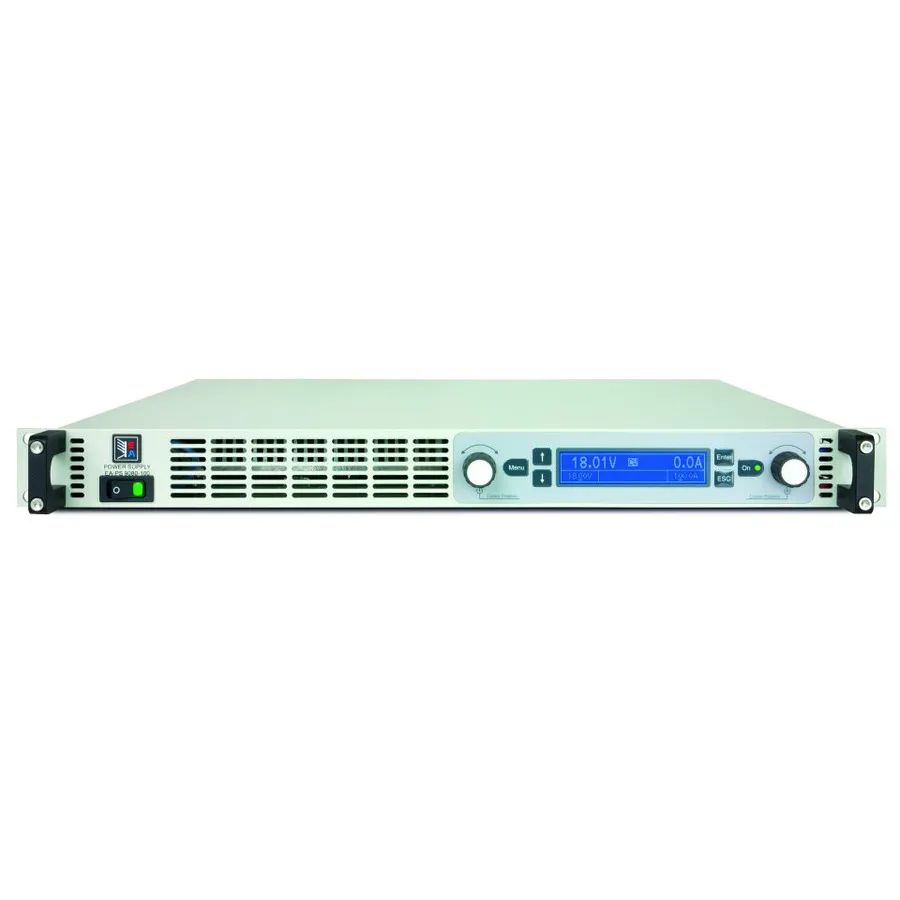

EA Elektro-Automatik EA-PS 9750-12 1U DC Power Supply
Request a quote
EA Elektro-Automatik EA-PS 9750-12 1U is a compact 1U rackmount single-output DC supply delivering 750V at 12A (3000W) with autoranging capability.
Product details
| Model | EA-PS 9750-12 1U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PS 9750-12 1U is a compact single-output programmable DC power supply designed for laboratory and industrial applications. It delivers up to 750V at 12A with a maximum power output of 3000W in a space-saving 1U rackmount format, making it ideal for testing high-voltage equipment and power-sensitive applications.
Key Features
- Output: 750V, 12A, 3000W
- Compact 1U rackmount design for easy integration into test systems
- Flexible autoranging output stage for wide voltage and current combinations while maintaining constant power
- High efficiency up to 95% with wide AC supply range (100–264V)
- Control panel with pushbuttons and blue LCD display for real-time values, setpoints, status, and alarms
- Comprehensive protection: overvoltage (OVP), overcurrent (OCP), overpower (OPP), and overtemperature (OTP)
- Remote sensing capability for accurate voltage measurement at the load
- LabVIEW VI and Windows control software included
Applications
- Testing and development of high-voltage electronic equipment
- Industrial power conversion and conditioning applications
- Laboratory research requiring stable, programmable DC output
- Equipment calibration and verification
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 750 V |
| Current Range Selector | 10-19.9 |
| Output Current | 12 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 100-240 VAC |
| Series | EA-PS 9000 1U Series |
| Number of Outputs | Single Output |
| Rack Space | 1U |
| Special Features | Autoranging |
