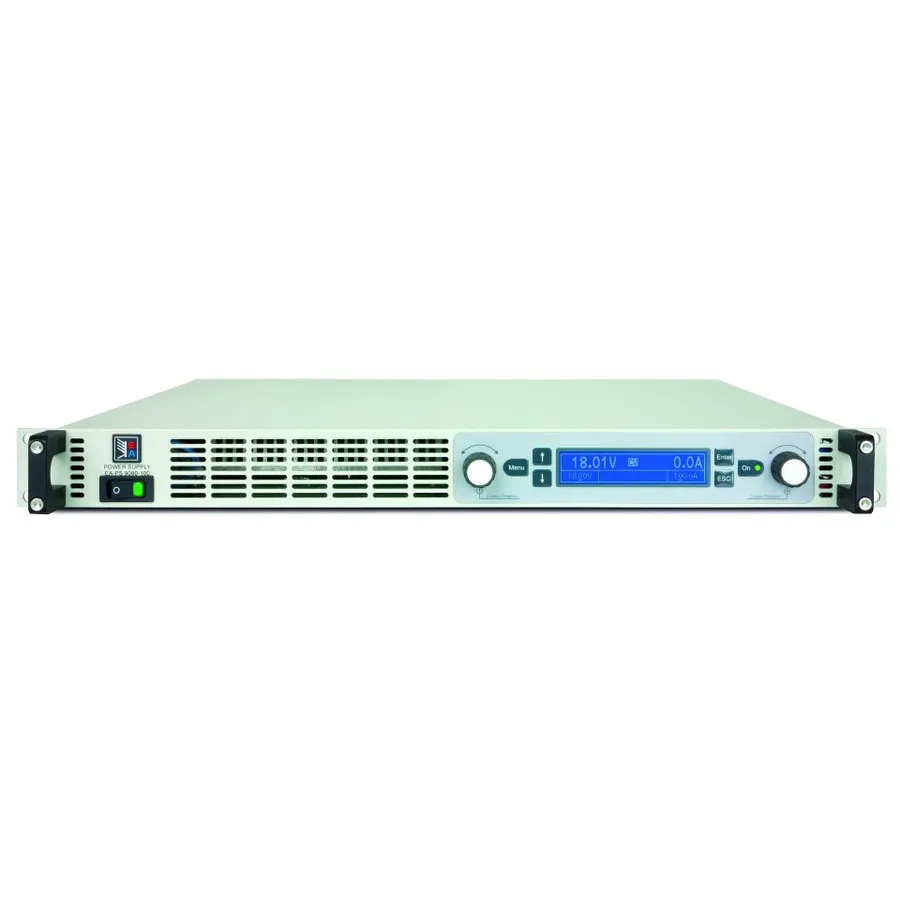

EA Elektro-Automatik EA-PS 9500-10 1U DC Power Supply
Request a quote
EA Elektro-Automatik EA-PS 9500-10 1U programmable DC power supply with 500V/10A output, 1500W power, autoranging output stage, and comprehensive protection.
Product details
| Model | EA-PS 9500-10 1U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PS 9500-10 1U is a compact 1U rackmount programmable DC power supply rated for 500V and 10A output with 1500W power capability. Optimized for high-voltage, low-current applications, it combines laboratory precision with robust industrial protection in a space-efficient form factor. The flexible autoranging output stage automatically adjusts voltage and current ratios within the power limit.
Key Features
- Compact 1U form factor with only 44mm height for standard 19-inch rack mounting
- Output ratings: 500V DC maximum, 10A DC maximum, 1500W power
- Flexible autoranging output stage for optimal voltage-current distribution
- Blue LCD dot-matrix display with real-time monitoring of output values, set values, and device status
- High efficiency up to 95% with active power factor correction
- Comprehensive protection: OVP (overvoltage), OCP (overcurrent), OPP (overpower), OTP (overtemperature)
- Remote sensing for precise voltage regulation at the load point
- Galvanically isolated analog interface with 0-10V or 0-5V control voltages
- Digital interfaces: USB and Ethernet with SCPI and ModBus RTU protocol support
- Included control software: EA Power Control and LabView Virtual Instruments for Windows
- Automatic discharge circuit reduces output voltage safely below 60V DC when powered off
- AC input range: 100-264V with active power factor correction
Applications
- High-voltage laboratory testing and research
- Industrial equipment testing and commissioning
- Power electronics and converter testing
- Capacitor and component testing at elevated voltages
- Prototype development and validation
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 500 V |
| Current Range Selector | 10-19.9 |
| Output Current | 10 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 100-240 VAC |
| Series | EA-PS 9000 1U Series |
| Number of Outputs | Single Output |
| Rack Space | 1U |
| Special Features | Autoranging |
