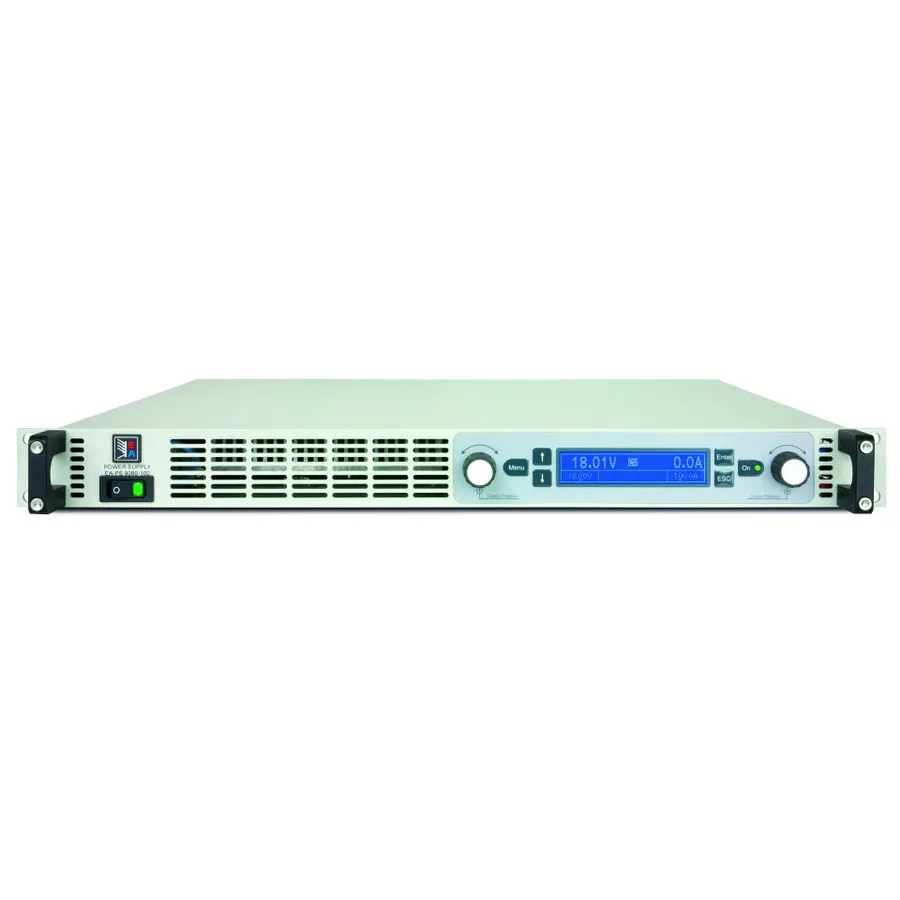

EA Elektro-Automatik EA-PS 9360-15 1U DC Power Supply
Request a quote
EA Elektro-Automatik EA-PS 9360-15 1U is a 1500 W rackmount DC power supply with 360 V/15 A output, 95% efficiency, autoranging stage, and OVP/OCP/OPP/OTP protection circuits.
Product details
| Model | EA-PS 9360-15 1U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PS 9360-15 1U is a compact programmable DC power supply for laboratory and test applications. With 1500 W of output power, 360 V voltage rating, and 15 A maximum current, it delivers flexible power control in a space-saving 1U rackmount form factor. The unit features an autoranging output stage, active Power Factor Correction, and comprehensive protection circuits to safeguard connected equipment.
Key Features
- 1500 W output power with autoranging output stage
- Voltage range: 0–360 V; current range: 0–15 A
- High efficiency up to 95%
- Compact 1U rackmount design (44 mm height)
- Control panel with pushbuttons, rotary knobs, and illuminated blue LCD display
- Flexible power regulation: continuously adjustable from 0–100% manually or remotely
- Active Power Factor Correction (PFC) for AC input range 100–264 VAC
- Remote sensing for accurate output regulation
- Protection circuits: overvoltage (OVP), overcurrent (OCP), overpower (OPP), and overtemperature (OTP)
- Discharge circuit automatically reduces output voltage below 60 V DC when powered off
- Galvanically isolated analog interface with configurable 0–10 V or 0–5 V inputs/outputs
- Digital interfaces: USB and Ethernet for remote control via SCPI commands or ModBus RTU protocol
- Supplied with EA Power Control software and LabView Virtual Instruments (VIs)
- Panel lock function prevents unintentional operation
Applications
- Laboratory testing and development of electronic components
- Equipment commissioning with precise voltage and current control
- Research and development requiring programmable autoranging output
- Burn-in testing of electronic devices
- Integration into automated test systems and custom applications
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 360 V |
| Current Range Selector | 10-19.9 |
| Output Current | 15 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 100-240 VAC |
| Series | EA-PS 9000 1U Series |
| Number of Outputs | Single Output |
| Rack Space | 1U |
| Special Features | Autoranging |
