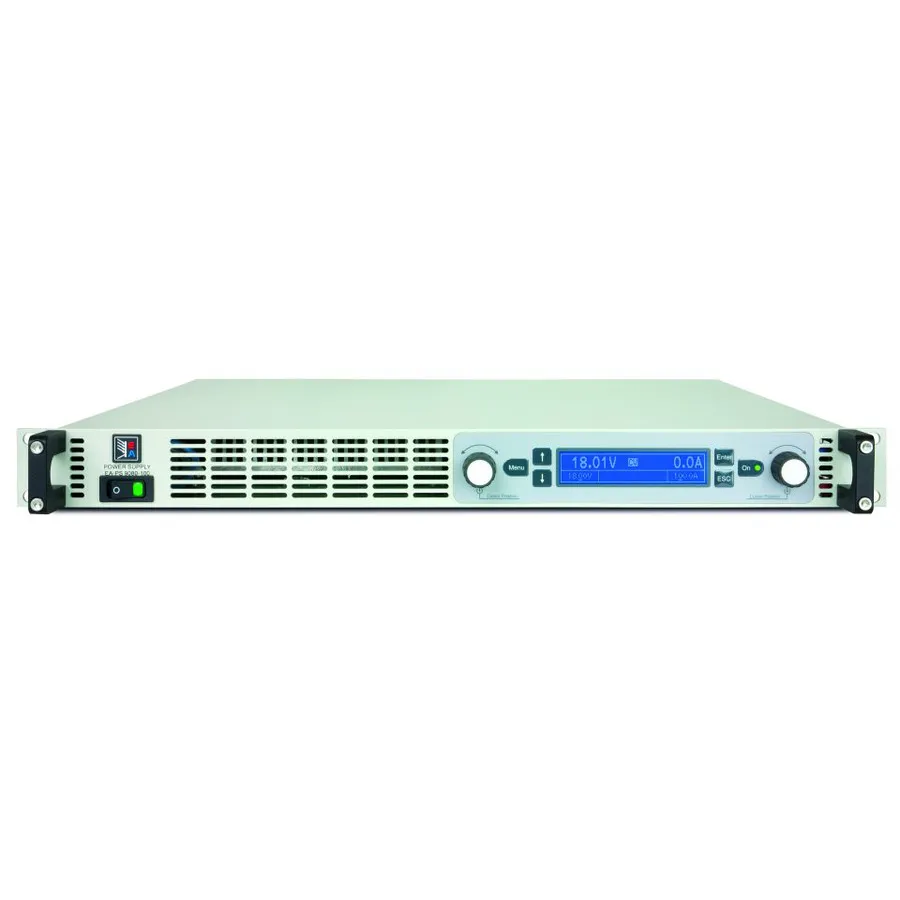

EA Elektro-Automatik EA-PS 9200-50 1U DC Power Supply

Overview

The EA Elektro-Automatik EA-PS 9200-50 1U is a compact programmable DC power supply for laboratory and test applications. With 3000 W of output power, 200 V voltage rating, and 50 A maximum current, it delivers flexible power control in a space-saving 1U rackmount form factor. The unit features an autoranging output stage, active Power Factor Correction, and comprehensive protection circuits to safeguard connected equipment.

Key Features

• 3000 W output power with autoranging output stage
• Voltage range: 0–200 V; current range: 0–50 A
• High efficiency up to 95%
• Compact 1U rackmount design (44 mm height)
• Control panel with pushbuttons, rotary knobs, and illuminated blue LCD display
• Flexible power regulation: continuously adjustable from 0–100% manually or remotely
• Active Power Factor Correction (PFC) for AC input range 100–264 VAC
• Remote sensing for accurate output regulation
• Protection circuits: overvoltage (OVP), overcurrent (OCP), overpower (OPP), and overtemperature (OTP)
• Discharge circuit automatically reduces output voltage below 60 V DC when powered off
• Galvanically isolated analog interface with configurable 0–10 V or 0–5 V inputs/outputs
• Digital interfaces: USB and Ethernet for remote control via SCPI commands or ModBus RTU protocol
• Supplied with EA Power Control software and LabView Virtual Instruments (VIs)
• Panel lock function prevents unintentional operation

Applications

• Laboratory testing and development of electronic components
• Equipment commissioning with precise voltage and current control
• Research and development requiring programmable autoranging output
• Burn-in testing of electronic devices
• Integration into automated test systems and custom applications
