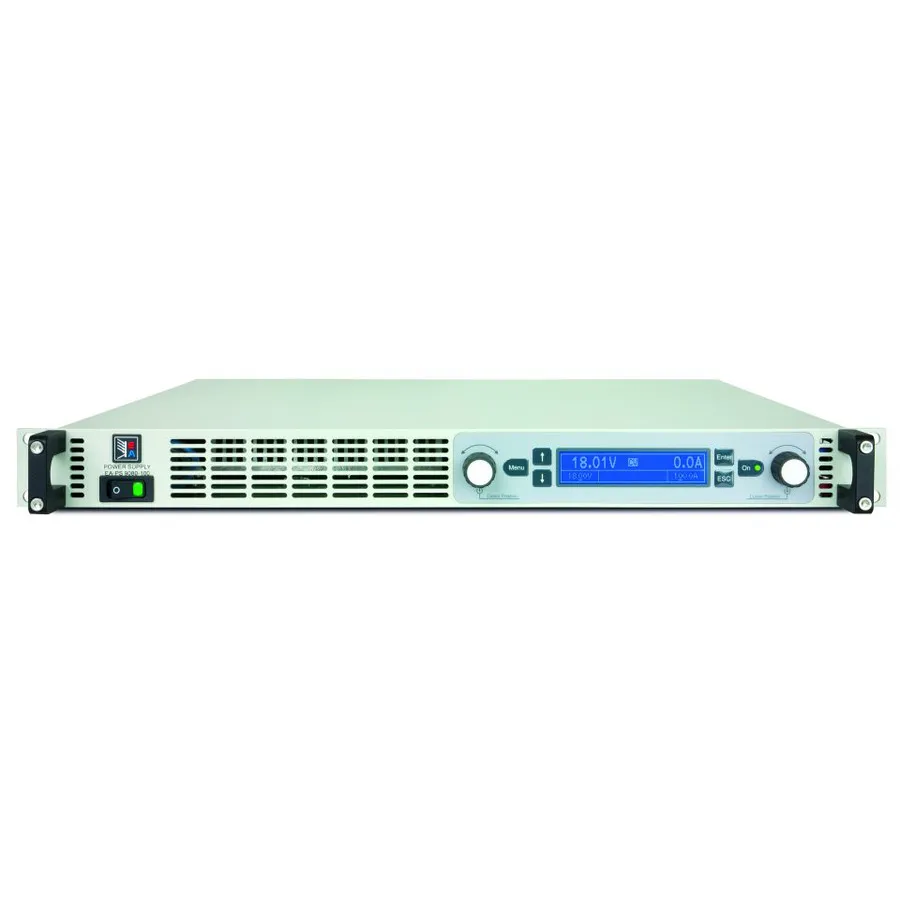

EA Elektro-Automatik EA-PS 9080-100 1U Programmable DC Power Supply

Overview

The EA Elektro-Automatik EA-PS 9080-100 1U is a compact programmable laboratory DC power supply delivering up to 3 kW of power. Housed in a single-unit (1U) rackmount form factor measuring only 44 mm in height, this supply is ideal for space-constrained laboratory and rack-mounted test systems. With autoranging output capability, active PFC, and comprehensive protection circuits, it provides precise voltage and current control via manual pushbutton controls or remote analog and digital interfaces.

Key Features

• Output: 0–80V DC, 0–100A DC, maximum 3 kW
• Compact 1U rackmount design: only 44 mm height
• Flexible autoranging output stage for wide voltage–current combinations
• High efficiency: up to 95%
• Active Power Factor Correction (input range 100–264V)
• Blue LCD dot-matrix display for values, set points, status, and alarms
• Manual control: two rotary knobs and six pushbuttons with panel lock feature
• Protection circuits: OVP (overvoltage), OCP (overcurrent), OPP (overpower), OTP (overtemperature)
• Discharge circuit for safe capacitor discharge below 60V DC
• Remote sensing capability for accurate load voltage measurement
• Galvanically isolated analog interface: 0–5V or 0–10V control of voltage, current, and power
• Digital interfaces: USB and Ethernet with SCPI and ModBus support
• Software: EA Power Control and LabVIEW Virtual Instruments (VIs)

Applications

• Laboratory and bench-top DC power testing
• Compact rack-mounted test systems
• Component characterization and validation
• Production quality control and burn-in testing
• Automated test systems via digital interfaces

Included Accessories

• Control panel with pushbuttons and blue LCD
• Remote sensing capability via isolated terminals
• Discharge circuit for safe operation
• Protection circuits built-in
