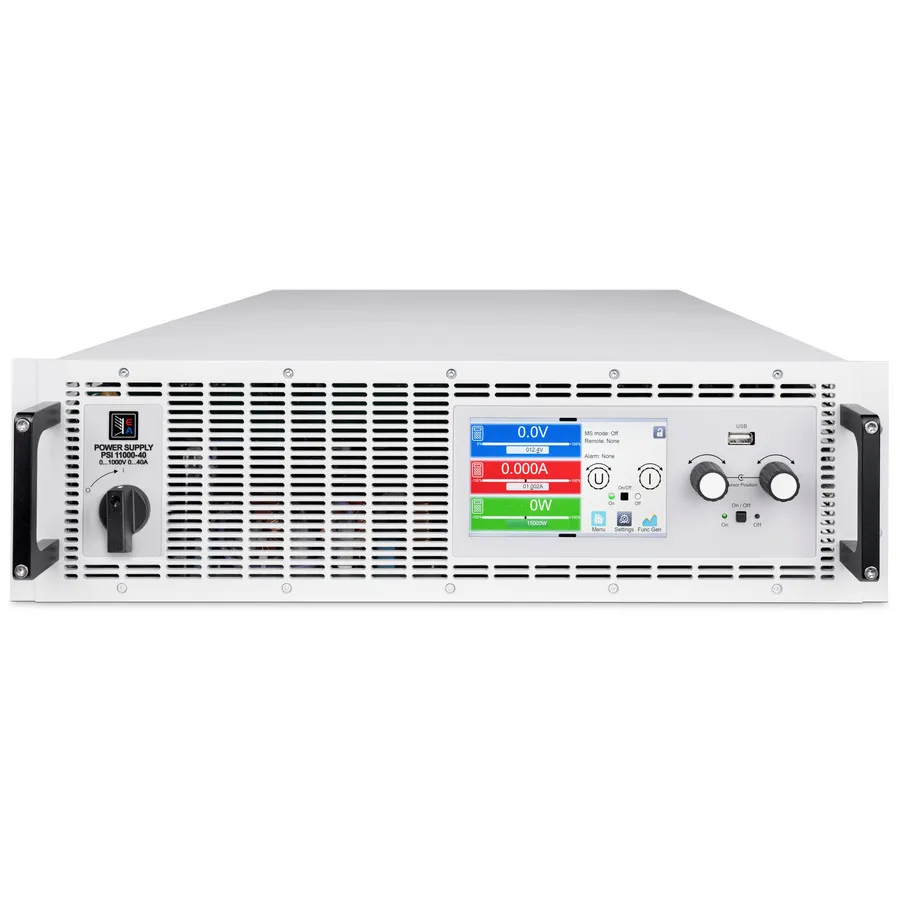

EA Elektro-Automatik EA-PS 11500-20 3U DC Power Supply
Request a quote
EA Elektro-Automatik EA-PS 11500-20 is a 3U programmable DC power supply delivering 1500V/20A (10kW) with 96% efficiency and Master-Slave parallel capabilities.
Product details
| Model | EA-PS 11500-20 3U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PS 11500-20 is a 3U programmable DC power supply from the PS 10000 series, delivering 0–1500V at up to 20A with a maximum power output of 10kW. Designed for demanding laboratory, manufacturing test, and industrial applications, this unit offers exceptional efficiency exceeding 96% and supports both standalone and multi-unit parallel configurations.
Key Features
- Output voltage range: 0–1500V DC
- Output current range: 0–20A DC
- Maximum power: 10kW
- Efficiency: >96%
- Autoranging output stage for flexible voltage/current combinations
- 5-inch TFT color touchscreen with intuitive interface
- Regulation modes: CV, CC, CP with fast crossover
- Master-Slave bus for parallel operation (up to 64 units)
- Galvanically isolated Share-Bus for load distribution
- 16-bit ADC/DAC for high-resolution control and measurement
- Multiple interfaces: USB, Ethernet, analog programming
- Three-phase input: 208–480V ±10% AC
- Active Power Factor Correction (~0.99)
- Flexible control speed modes: Normal, Fast, Slow
Applications
- Relay testing in manufacturing and production
- Onboard charger (OBC) testing and validation
- Battery and power storage system testing
- Industrial component testing
- Power electronics development and characterization
Included Accessories
- Power supply device
- 2x Remote sensing plugs
- 1.8m USB cable
- DC terminal covers
- Sense terminal cover
- USB stick with documentation and software
- AC connector plug (clamp type)
- AC cable strain relief kit
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1.5 kV |
| Current Range Selector | 20-29.9 |
| Output Current | 20 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 10 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208-480 VAC |
| Series | EA-PS 10000 3U Series |
| Number of Outputs | Single Output |
| Special Features | Autoranging |
