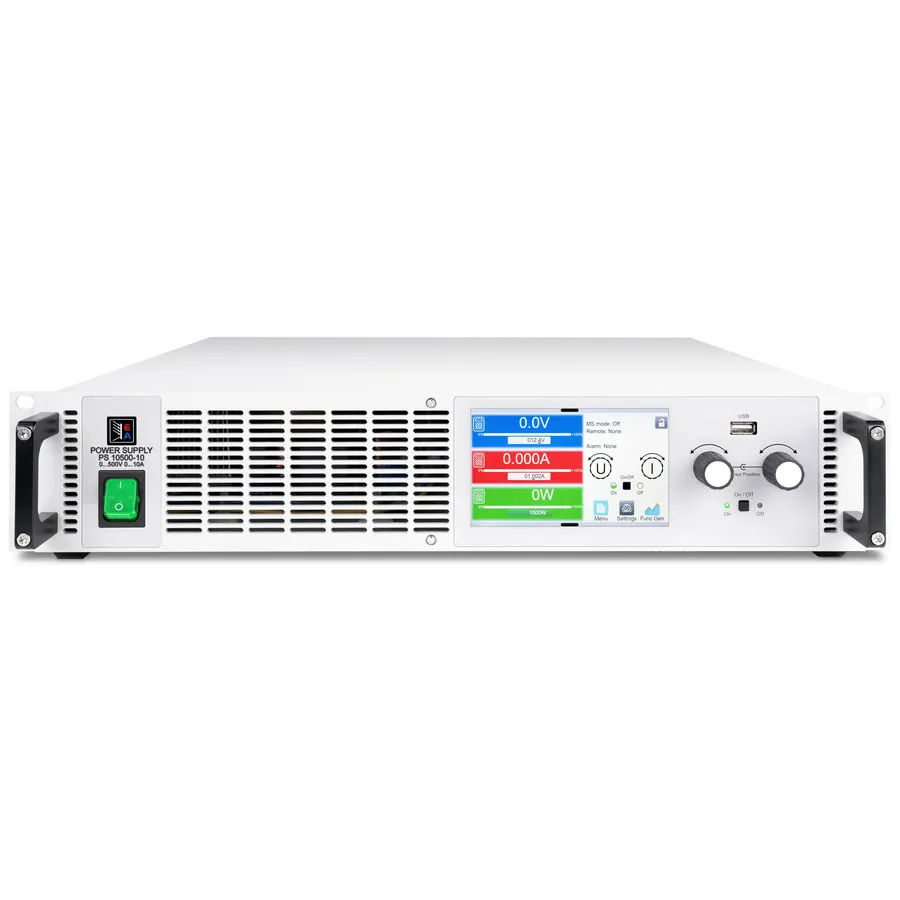

EA Elektro-Automatik EA-PS 10500-10 2U DC Power Supply
EA-PS 10500-10 2U is a programmable DC supply with 0-500V at up to 10A output (1.5 kW), true autoranging, 95%+ efficiency, compact 2U rack mount, and versatile laboratory capabilities.
Product details
| Model | EA-PS 10500-10 2U |
| Manufacturer | EA Elektro-Automatik |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PS 10500-10 2U is a programmable DC power supply from the PS 10000 series, purpose-built for laboratory testing and research applications requiring higher output voltage. It converts single-phase AC mains (110-240V) into regulated DC voltage with efficiency exceeding 95%, featuring true autoranging technology that delivers maximum versatility for voltage and current combinations across a wide range of test scenarios.
The compact 2U rackmount form factor includes a 5-inch TFT color touch display, multiple digital and analog interfaces, and Master-Slave bus capability for parallel operation, enabling users to construct scalable systems for applications requiring extended power and current capacity.
Key Features
- Output voltage 0 to 500V, current 0 to 10A, maximum power 1.5 kW
- Wide-range single-phase AC input 110-240V ±10%
- True autoranging flexible output stages with constant power characteristic
- Efficiency exceeding 95% with active power-factor correction typical 0.99
- 5-inch TFT color touch display with intuitive user interface
- Regulation modes CV, CC, CP with fast crossover
- 16-bit ADCs and DACs with selectable control speed (Normal, Fast, Slow)
- Galvanically isolated Share-Bus for parallel operation
- Master-Slave bus for parallel connection of up to 64 units
- Multiple interfaces: USB Host, Ethernet, analog I/O, connector for isolated analog program and monitor
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Applications
- Laboratory testing and research requiring higher voltage DC supplies
- Component qualification and validation testing
- Relay and electronic device production testing
- Multi-unit parallel systems for extended power and current capacity
- Research environments requiring precise voltage and current control up to 500V
Included Accessories
- Remote sensing plugs (pair)
- USB cable 1.8m (59 ft)
- Set of DC terminal covers
- Sense terminal cover
- USB stick with documentation and software
- Cable tie for strain relief
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 500 V |
| Current Range Selector | 10-19.9 |
| Output Current | 10 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 110-240 VAC |
| Series | EA-PS 10000 2U Series |
| Number of Outputs | Single Output |
| Special Features | Autoranging |
