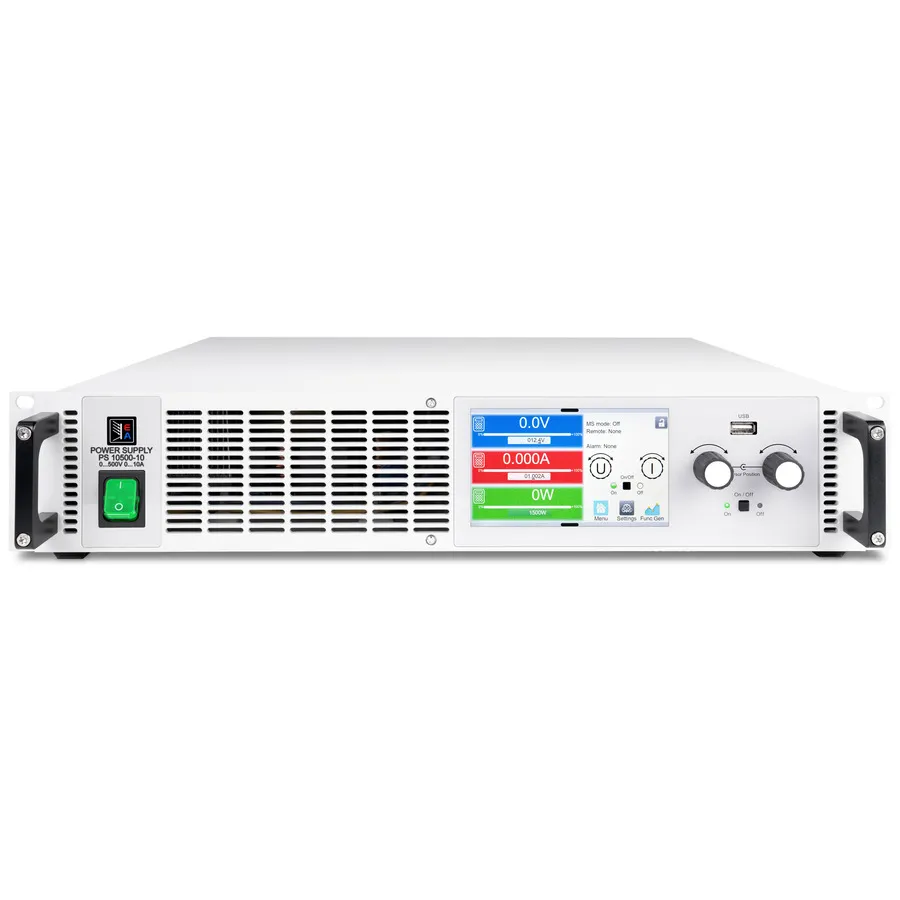

EA Elektro-Automatik EA-PS 10360-15 2U DC Power Supply

Overview

The EA Elektro-Automatik EA-PS 10360-15 2U is a compact programmable DC laboratory power supply from the PS 10000 series. It converts grid energy into regulated high-voltage DC output with over 95% efficiency, featuring autoranging output stages. This compact 2U rack-mount unit is ideal for laboratory and test applications requiring high voltage at lower currents, with the flexibility to extend capabilities through parallel multi-unit configurations.

Key Features

• Output: 0 to 360 V, 0 to 15 A, up to 1.5 kW power
• Autoranging output stages with constant power characteristic
• 5-inch TFT color touch display with intuitive user interface
• Regulation modes: CV, CC, CP with fast crossover
• Active Power-Factor-Correction (typical 0.99)
• Efficiency exceeding 95% with 16-bit ADCs and DACs for high resolution
• Input range: 110 V to 240 V ±10% single-phase AC
• Master-Slave bus for parallel operation of up to 64 units
• Galvanically isolated Share-Bus for equal load distribution
• Interfaces: USB, Ethernet, SCPI, ModBus, LabVIEW, IVI drivers

Applications

• Laboratory power supply for high-voltage circuit testing
• Automated test systems for high-voltage components
• Device charging and validation at elevated voltages
• Compact lab setups requiring high voltage capability

Included Accessories

• Remote sensing plugs (qty 2)
• USB cable (1.8 m)
• DC terminal covers
• Sense terminal cover
• USB stick with documentation and software
• Cable tie for strain relief
