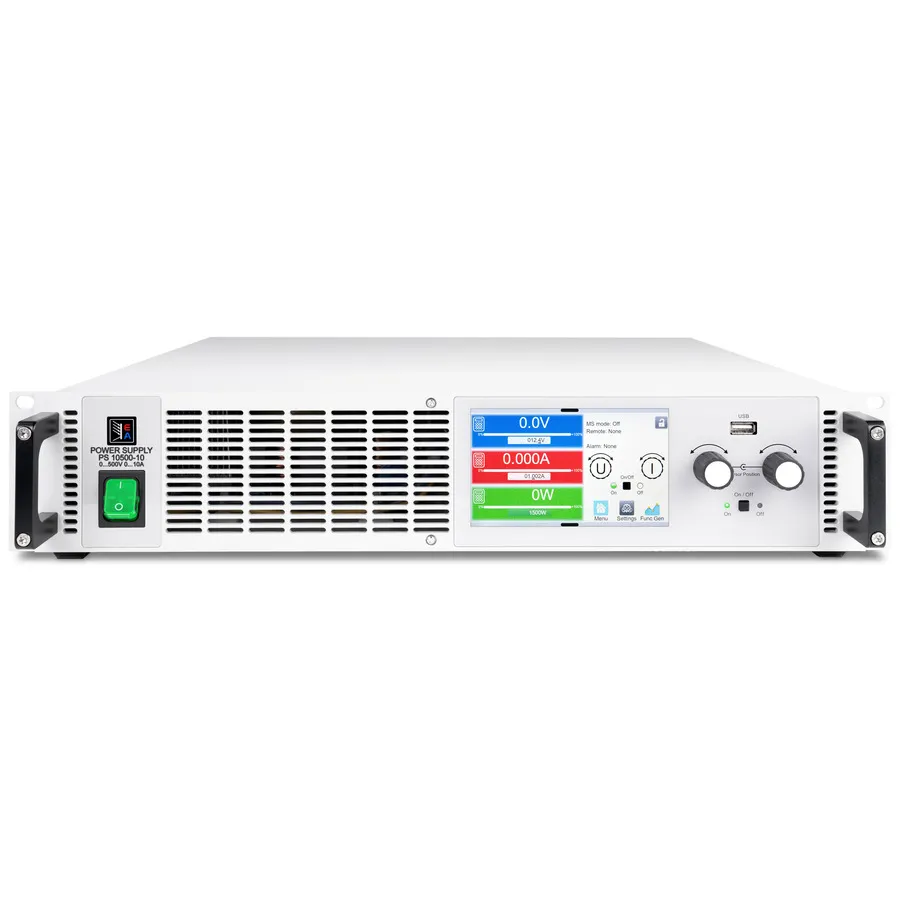

EA Elektro-Automatik EA-PS 10200-50 2U DC Power Supply

Overview

The EA Elektro-Automatik EA-PS 10200-50 2U is a programmable DC laboratory power supply from the PS 10000 series. It converts grid energy into regulated DC voltage with over 96% efficiency, offering flexible autoranging output stages. This compact 2U rack-mount unit is designed for laboratory and test applications requiring precise, programmable power delivery across a wide voltage and current range.

Key Features

• Output: 0 to 200 V, 0 to 50 A, up to 3 kW power
• Autoranging output stages with constant power characteristic
• 5-inch TFT color touch display with intuitive user interface
• Regulation modes: CV, CC, CP with fast crossover
• Active Power-Factor-Correction (typical 0.99)
• Efficiency exceeding 95% with 16-bit ADCs and DACs for high resolution
• Input range: 110 V to 240 V ±10% single-phase AC
• Master-Slave bus for parallel operation of up to 64 units
• Galvanically isolated Share-Bus for equal load distribution
• Interfaces: USB, Ethernet, SCPI, ModBus, LabVIEW, IVI drivers

Applications

• Laboratory power supply for circuit testing and development
• Automated test systems for components and relays
• Device charging and validation testing
• Multi-unit parallel systems for higher power capability

Included Accessories

• Remote sensing plugs (qty 2)
• USB cable (1.8 m)
• DC terminal covers
• Sense terminal cover
• USB stick with documentation and software
• Cable tie for strain relief
