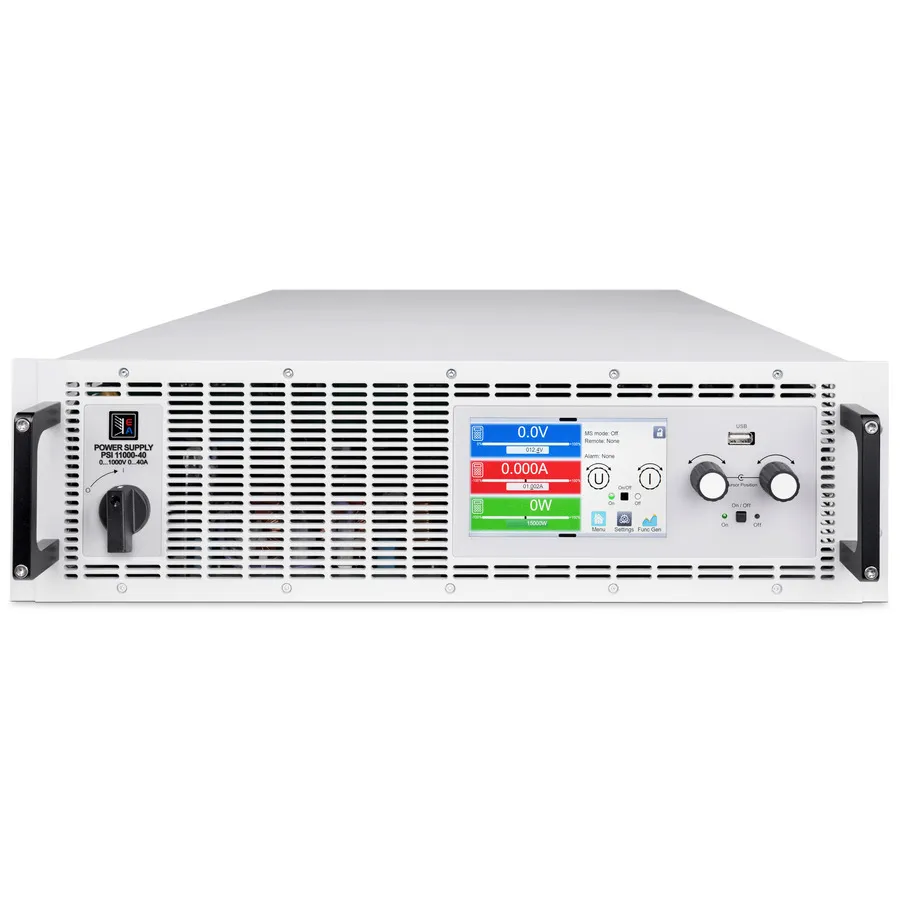

EA Elektro-Automatik EA-PS 10080-510 3U Programmable DC Power Supply

Overview

The EA Elektro-Automatik PS 10000 series includes programmable DC laboratory power supplies that convert grid power into regulated DC voltage with efficiency exceeding 96%. These units feature autoranging technology to deliver flexible voltage and current combinations within a single device, enabling broader test coverage without oversizing equipment.

Key Features

• Autoranging output stages for flexible voltage and current operation across a wide range
• High-efficiency switching design with active power-factor correction (typical 0.99)
• 5-inch color TFT touch display with intuitive user interface
• Multiple regulation modes: CV (Constant Voltage), CC (Constant Current), CP (Constant Power) with fast crossover
• 16-bit ADCs and DACs for precise measurement and control, with adjustable control speed (Normal, Fast, Slow)
• Wide AC input range: 208–480V three-phase +10%
• Galvanically isolated Share-Bus and Master-Slave-Bus for parallel operation of up to 64 units
• Comprehensive digital interfaces: USB Host, USB device, Ethernet, and isolated analog control ports
• Data logging and sequencing capability via USB stick
• SCPI and ModBus command languages, LabVIEW and IVI driver support

Applications

• Relay testing and validation in production environments
• Onboard charger and EV charging system testing
• Laboratory research and prototype testing
• Power electronics and battery testing
• Industrial test automation and control systems

Included Accessories

• Power supply device
• 2 x Remote sensing plugs
• USB cable (1.8 m)
• Set of DC terminal covers
• Sense terminal cover
• USB stick with documentation and software
• AC connector plug (Clamp Type)
• AC cable strain relief set
