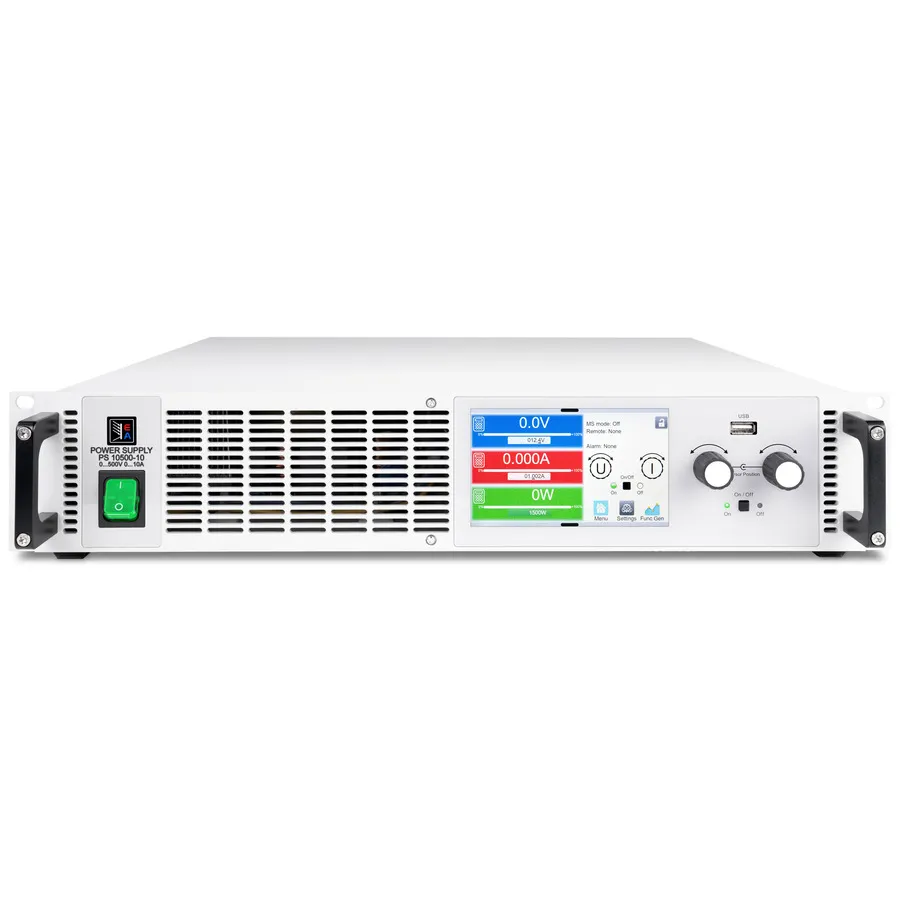

EA Elektro-Automatik EA-PS 10060-120 2U DC Power Supply

Overview

The EA-PS 10060-120 2U is a programmable DC power supply from the PS 10000 series, designed for laboratory and testing applications. This single-output supply delivers regulated DC voltage with over 96% efficiency and features flexible autoranging output stages that adapt to various voltage and current requirements.

Key Features

• Voltage range 0 to 60V, current 0 to 120A, power 0 to 7.2 kW
• 2-unit 19-inch rack-mount frame with 5-inch TFT color touch display
• Wide input range: 110V-240V ±10% single-phase AC with active power-factor correction (typical 0.99)
• Regulation modes: CV, CC, CP with fast crossover
• Autoranging capability for flexible output characteristics
• 16-bit ADCs and DACs with adjustable control speed (Normal, Fast, Slow)
• Master-Slave and Share-Bus interfaces for parallel operation of up to 64 units
• Multiple command languages: SCPI, ModBus, LabVIEW, IVI compatible
• Remote sensing terminals and USB host port for data logging

Applications

• Laboratory power supply for general testing and measurement
• Battery and fuel cell testing and characterization
• Electronic load emulation
• Device-under-test parameter verification
• Parallel system configuration for higher power requirements

Included Accessories

• 1x remote sensing plugs (pair)
• 1x 1.8m USB cable
• 1x DC terminal covers set
• 1x sense terminal cover
• 1x USB stick with documentation and software
• 1x cable tie for strain relief
