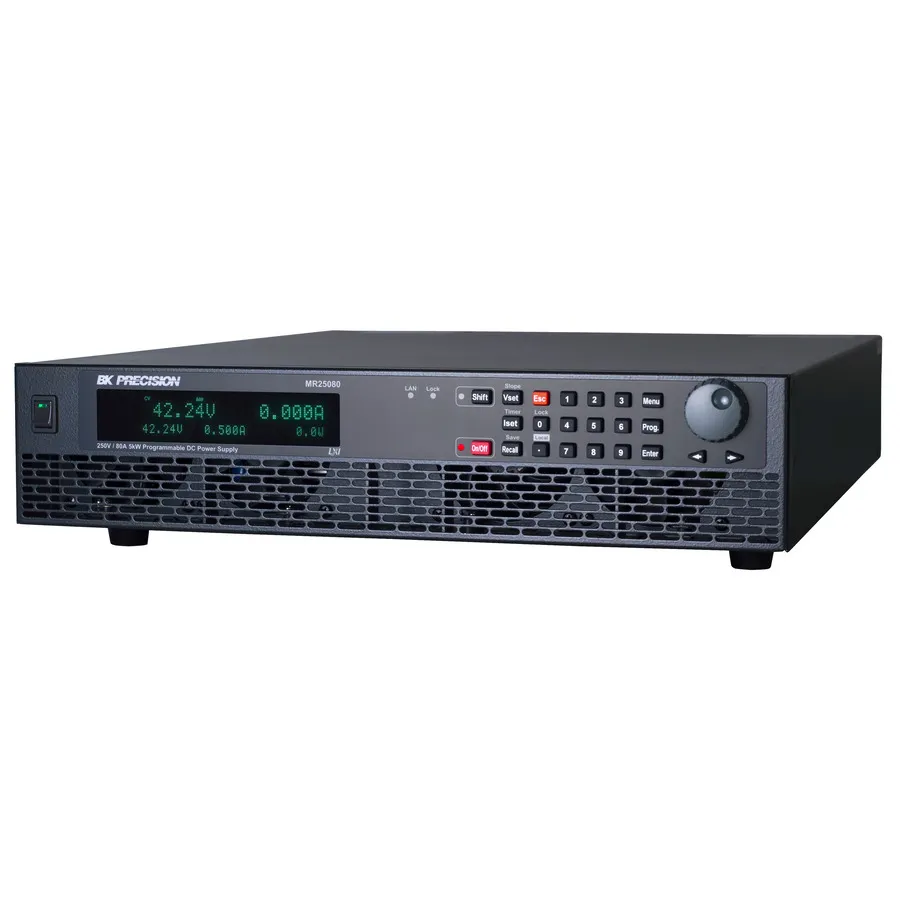

B&K Precision MR25080 HV DC Power Supply
Request a quote
B&K Precision MR25080 delivers 5kW output with multi-range operation up to 250V/80A in compact 2U form, featuring USB, GPIB, LAN interfaces and Solar Array Simulator function.
Product details
| Model | MR25080 |
| Manufacturer | B&K Precision |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The B&K Precision MR25080 is a multi-range high voltage DC power supply delivering up to 5kW of clean output power in a compact 2U form factor. Designed for both benchtop use and integration into automated test systems, it features excellent voltage regulation, low noise output, and supports multiple interfaces for remote control including USB, GPIB, and LXI-compliant LAN.
Key Features
- Output range: 0–250V, 0–80A with multi-ranging capability
- 5kW maximum output power in 2U form factor
- Fast command response time of 10 ms
- Multiple control interfaces: USB (USBTMC), RS232, GPIB, and LXI-compliant LAN
- Galvanically isolated analog control and monitoring interface
- Built-in Solar Array Simulator (SAS) function for photovoltaic I-V curve generation
- Protection modes: OVP, OCP, OPP, OTP, and foldback protection
- Adjustable voltage and current slew rates
- Internal list mode programming with up to 100 programmable steps
- Remote sense input to compensate for voltage drop
- Parallel operation capability for increased output power
- Included LabVIEW, IVI-C, and IVI.NET drivers
- cTUVus certification (UL and CSA compliant)
Applications
- Automated electronic test system applications
- Solar inverter testing and verification
- High-voltage component characterization
- Benchtop research and development
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 250 V |
| Current Range Selector | 50-99.9 |
| Output Current | 80 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Bench Top |
| Input Voltage | 200-240 VAC |
| Series | MR Series |
| Display | Digital |
| Interface | GPIB,USB,LAN,LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Multi Ranging, Remote Sense, Single Phase |
