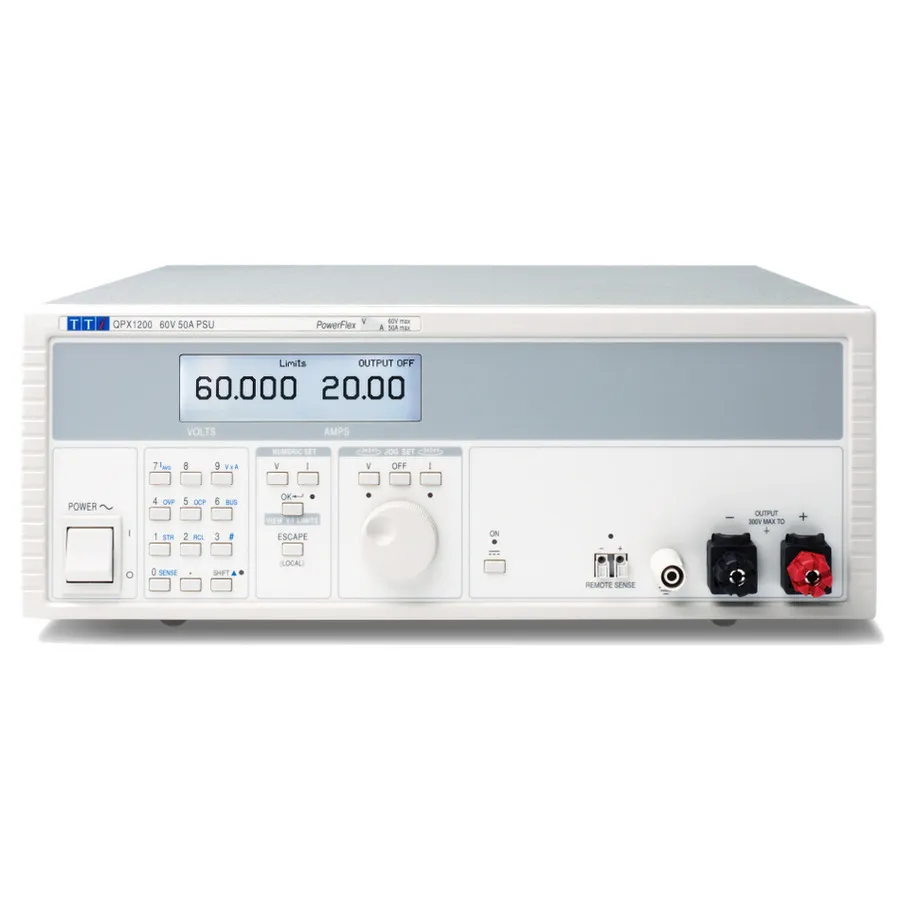

Aim-TTi QPX1200SP DC Power Supply
1.2kW single-output DC power supply with PowerFlex design, up to 60V/50A, linear regulation, and USB/RS-232/LAN control.
Product details
| Model | QPX1200SP |
| Manufacturer | Aim TTi |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Aim-TTi QPX1200SP is a 1.2kW single-output DC laboratory power supply designed for both bench-top and system applications. It provides flexible voltage and current combinations up to 60V at 50A within its 1200W power envelope, featuring the PowerFlex design that enables higher currents at lower voltages compared to conventional fixed-limit power supplies.
The supply includes linear final regulation, which provides exceptionally low output noise and fast transient response. Remote control capabilities via USB, RS-232, and LAN (LXI-C) interfaces make it suitable for automated testing and system integration.
Key Features
- 1200W maximum power output with PowerFlex design
- Voltage/current combinations up to 60V/50A
- Linear final regulation for low output noise
- 1mV setting resolution
- Variable OVP and OCP protection
- Multiple non-volatile setting memories
- Direct numeric entry and spin wheel control
- Remote control via USB, RS-232, and LAN (LXI)
- Bench or rack mounting options
Applications
- Laboratory and test bench power applications
- System and OEM equipment testing
- Electronic device development and validation
- Automated testing systems
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 50-99.9 |
| Output Current | 50 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.2 kW |
| Mounting Type | Bench Top |
| Input Voltage | 110-240 VAC |
| Series | QPX Series |
| Display | LCD |
| Interface | USB,LAN,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 4U |
| Special Features | Remote Control, Remote Sense, Read Back |
