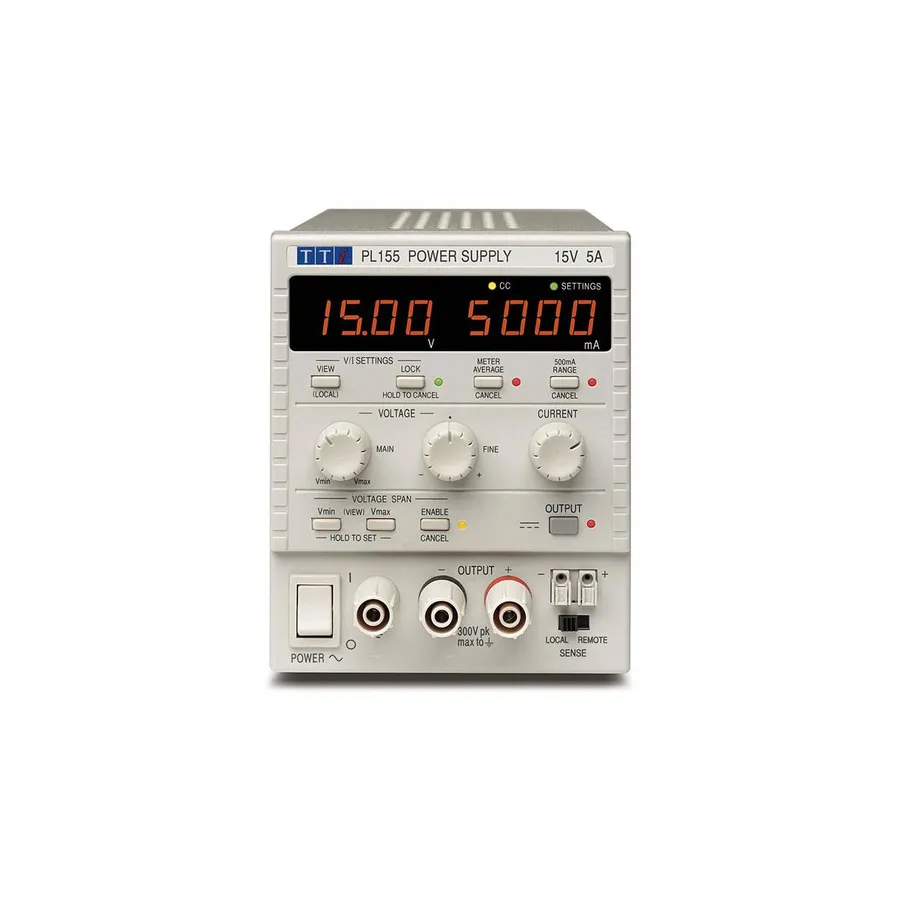

Aim TTi PL155-P(G) DC Power Supply
Aim TTi PL155-P(G) is a 75W linear-regulated DC power supply with 0–15V/5A output, ultra-low 0.4mV RMS noise, S-Lock digital control, and comprehensive bus interfaces (USB/RS232/LAN/GPIB with LXI).
Product details
| Model | PL155-P(G) |
| Manufacturer | Aim TTi |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Aim TTi PL155-P(G) is a single-output DC power supply delivering 75W of power with exceptional performance and comprehensive digital control capabilities. Featuring linear voltage regulation from 0V to 15V at up to 5A, this supply offers ultra-low output noise, high measurement accuracy, and bus programmability via USB, RS232, LAN (LXI-compliant), and GPIB interfaces. The combination of user-friendly analog controls with S-Lock digital stability makes it suitable for both laboratory bench-top and automated rack-mount system applications.
Key Features
- Output range: 0–15V at 0–5A (75W total power)
- Ultra-low linear-regulated output noise: 0.4mV RMS with tightly specified pk-pk noise
- High-accuracy four-digit digital meters for voltage and current measurement
- S-Lock feature digitally locks voltage and current settings with instrumentation-grade DAC stability
- V-Span function allows redefining voltage control end-stops for application-specific ranges
- DC output switch and selectable local/remote voltage sensing
- Analog remote control of voltage and current (non-isolated)
- Bus programmable: USB, RS232, LAN (LXI-compliant), and GPIB (included with PL155-P(G))
- IVI drivers provided for LabView, LabWindows, and Agilent VEE compatibility
- Compact 1/4-rack 3U form factor with fan-assisted convection cooling
Applications
- General-purpose laboratory power supply for circuit development and testing
- Rack-mount system integration with multiple-unit parallel configurations
- Automated test equipment (ATE) and GPIB-based test systems
- Low-noise power for sensitive analog circuits and instrumentation
- Educational settings and technical training programs
Interface Options
- Rear power terminals for rack-mount applications
- USB and RS232 interfaces for legacy and modern PC connectivity
- LAN (Ethernet) with LXI compliance for networked control
- GPIB (IEEE-488) interface included standard with PL155-P(G) model
- Analog remote control of voltage/current (non-isolated)
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 15 V |
| Current Range Selector | 5-9.9 |
| Output Current | 5 A |
| Power Range Selector | 1-199 |
| Power Rating | 75 W |
| Mounting Type | Bench Top |
| Input Voltage | 115/230 VAC |
| Series | PL Series |
| Display | LED |
| Interface | GPIB,USB,LAN,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | Analog Remote Control, Linear, S-Lock, V-Span |
