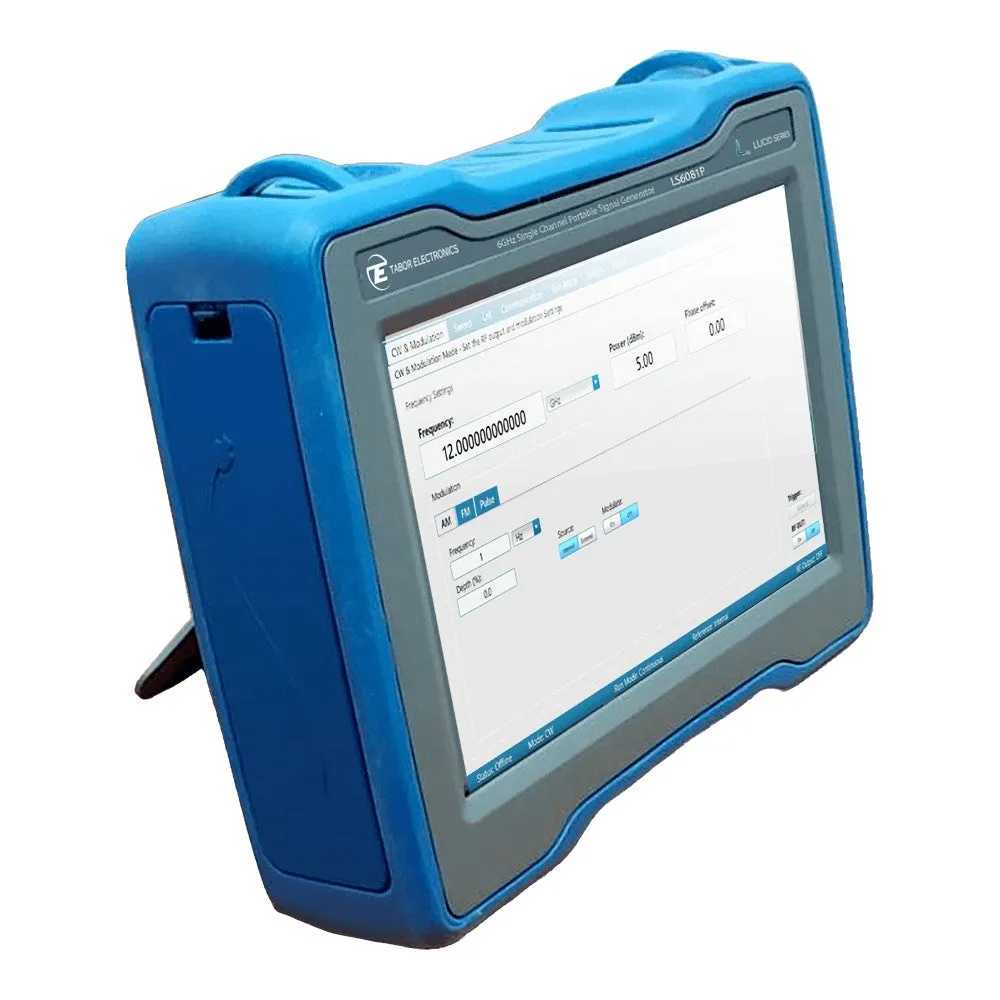

Tabor LSX2091P 20GHz Microwave Signal Generator
Request a quote
Tabor LSX2091P is a portable 20GHz microwave signal generator with 10-inch touchscreen, tablet-like design, and 1-hour battery operation for laboratory and field use.
Product details
| Model | LSX2091P |
| Manufacturer | Tabor |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Tabor LSX2091P is a portable 20GHz single-channel microwave signal generator combining laboratory-grade performance with field-ready portability. Its modern tablet-like design features a 10-inch touchscreen display, one-hour battery operation, and exceptional signal integrity, making it suitable for both benchtop and portable applications in RF and microwave engineering.
Key Features
- 20GHz frequency range (100kHz to 20GHz) with 0.001Hz resolution
- Superior phase noise: -134dBc/Hz at 1GHz, -115dBc/Hz at 10GHz (10kHz offset)
- Output power from -50dBm to +10dBm calibrated (-70dBm to +15dBm settable)
- 0.01dB amplitude resolution
- Multiple modulation types: AM, FM, PM, Sweep, and Pulse
- 10-inch touchscreen suited for day and night use
- Field-ready with 1-hour battery operation
- Remote programmability via MATLAB, Python, LabVIEW
- Removable uSD card for instrument security
Applications
- Laboratory signal generation and testing
- Field deployment for RF and microwave measurements
- Analog communication system testing
- Signal integrity verification
Specifications
| Frequency Range | 100kHz to 20GHz |
| Frequency Resolution | 0.001Hz |
| Output Power (Calibrated) | -50dBm to +10dBm |
| Output Power (Settable) | -70dBm to +15dBm |
| Amplitude Resolution | 0.01dB |
| Phase Noise @ 1GHz | -134dBc/Hz (10kHz offset) |
| Phase Noise @ 10GHz | -115dBc/Hz (10kHz offset) |
| Non-Harmonics | -70dBc |
| Modulation Types | AM, FM, PM, Sweep, Pulse |
| Display | 10-inch touchscreen |
| Battery Life | 1 hour |
| Channels | 1 |
