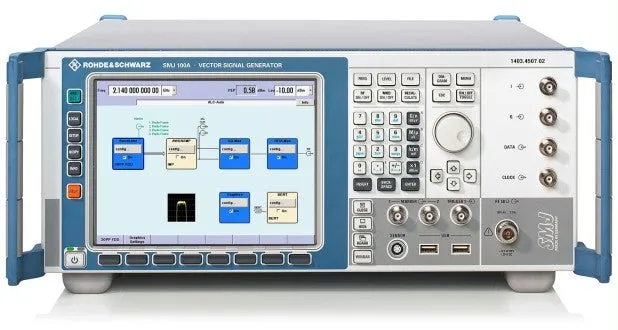

Rohde & Schwarz SMJ100A Vector Signal Generator
Request a quote
Rohde & Schwarz SMJ100A — vector signal generator (100 kHz–6 GHz) with 200 MHz RF bandwidth, 128 Msample waveform memory, and multiple modulation standards.
Product details
| Model | SMJ100A (1403.4507.02) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz SMJ100A is a versatile vector signal generator that covers frequency ranges from 100 kHz to 3 GHz or 6 GHz depending on the selected option. Engineered for diverse applications in research and development, production, and baseband signal generation, it delivers high signal quality with advanced modulation capabilities and a convenient graphical user interface. The instrument excels in scenarios requiring real-time signals or precalculated waveform playback.
Key Features
- Frequency range: 100 kHz to 3 GHz or 6 GHz
- High signal quality with SSB phase noise of -131 dBc (1 GHz, 20 kHz offset)
- IQ modulator with 200 MHz RF bandwidth
- Arbitrary waveform generator: up to 128 Msample length
- Support for GSM/EDGE, 3GPP FDD, CDMA2000, WiMAX, LTE, and HSPA standards
- Very short frequency and level setting times: <2 ms (450 µs in List mode)
- Electronic attenuator across full frequency range and level range
- Color SVGA display with intuitive graphical user interface
- Support for R&S WinIQSIM2 and MATLAB waveform generation
Applications
- Digital RF transmission research and development
- Wireless standards testing (3GPP, CDMA, WiMAX, LTE)
- Production testing and verification
- Signal quality validation and modulation analysis
Included Accessories
- Power cable
- Quick Start Guide
- CD-ROM with Operating and Service Manual
Specifications
| High Signal Quality | IQ modulator with 200 MHz RF bandwidth Very low SSB phase noise of typ. - 133 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth) Wideband noise of typ. -153 dBc (CW, f = 1 GHz, >10 MHz carrier offset, 1 Hz measurement bandwidth) Excellent ACLR performance of typ. +69 dB for 3GPP FDD (test model 1, 64 DPCHs) High-stability reference oscillator as standard High level repeatability |
| Ideal for Production | Very short frequency and level setting times (<2 ms); only 450 µs in List mode Electronic attenuator up to 6 GHz over the full level range Flexible high speed measurements with RF List mode and multisegment waveforms |
| Baseband Versatility | Support of EUTRA/LTE signal generation Support of WiMAX™ IEEE 802.16-2004/Corr1-2005, 802.16e-2005, and WiBro Four code channels in realtime for 3GPP FDD, support of HSPA and HSPA+ Mixed frames with GSM, EDGE and EGPRS2 slots in one frame (with same symbol rate per frame) Baseband generator with universal coder for realtime signal generation Arbitrary waveform generator with 16 Msample, 64 Msample or 128 Msample Arbitrary waveform generator supported by R&S®WinIQSIM2™ and R&S®WinIQSIM™ simulation software |
| Ease of Use | Color display with 800 × 600 pixels (SVGA format) Intuitive user interface with graphical display of signal flow (block diagram) Graphical display of baseband signal through built-in transients recorder Context-sensitive Help system Tooltips for all edit fields |
| Connectivity | Optional digital I/Q output; support of R&S®EX-IQ-Box for flexible data formats and clock generation Support of R&S®NRP power sensors Remote control via LAN (Gigabit Ethernet, VXI11) and GPIB Remote operation via Windows Remote Desktop or VNC User-selectable trigger and marker signals USB connectors for keyboard, mouse, and memory stick LXI class C compliance |
| Features | Parameters |
| Interfaces | IEEE 488.2, LAN (100BaseT), 3 × USB, 1 × USB slave, VGA |
| SMJ100A | 1403.4507.02Vector Signal Generator * Included Accessories: Power cable Quick Start Guide CD-ROM (with Operating and Service Manual) |
