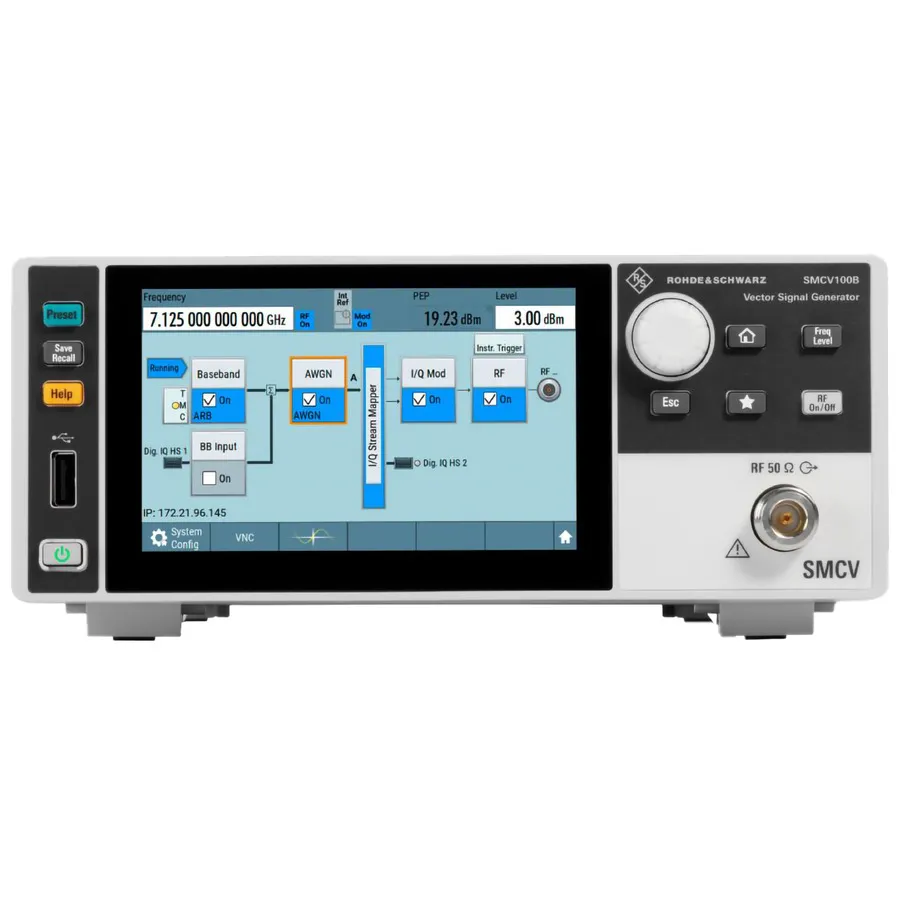

Rohde & Schwarz SMCV100BP3 Vector Signal Generator

Overview

The Rohde & Schwarz SMCV100B vector signal generator is a multistandard platform designed for automotive, broadcast, navigation, and wireless applications. This variant emphasizes broadcast signal generation with integrated support for AM/FM/RDS and DAB/T-DMB standards. The fully software-defined architecture provides flexibility without hardware modifications, making it suitable for both laboratory and production environments.

Key Features

• Frequency range from 8 kHz to 3 GHz with software-defined upgrade options
• Direct RF DAC concept for improved signal generation
• Integrated AM/FM/RDS broadcast standard support
• DAB/T-DMB digital broadcast standard support
• Full software-defined options without hardware installation requirements
• High output power up to +16 dBm
• 5-inch touchscreen interface
• Internal baseband signal generation with 64 Msample ARB and 60 MHz RF bandwidth

Applications

• AM/FM/RDS broadcast signal generation and testing
• DAB and T-DMB digital radio testing
• Automotive wireless testing
• Production and manufacturing signal verification
• Lab and field testing of broadcast receivers

Included Accessories

• SMCV100B Vector Signal Generator
• SMCVB-B103 Frequency Upgrade Option (8 kHz to 3 GHz)
• SMCVB-K155 AM/FM/RDS Broadcast Standard
• SMCVB-K156 DAB/T-DMB Digital Broadcast Standard
• SMCVB-K199 DAB/T-DMB Stream Library
• Power cable
• Quick Start Guide
