Rohde & Schwarz SMCV100BP2 Vector Signal Generator

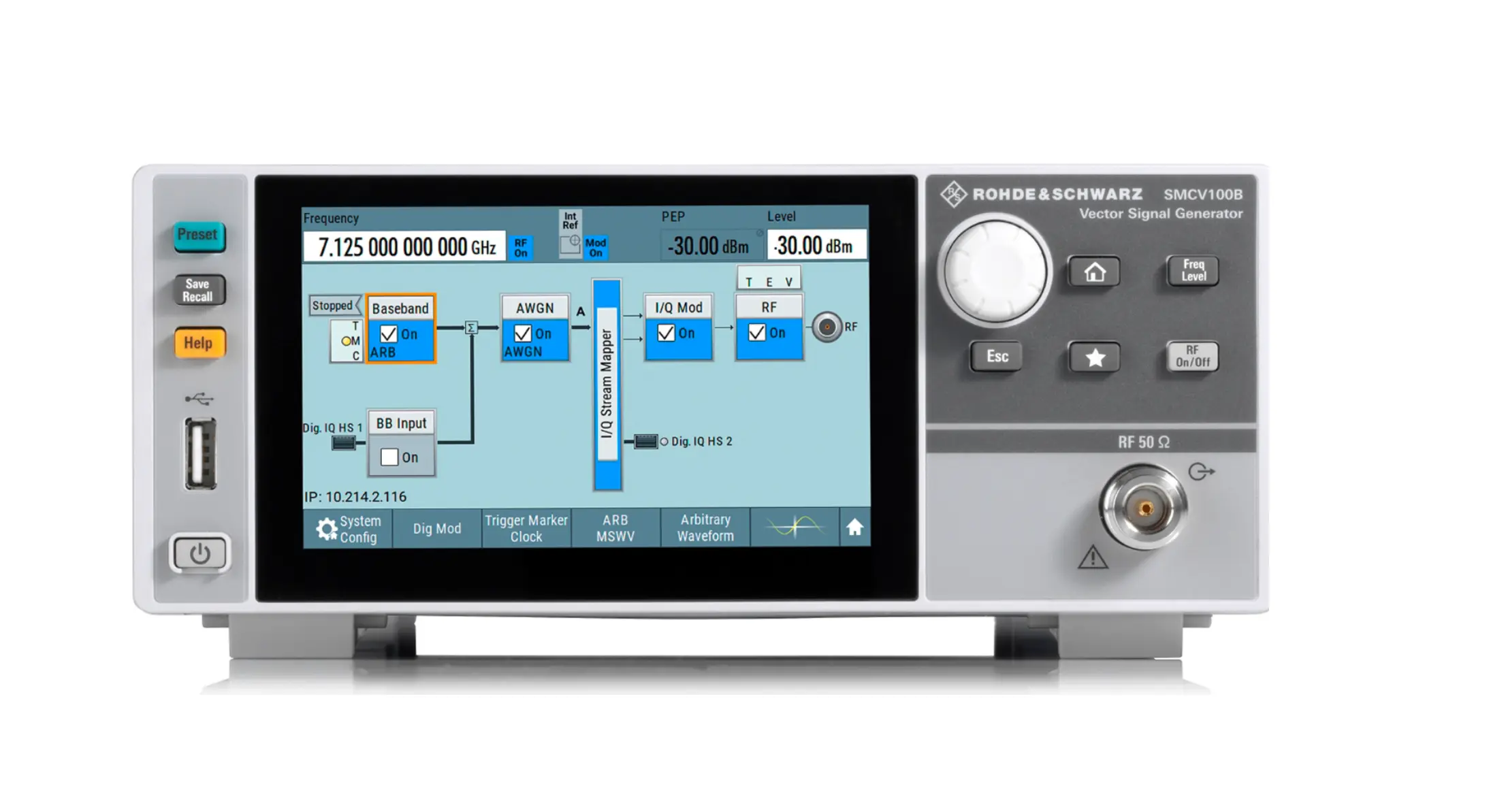

Rohde & Schwarz SMCV100BP2 multistandard vector signal generator with direct RF DAC, software-defined modulation, and 60 MHz bandwidth for broadcast and wireless testing.
Product details
| Model | SMCV100BP2 (3662.0344P03) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz SMCV100B vector signal generator is a multistandard platform designed for automotive, broadcast, navigation, and wireless applications. It features a direct RF DAC concept for RF signal generation that enables I/Q modulation and upconversion in the digital domain, eliminating I and Q imbalance errors and LO leakage found in conventional analog I/Q modulators. The fully software-defined architecture allows for flexible upgrade paths and supports a wide range of modulation standards and broadcast technologies.
Key Features
- Direct RF DAC concept for improved signal generation without analog I/Q imbalance
- Multi-standard platform for broadcast, navigation, cellular, and wireless applications
- Full software-defined options with 5-inch capacitive touchscreen display
- Frequency range from 4 kHz to 7.125 GHz with selectable upgrade options
- Modulation bandwidth 60 MHz standard, expandable up to 240 MHz
- High output power up to +25 dBm
- 64 Gbyte mSATA solid-state memory for I/Q sequence storage
- Internal baseband signal generation with ARB capability
Applications
- Automotive testing and signal generation
- Broadcast signal generation and compliance testing
- Navigation system testing (GPS, Galileo)
- Cellular and wireless device testing (3GPP, LTE, 5G)
- Production and manufacturing environments
- EMC testing with long I/Q sequence playback
Included Accessories
- SMCVB-B103 Frequency Upgrade (8 kHz to 3 GHz)
- SMCVB-K197 AM/FM/Phase Modulation (via Baseband)
- SMCVB-K198 Pulse Modulation (via Baseband)
- SMCVB-K199 Custom Digital Modulation
Specifications
| Features | Parameters |
| Operating Temperature Range | +5 °C to +45 °C |
| Storage Temperature Range | –20 °C to +70 °C |
| Damp Heat | +25 °C/+40 °C, 90 % rel. humidity, cyclic In line with EN 60068-2-30 |
| Operating Altitude | up to 4600 m |
| Vibration; Sinusoidal | 5 Hz to 55 Hz, 0.15 mm amplitude const., 55 Hz to 150 Hz, 0.5 g const., In line with EN 60068-2-6 |
| Vibration; Random | 10 Hz to 300 Hz, acceleration 1.2 g RMS In line with EN 60068-2-64 |
| Shock | 40 g shock spectrum In line with MIL-STD-810G, method 516.4, proc. I |
| Dimensions (W x H x D) | 222 mm × 97 mm × 366 mm (8.74 in × 3.82 in × 14.41 in) (½ 19", 2 HU) |
| Weight | 4.7 kg (10.36 lb) |
| Display | 5" color display with capacitive touch functionality |
