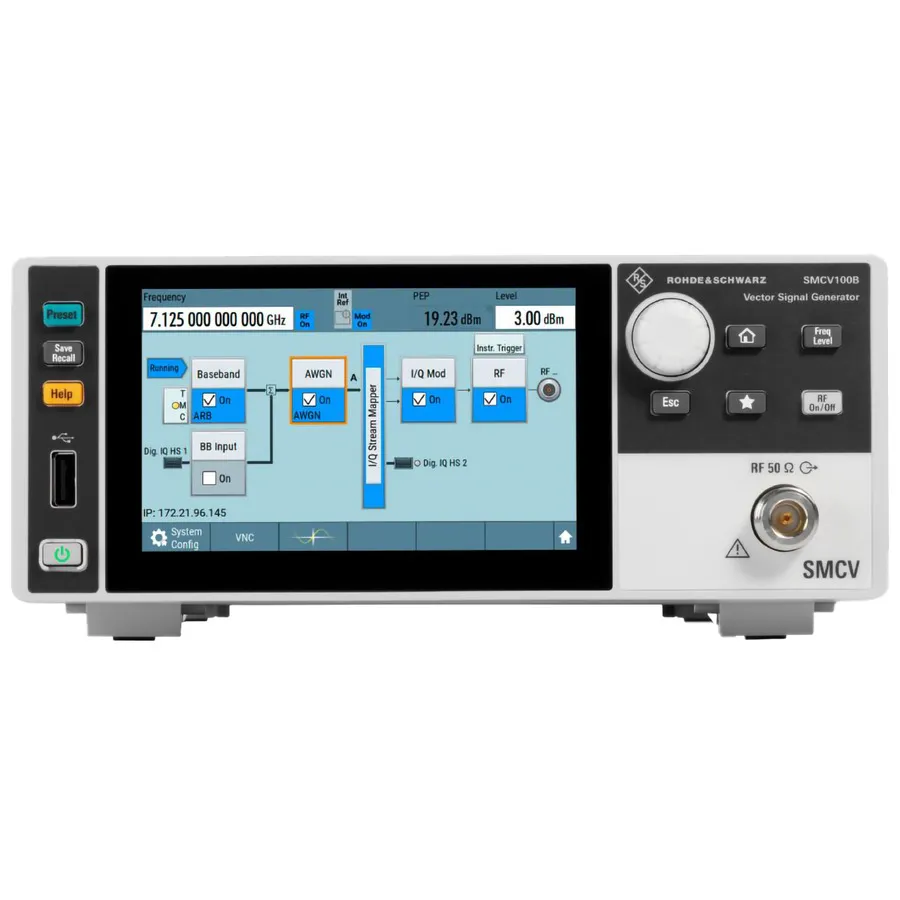

Rohde & Schwarz SMCV100BP2 Vector Signal Generator

Overview

The Rohde & Schwarz SMCV100B vector signal generator is a multistandard platform designed for automotive, broadcast, navigation, and wireless applications. It features a modern direct RF DAC concept that enables I/Q modulation and upconversion in the digital domain, eliminating the I and Q imbalance errors and LO leakage found in conventional analog I/Q modulators. The fully software-defined architecture allows for flexible upgrade paths without requiring hardware modifications.

Key Features

• Frequency range from 8 kHz to 3 GHz
• High output power up to +16 dBm
• Direct RF DAC concept for improved signal generation
• Full software-defined options for AM/FM/Phase modulation
• Playback of long I/Q sequences from solid state disk for EMC testing
• Internal baseband signal generation with 64 Msample ARB and 60 MHz RF bandwidth
• 5-inch touchscreen interface
• SCPI macro recorder for automation

Applications

• Automotive signal generation and testing
• Broadcast signal generation and verification
• Navigation system testing (GPS, Galileo)
• Cellular and wireless device testing
• 5G NR and NB-IoT testing
• EMC compliance testing with I/Q sequence playback

Included Accessories

• SMCV100B Vector Signal Generator
• SMCVB-B103 Frequency Upgrade Option (8 kHz to 3 GHz)
• SMCVB-K197 AM/FM/Phase Modulation (via Baseband)
• SMCVB-K198 Pulse Modulation (via Baseband)
• SMCVB-K199 Custom Digital Modulation
• Power cable
• Quick Start Guide
