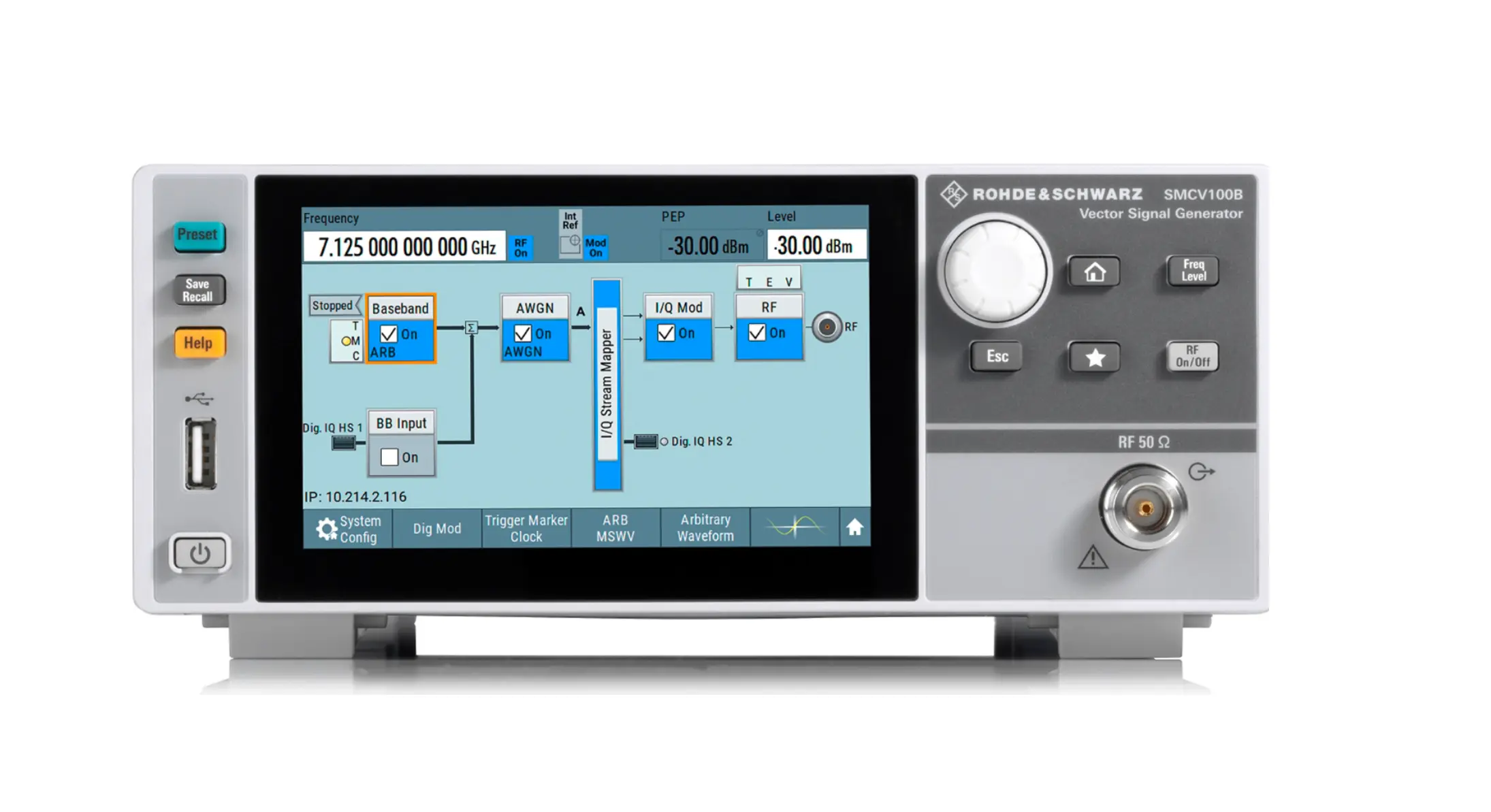

Rohde & Schwarz SMCV100B Vector Signal Generator
Request a quote
Rohde & Schwarz SMCV100B vector signal generator with direct RF DAC technology, covering 4 kHz to 7.125 GHz with full software-defined operation and output power to +25 dBm.
Product details
| Model | SMCV100B (1432.7000.02) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz SMCV100B vector signal generator features a direct RF DAC concept for RF signal generation. This concept enables I/Q modulation and upconversion in the digital domain, eliminating the I and Q imbalance errors and LO leakage associated with traditional analog I/Q modulators. The SMCV100B is fully software-defined with no hardware options required to obtain full instrument functionality.
Key Features
- 3 GHz / 6 GHz / 7.125 GHz models via frequency upgrade
- Multi-standard platform for broadcast, navigation, cellular and wireless applications
- Full software-defined vector signal generator with 5" touchscreen
- Modern RF signal generation concept from 4 kHz up to 7.125 GHz
- High output power up to +25 dBm
- Modulation bandwidth 60 MHz standard up to 240 MHz
Applications
- Broadcast and audio signal generation
- Navigation system testing
- Cellular and wireless device testing
- 5G NR and multi-standard signal development
Specifications
| Form Factor | Benchtop |
