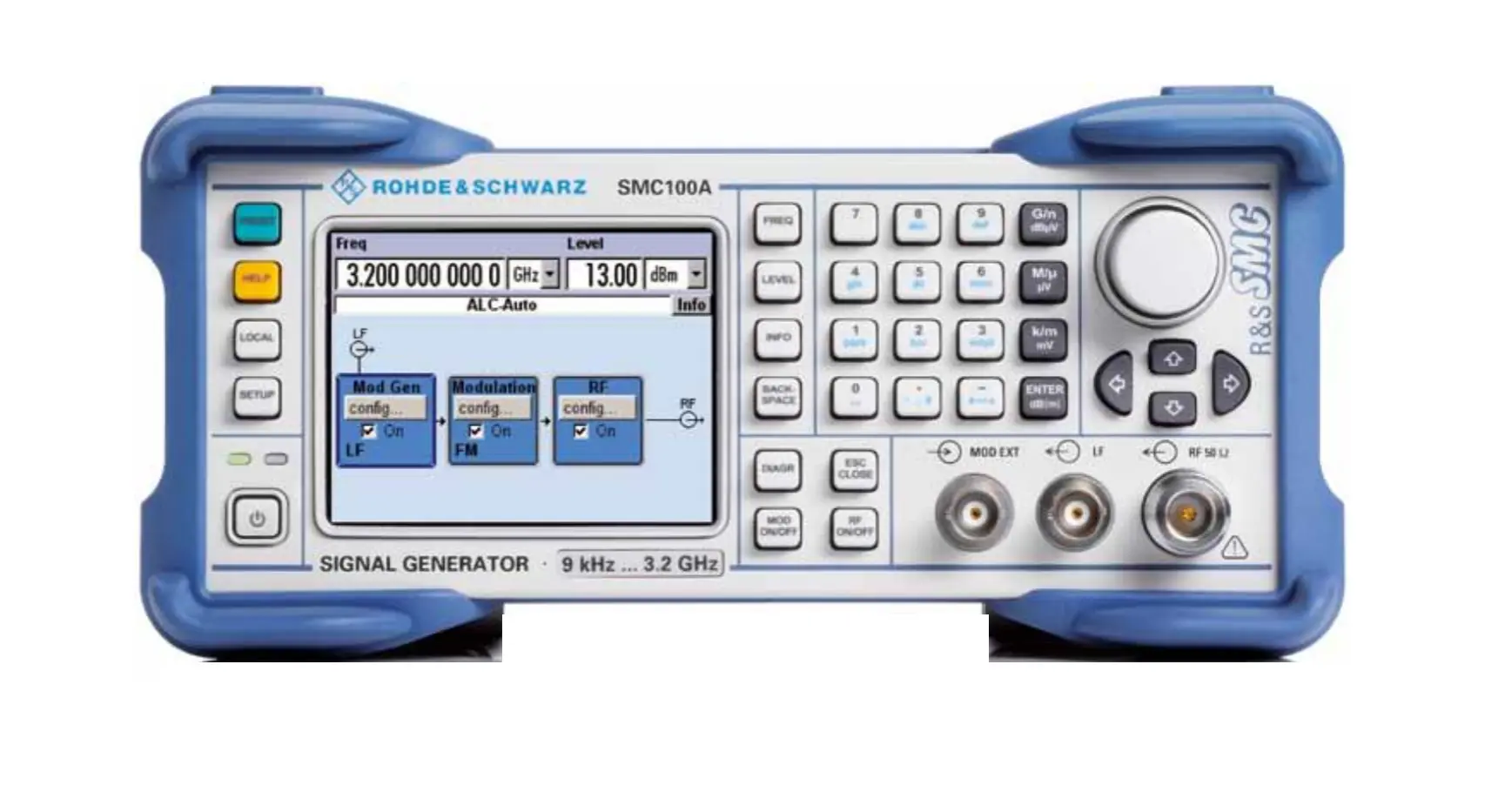

Rohde & Schwarz SMC100A RF Signal Generator

Overview

The Rohde & Schwarz SMC100A is a versatile RF signal generator designed for applications requiring outstanding signal quality at an attractive price point. With frequency coverage from 9 kHz to 1.1 GHz or 3.2 GHz and integrated analog modulation capabilities (AM/FM/ɸM/pulse), the SMC100A provides flexible signal generation for both laboratory testing and production environments.

Key Features

• Frequency range from 9 kHz to 1.1 GHz or 3.2 GHz
• Maximum output level > +17 dBm
• Integrated analog modulation modes: AM, FM, ɸM, and pulse
• Low SSB phase noise of –111 dBc (1 GHz, 20 kHz offset, 1 Hz bandwidth)
• Low wideband noise < –146 dBc (>1 MHz carrier offset, 1 Hz bandwidth)
• Low harmonic content < –72 dBc
• Frequency and level setting time < 5 ms
• Optional high-stability reference oscillator

Applications

• Laboratory testing and RF system characterization
• Production test environments
• Component and subsystem validation
• General-purpose RF signal generation
