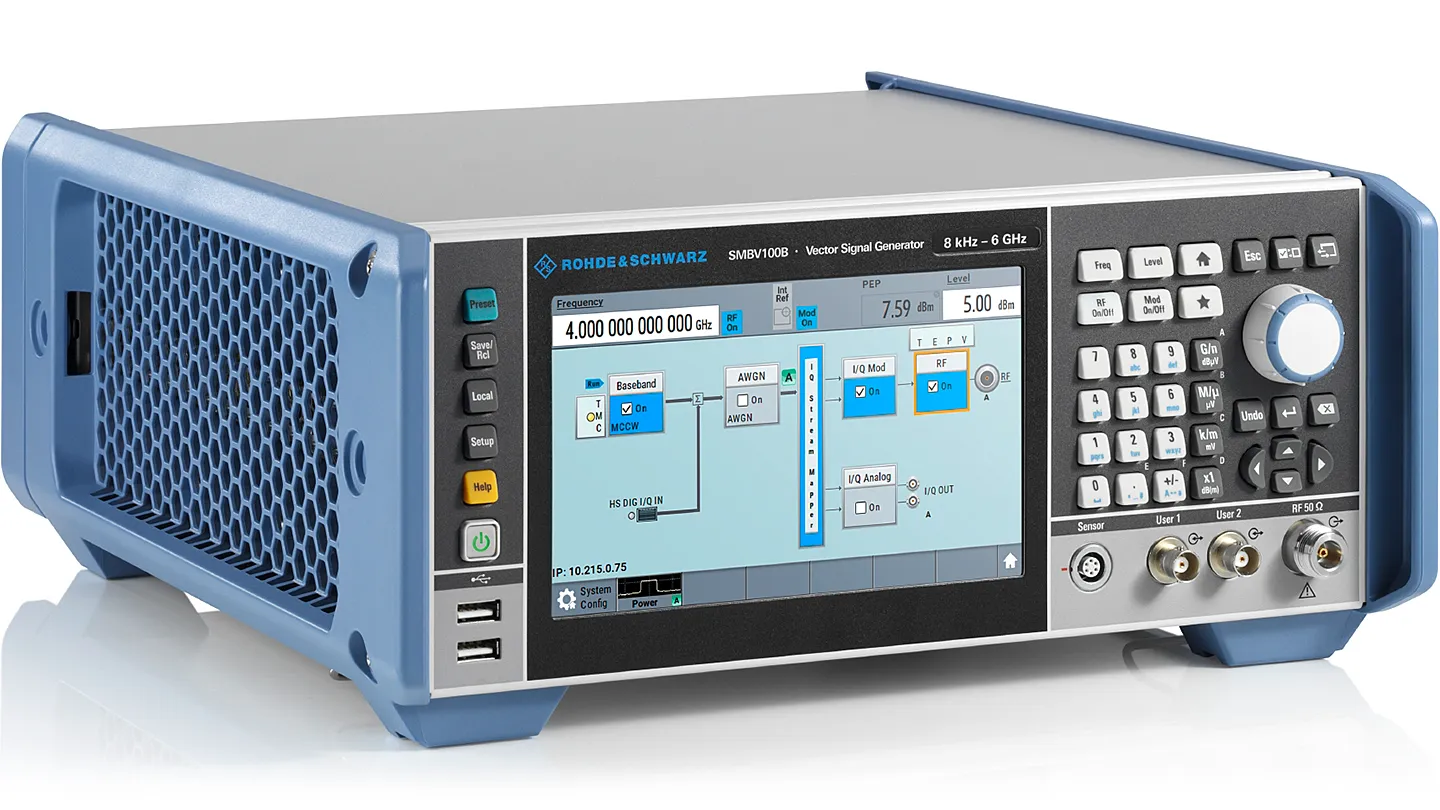

Rohde & Schwarz SMBV100B Vector Signal Generator
Request a quote
Rohde & Schwarz SMBV100B is a state-of-the-art vector signal generator with 8 kHz to 6 GHz frequency range, ultra-high output power, and support for 5G NR, LTE, and WLAN.
Product details
| Model | SMBV100B (1423.1003.02) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz SMBV100B is a state-of-the-art vector signal generator setting new standards in RF signal generation. With frequency coverage from 8 kHz to 6 GHz, ultra-high output power up to +34 dBm, and 500 MHz modulation bandwidth, the SMBV100B provides fully calibrated wideband signal generation with intuitive touchscreen operation. The instrument is optimized for receiver and component characterization with support for the latest digital communication standards including 5G NR, LTE, and WLAN.
Key Features
- Frequency range from 8 kHz to 3 GHz or 6 GHz
- Ultra-high output power up to +34 dBm
- 500 MHz modulation bandwidth with perfect accuracy
- Signal generation for digital standards including 5G NR, LTE, and WLAN
- Full-featured GNSS simulator with GPS, GLONASS, Galileo, BeiDou, and QZSS/SBAS
- Very low SSB phase noise < –134 dBc (1 GHz, 20 kHz offset)
- Optional OCXO reference oscillators for improved close-in phase noise
- 7-inch touchscreen for convenient operation
Applications
- 5G NR and LTE receiver testing and characterization
- WLAN and wireless component validation
- Receiver sensitivity and performance measurement
- GNSS receiver simulation and testing
- Production and research testing environments
Specifications
| Form Factor | Benchtop |
